| ENGINE BEARINGS | ||
 |

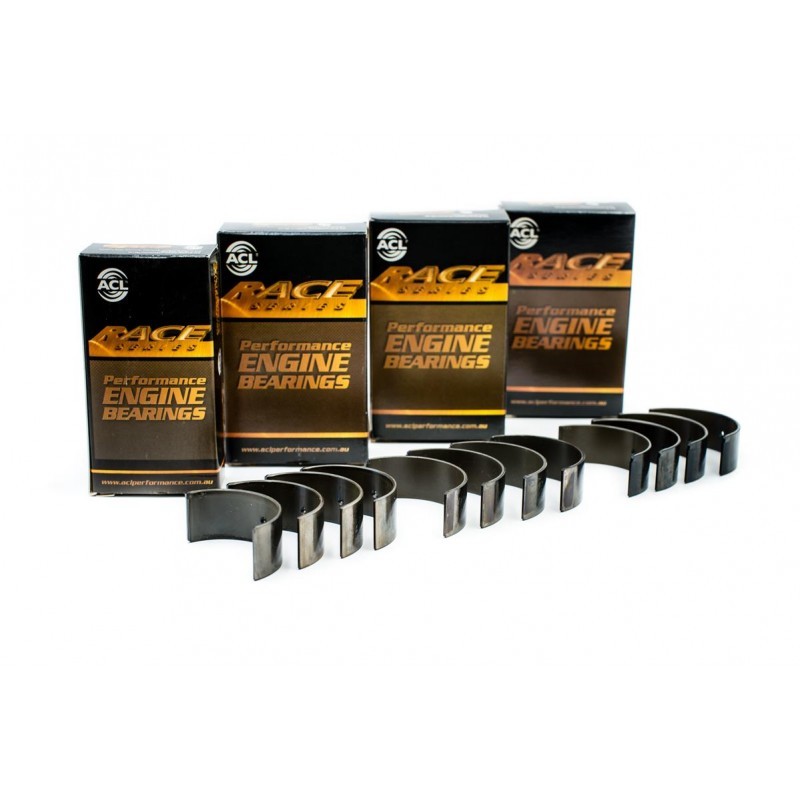

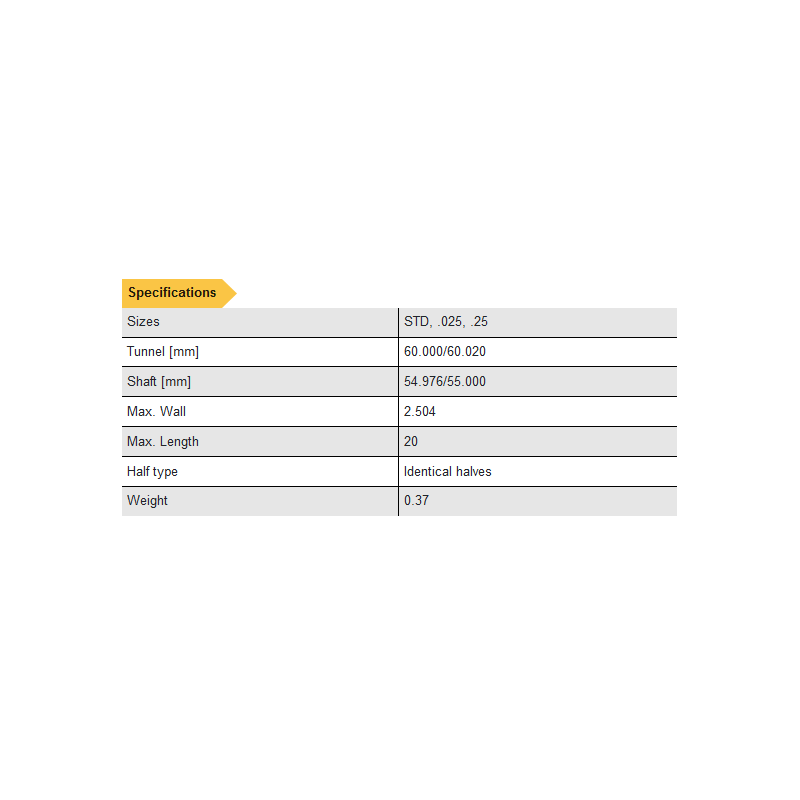

MAIN BEARING SET |
|
| Part# | ||
| 5M1913H |
5M1913HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.1644in / 54.976mm |
|
| Max Std Shaft Size |
2.1654in / 55mm |
|
| Min Std Tunnel Size |
2.3622in / 60mm |
|
| Max Std Tunnel Size |
2.363in / 60.02mm |
|
| Max Wall at Crown |
0.0986in / 2.504mm |
0.0981in /2.491mm |
| Max Overall Length |
0.7874in / 20mm |
|
| Notes | ||
|

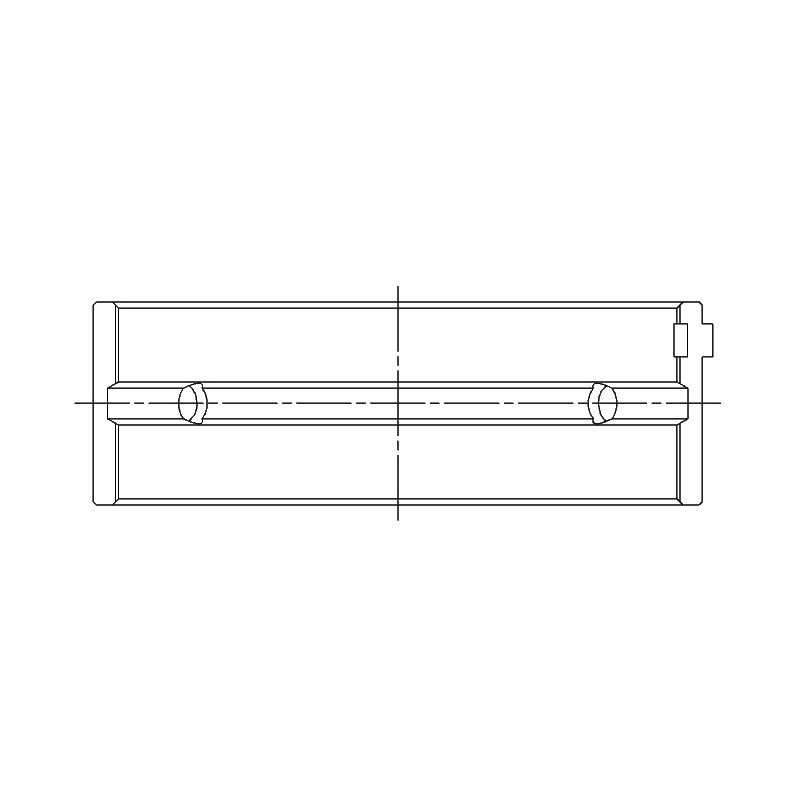

Diagram |
 |
|
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1912H |
4B1912HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.889in / 47.98mm |
|
| Max Std Shaft Size |
1.8898in / 48mm |
|
| Min Std Tunnel Size |
2.008in / 51.004mm |
|
| Max Std Tunnel Size |
2.0088in / 51.024mm |
|
| Max Wall at Crown |
0.0589in / 1.496mm |
0.0584in / 1.483mm |
| Max Overall Length |
0.7638in / 19.4mm |
|
| Notes | ||
|
Diagram |
 |
|
|
|||||||
| Quantity | 4 | ||||||
| Crankshaft | 48.001 / 47.981 | ||||||
| Housing | 51.003 / 51.024 | ||||||
| Max Wall | 1.496 | ||||||
| Max Length | 19.350 |
| Component | M5673-PR |
| Min Crankshaft Diameter | 2.164 inch / 54.98mm |
| Max Crankshaft Diameter | 2.165inch / 55.00mm |
| Min Housing Diameter | 2.362 inch / 60.00 mm |
| Max Housing Diameter | 2.363 inch / 60.02 mm |
| Bearing Length | 0.787 inch / 19.99 mm |
| Max Wall Thickness | 0.000 inch / 0.00 mm |
Part number TW140AM
King Racing thrust washers kit
Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 (D16A, D16B, D16W, D16Y, D16Z, A18A, ES, ET, A20A, B16A, B17A1, B18A1, B18B1, B18B2, B18A, B20A SOHC, B18C1, B18C2, B18C5, B18C7, B20A, B21A, B21A1 DOHC, B20B, B20Z, D17A, D17Z, K20A3, K20A2, K20Z1, K24A, K24Z1, H22A, H22Z, F23A, F23Z)
| ENGINE BEARINGS | ||
|
MAIN BEARING SET |
|
| Part# | ||
| 5M1913H |
5M1913HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.1644in / 54.976mm |
|
| Max Std Shaft Size |
2.1654in / 55mm |
|
| Min Std Tunnel Size |
2.3622in / 60mm |
|
| Max Std Tunnel Size |
2.363in / 60.02mm |
|
| Max Wall at Crown |
0.0986in / 2.504mm |
0.0981in /2.491mm |
| Max Overall Length |
0.7874in / 20mm |
|
| Notes | ||
|
Diagram |
|
|
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1912H |
4B1912HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.889in / 47.98mm |
|
| Max Std Shaft Size |
1.8898in / 48mm |
|
| Min Std Tunnel Size |
2.008in / 51.004mm |
|
| Max Std Tunnel Size |
2.0088in / 51.024mm |
|
| Max Wall at Crown |
0.0589in / 1.496mm |
0.0584in / 1.483mm |
| Max Overall Length |
0.7638in / 19.4mm |
|
| Notes | ||
|
Diagram |
|
|
|
Product detailed specification |
|
|
Model number |
HEVI-1030D |
|
Head diameter |
31.00mm |
|
Stem diameter |
5.45mm |
|
Length |
108.80mm |
|
Material |
Inconel |
|
Fits for |
Honda: |
