Alfa Romeo 1.6 1.8 2.0 ACL Race connecting rod bearings 4B1110H-STD

Part number 4B1110H-STD

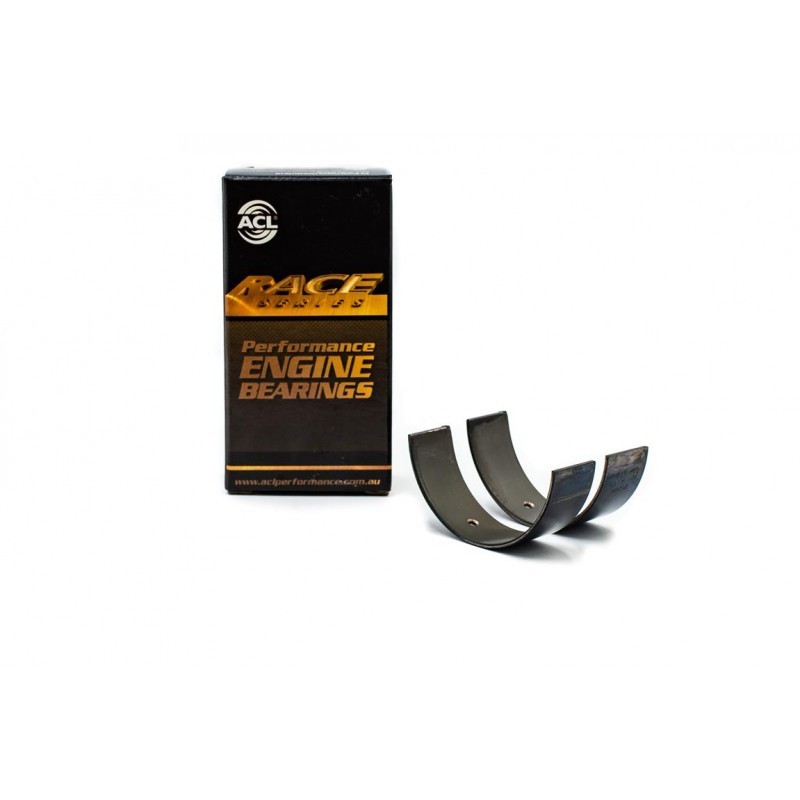

ACL Race Series connecting rod bearings
Alfa Romeo - 1.6 1.8 2.0

99,00 €

Доступность:1 шт.

Вам также может понравиться

Alfa Romeo 1.3 1.6 1.8 2.0 ACL Race main bearings 5M1112H-STD

ENGINE BEARINGS
	CON ROD BEARING SET	MAIN BEARING SET
	Part#	Part#
		5M1112H
Sizes		STD, .025, .25, .50
Oil Clearance		Standard
Half Type		Upper & Lower
Material		Tri-Metal
Min Std Shaft Size		2.3606" / 59.959mm
Max Std Shaft Size		2.3611" / 59.972mm
Min Std Tunnel Size		2.5062" / 63.657mm
Max Std Tunnel Size		2.5069" / 63.675mm
Max Wall at Crown		0.0720" / 1.829mm
Max Overall Length		0.723" / 18.36mm # 2, 4 (1113H) 1.005 " / 25.52mm # 1, 3, 5 (1112H)
Notes		Set contains 6 x 1112H and 4 x 1113H shells.

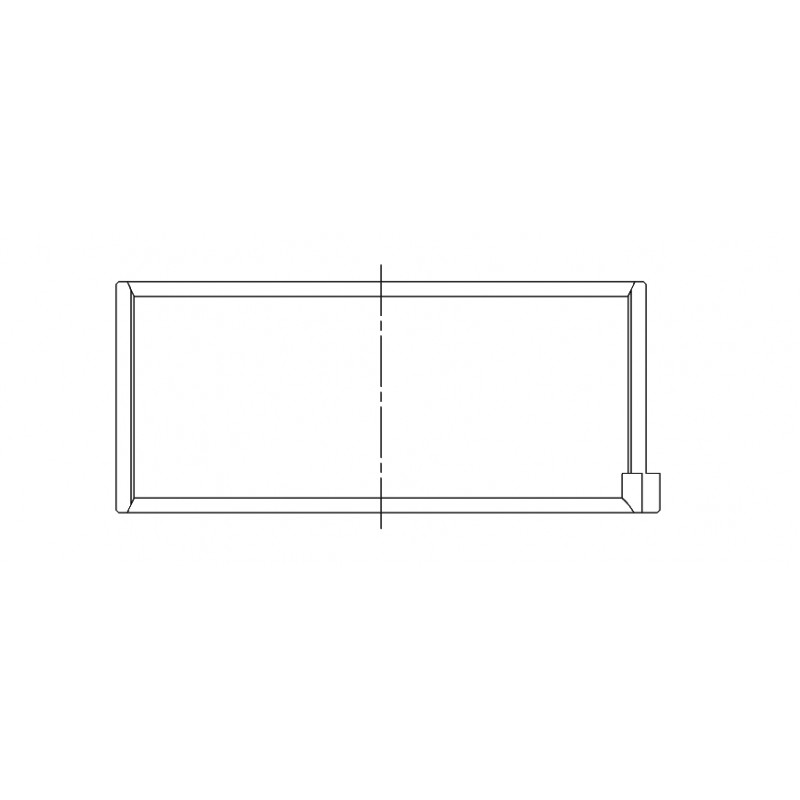

Diagram (Top View)

Engines Alfa Romeo - 1.3 1.6 1.8 2.0

139,00 €

ACL plain bearing measuring tape/flexigauge AG-1 (Green)

1. Remove the bearing cap, wipe the journal and bearing shell clear of oil.
2. Place a piece of Flexigauge across the bearing at the crown (see Figure 1).
3. Install the bearing cap and using a Torque Wrench tighten the bolts to the correct tension.
4. DO NOT REVOLVE THE SHAFT OR BEARINGS.
5. Remove bearing cap. The Flexigauge will be adhering either to the bearing or shaft.
6. Compare the width of the flattened Flexigauge with the graduation of the envelope. The figure within the graduations indicates the clearance in thousandths of an inch of millimetres, depending on which side of the envelope is used. (See Figure 2).
7. Taper is indicated when Flexigauge is wider at one end than the other, the amount of taper being the difference between the readings. The widest part of the Flexigauge represents the area of least clearance. “Barrelling” of the shaft when the Flexigauge is wider in the centre of the bearing.

16,00 €
