Part number 6B1490HX-STD (+0.001" extra clearance)

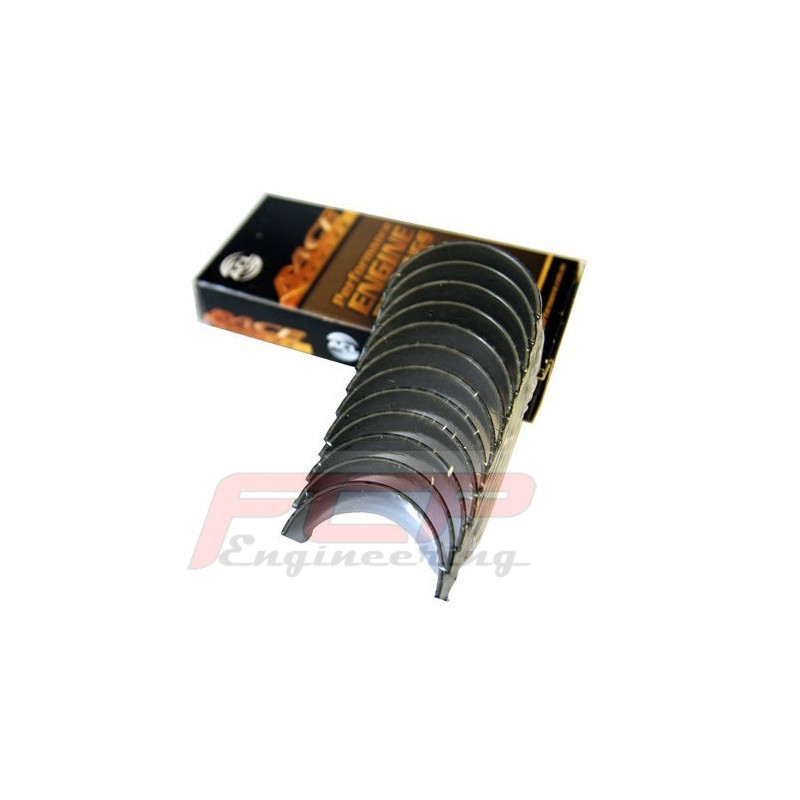

ACL Race Series connecting rod bearings
BMW - 2.0 2.3 2.5 2.7 2.8 3.0 (M20B20, M20B25, M20B27, M50B20, M50B25, M50B27, M52B20, M52B25, M52B28, M54B25, M54B22, M54B30)

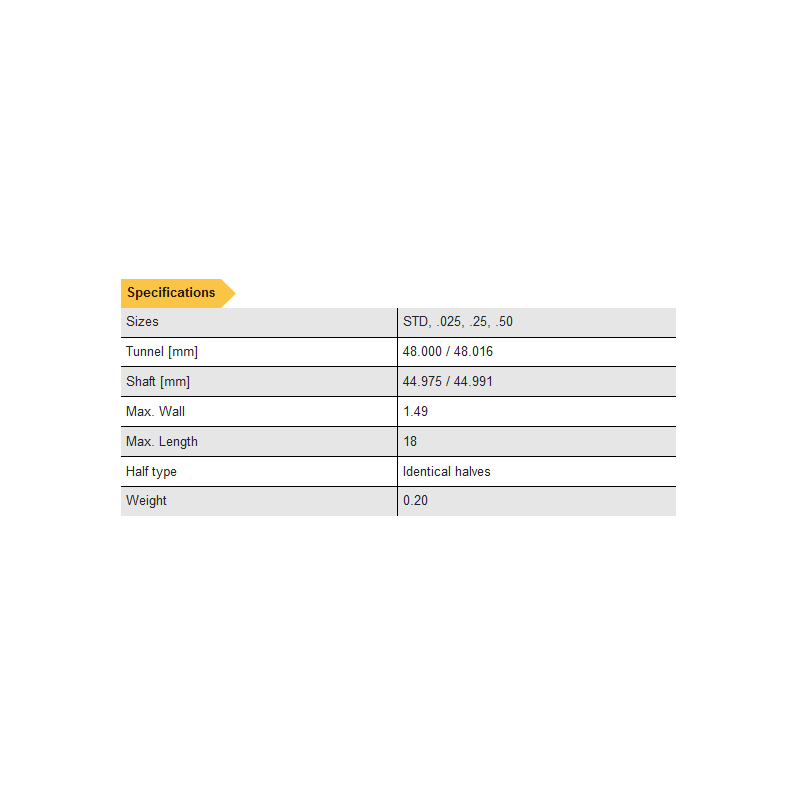

| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 6B1490H |
6B1490HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7707in / 44.975mm |
|
| Max Std Shaft Size |
1.7713in / 44.991mm |
|
| Min Std Tunnel Size |
1.8898in / 48.000mm |
|
| Max Std Tunnel Size |
1.8904in / 48.016mm |
|
| Max Wall at Crown |
0.0588in / 1.493mm |
0.0583in / 1.481mm |
| Max Overall Length |
0.709in / 18.00mm |
|
| Notes | ||
|

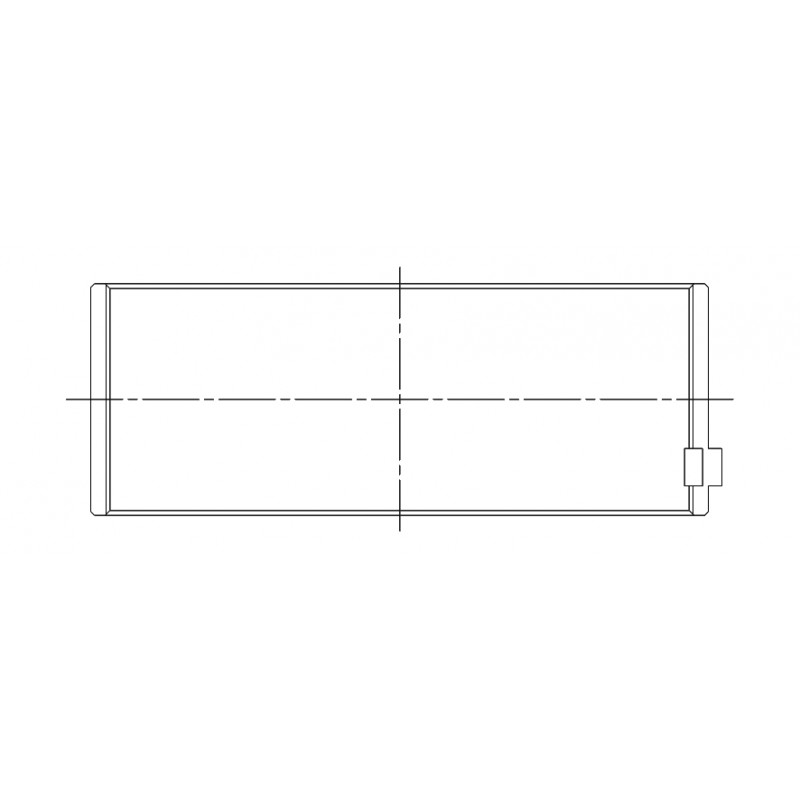

Diagram |
 |
|
