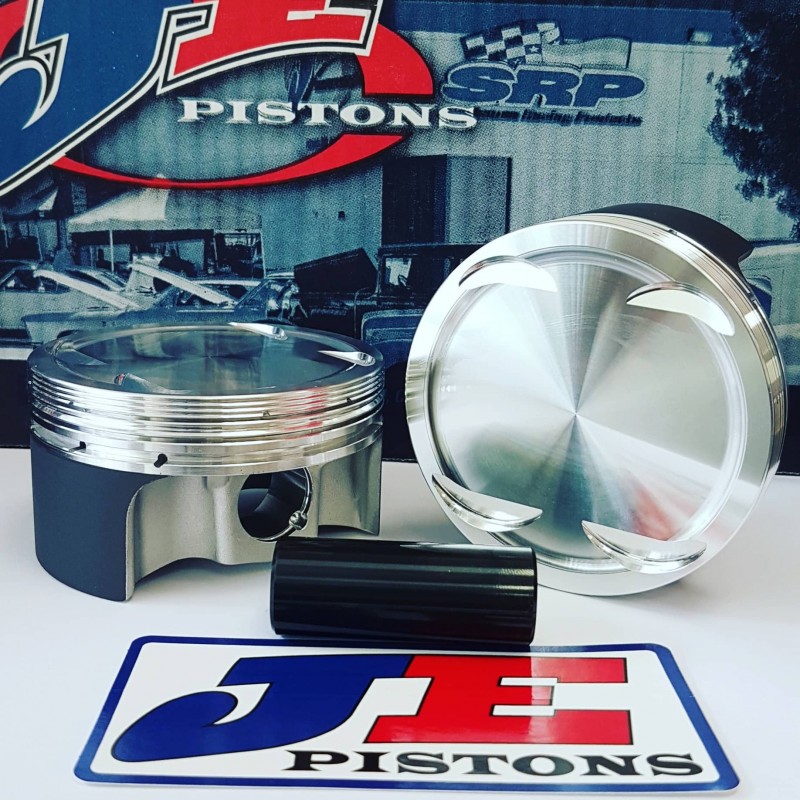

Product detailed specification |
|
Bore size |
92.00mm |
Stroke |
82.70mm |
JE Pistons compression ratio (CR) |
8.5:1 |
OEM compression ratio (CR) |
10.0:1 |
Dome volume (CC) |
-5.01cm3 |
Compression height (CH) |
31.00mm |
Pin diameter |
22mm |
Features |
Accepts Turbo and Nitrous; FSR skirt |
Fits for |
BMW M3 E46 3.2 S54B32 |
Подробная спецификация продукта
Производитель: FCP Engineering
Модель: FCPRHB1435222
Профиль:профиль H
С на С: 143mm
Диаметр отверстия нижней головки: 52mm
Диаметр пальца: 22mm
Количество: 8 шт., 16 шт. ARP2000 3/8" болты
Made of: forged steel 4340 EN24er
Максимальная рекомендуемая мощность: 1000HP (8 cylinder)
Сделано из:4340 EN24er cтал: 9000RPM
BMW E38, E39 - 4.0 4.4 V8 (M60B40, M62B44)
Athena Racing 330 series Cooper Ring cylinder head gasket set.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
Part number: 330026R + 330027R
Gasket thickness: 2.00mm
Bore size: 93.60mm
Part number starting with 330 |
|
Athena advantages |
|
Reinforced material |
Asbestos free composite raw material OE approved |
Stainless steel ring (AISI304) |
Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required |
Silicon beading |
Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages |
