Teilenummer 4B1606H-0.50

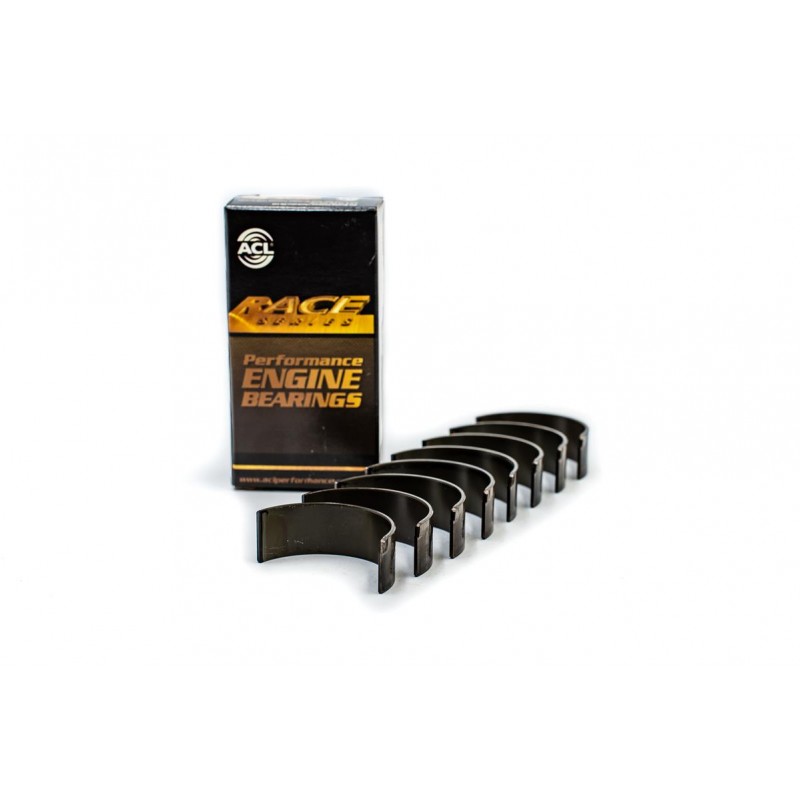

ACL Race Series Pleuellager Satz
Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo Motoren, 1983-2003)

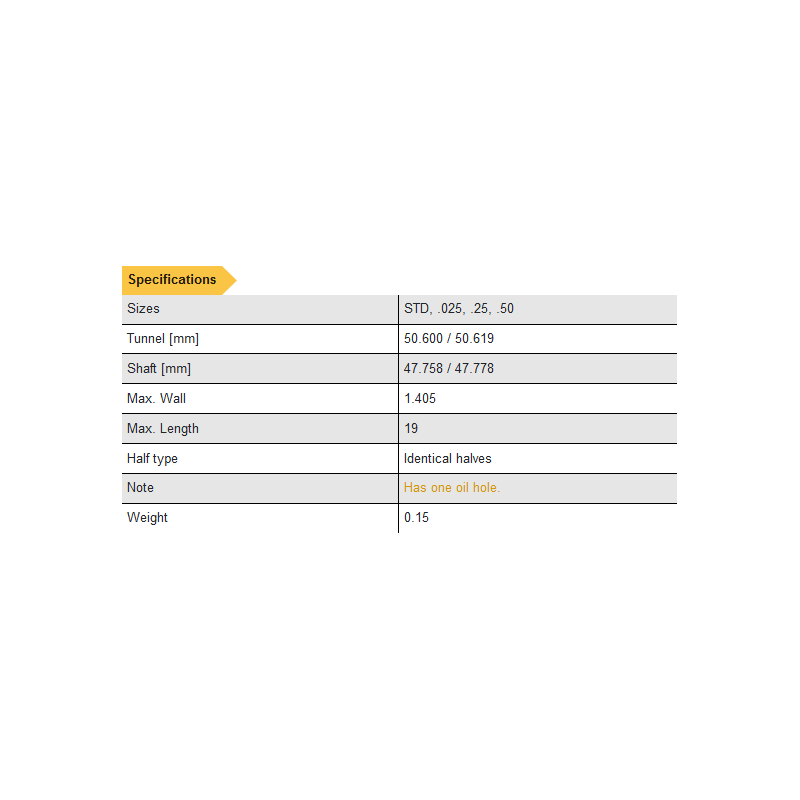

| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 4B1606H |
4B1606HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
|

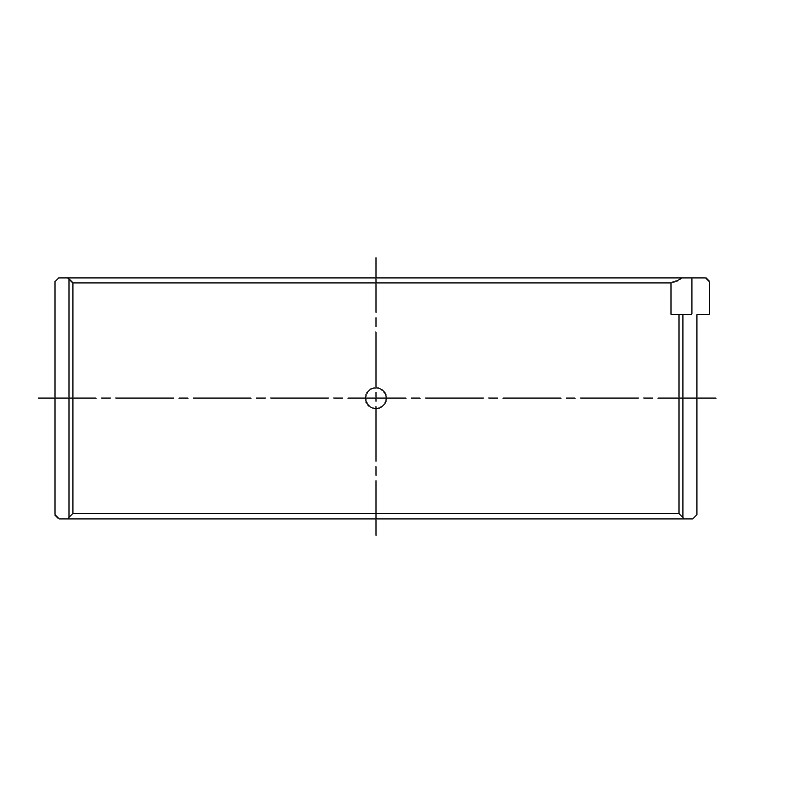

Diagram |
 |
|
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1606H |
4B1606HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
|
Diagram |
|
|
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1606H |
4B1606HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
|
Diagram |
|
|
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1606H |
4B1606HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
|
Diagram |
|
|
Engines Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications)
