Teilenummer 2T1644-STD

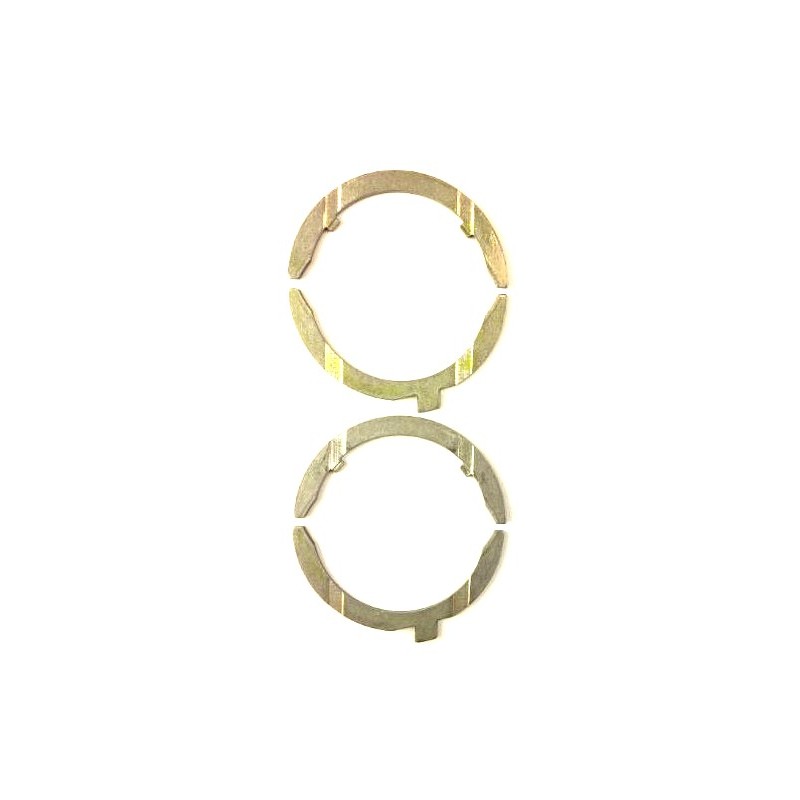

ACL Anlaufscheibes
Audi 4 zylinder 1.6 1.8 2.0
A3, A4, A6, TT, 80, 90, 100 (1983-2001)
Teilenummer 2T1644-STD
ACL Anlaufscheiben
Audi / VW - 1.6 1.8 2.0 (1983-2001)
| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M1644H |
5M1644HX |
|
| Sizes | STD, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-metal | |
| Min Std Shaft Size | 2.1243in / 53.958mm | |
| Max Std Shaft Size | 2.1251in / 53.978mm | |
| Min Std Tunnel Size | 2.3228in / 59.000mm | |
| Max Std Tunnel Size | 2.3236in / 59.019mm | |
| Max Wall at Crown | 0.0985in / 2.502mm | 0.0980in / 2.489mm |
| Max Overall Length | 0.728in / 18.49mm | |
| Notes | Set contain 6 x 1648H and 4 x 1644H shells. Use 1648H shell in #4 position as upper and lower. | |
|
Diagram |
|
|
