Teilenummer FCPRHVWTSI14450619

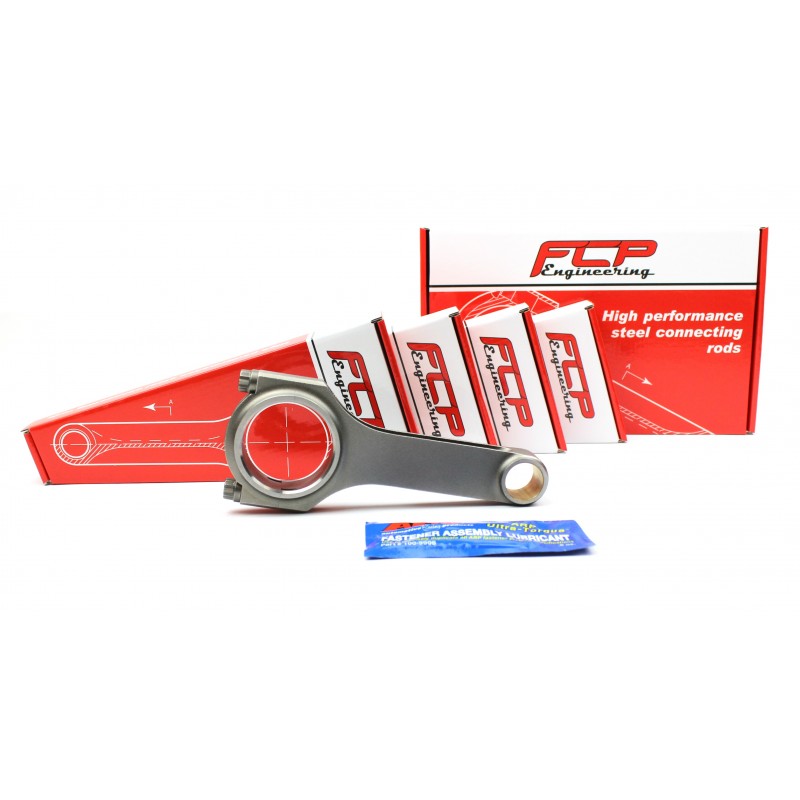

FCP Engineering H-Schaft Stahlpleuel Kit 144mm mit 19mm Kolbenbolzen
AUDI / VW - 1.4 16V TSI (EA211 bis 2014)
Detailierte Productinformation
Hersteller: FCP Engineering
Model: FCPRHVWTSI14450619
Profil: H-Schaft
C bis C: 144mm
Großer End Durchmesser: 50.6mm
Kleiner End Durchmesser: 19mm
Gemacht aus: Schmiedestahl 4340 EN24er
Quantität: 4 Stk., 8 Stk. ARP2000 5/16" Pleuelschreuben
Pleuel gut für: 600HP (4 Kolben) und 9000RPM
AUDI / VW - 1.4 16V TSI (EA211)
| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 4B1606H |
4B1606HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
|
Diagram |
 |
|
Engines Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications)
|
Product detailed specification |
|
|
Bore size |
76.50mm |
|
Stroke |
75.60mm |
|
Wiseco compression ratio (CR) |
10.0:1 |
|
OEM compression ratio (CR) |
10.0:1 |
|
Dome volume (CC) |
-8.4cm3 |
|
Compression height (CH) |
29.11mm |
|
Pin diameter |
19mm |
|
Features |
Accepts Turbo and Nitrous, Round piston skirt |
|
Fits for |
VAG - 1.4 16V TSI EA211 |
|
Product detailed specification |
|
|
Bore size |
77.00mm |
|
Stroke |
75.60mm |
|
Wiseco compression ratio (CR) |
10.0:1 |
|
OEM compression ratio (CR) |
10.0:1 |
|
Dome volume (CC) |
-8.4cm3 |
|
Compression height (CH) |
29.11mm |
|
Pin diameter |
19mm |
|
Features |
Accepts Turbo and Nitrous, Round piston skirt |
|
Fits for |
VAG - 1.4 16V TSI EA211 |
