Teilenummer HIVN-200F (STD) Street applications

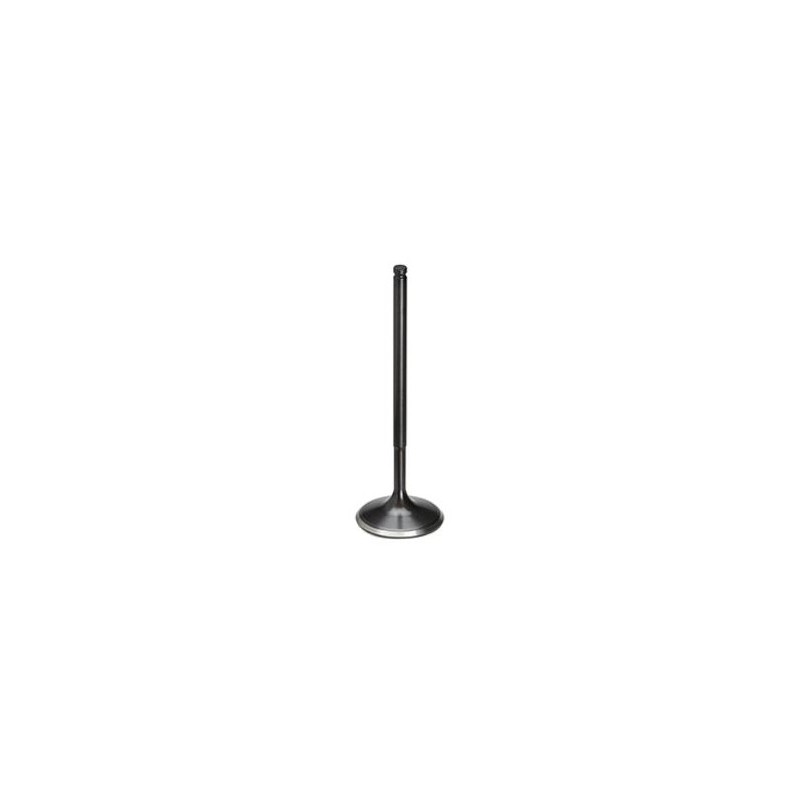

Supertech schwarz nitriert Einlassventil
Honda - 1.6 1.7 1.8 (B16A, B17A, B18C)
|
Product detailed specification |
|
|
Model number |
HIVN-200F |
|
Head diameter |
33.00mm |
|
Stem diameter |
5.48mm |
|
Length |
102.50mm |
|
Material |
Black nitrited stainless steel |
|
Fits for |
Honda B16A B17A B18C |
|
Product detailed specification |
|
|
Model number |
HEVN-200F |
|
Head diameter |
28.00mm |
|
Stem diameter |
5.45mm |
|
Length |
102.50mm |
|
Material |
Black nitrited stainless steel |
|
Fits for |
Honda B16A B17A B18C |
|
Product detailed specification |
|
|
Model number |
HEVI-1000 |
|
Head diameter |
28.00mm |
|
Stem diameter |
5.45mm |
|
Length |
102.50mm |
|
Material |
Inconel |
|
Fits for |
Honda B16A B17A B18C |
|
Product detailed specification |
|
|
Model number |
HIVN-100F |
|
Head diameter |
33.00mm |
|
Stem diameter |
5.48mm |
|
Length |
102.50mm |
|
Material |
Black nitrited stainless steel |
|
Fits for |
Honda B16A B17A B18C |
Spring data:
Seat pressure 70lbs@33.50mm
Max lift. 14.00mm
Rate 10.00lbs/mm
Spring coil bind 19.50mm
Outer spring outer diameter: 29.05mm
Outer spring inner diameter: 21.85mm
Inner spring outer diameter: 20.50mm
Inner spring inner diameter: 15.50mm
Set includes:
Dual springs: 16 pcs. SPR-H1002D
Titanium retainers: 16 pcs. RET-K20A2/T2
Seat locator: OEM seats or SEAT-H1002D (sold separately)
