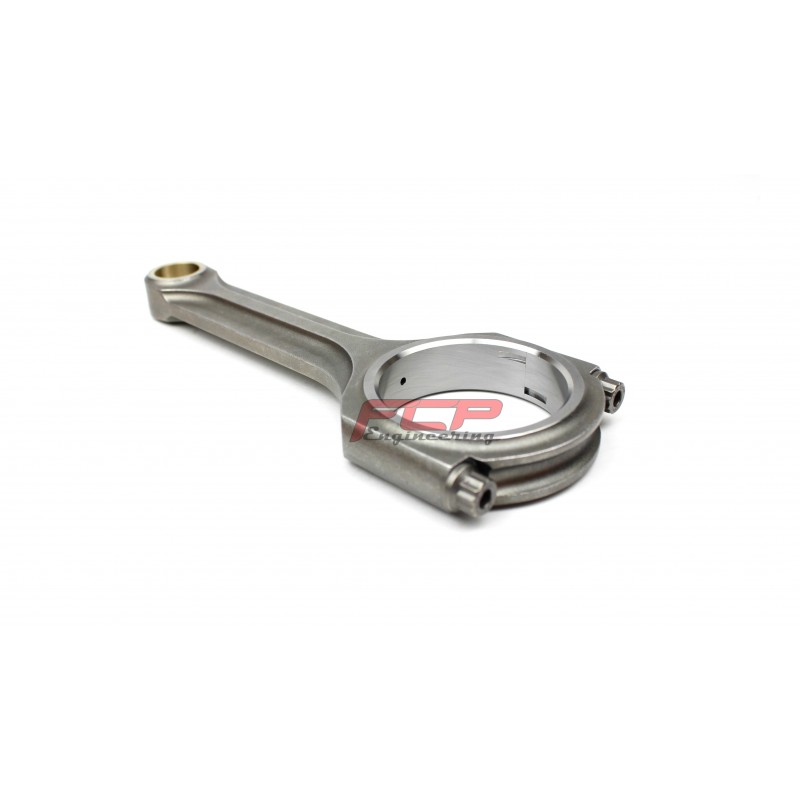

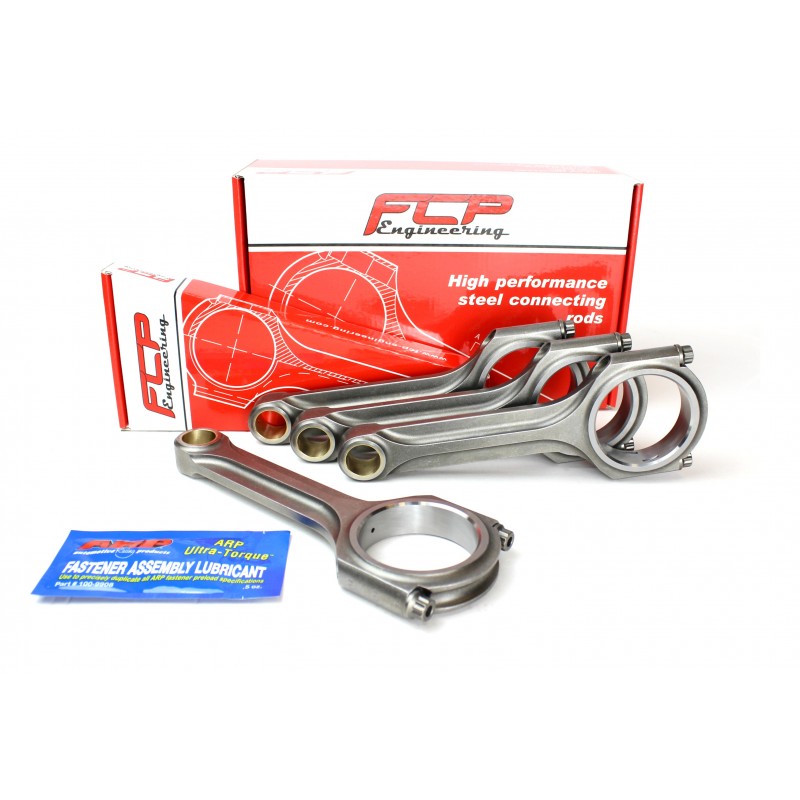

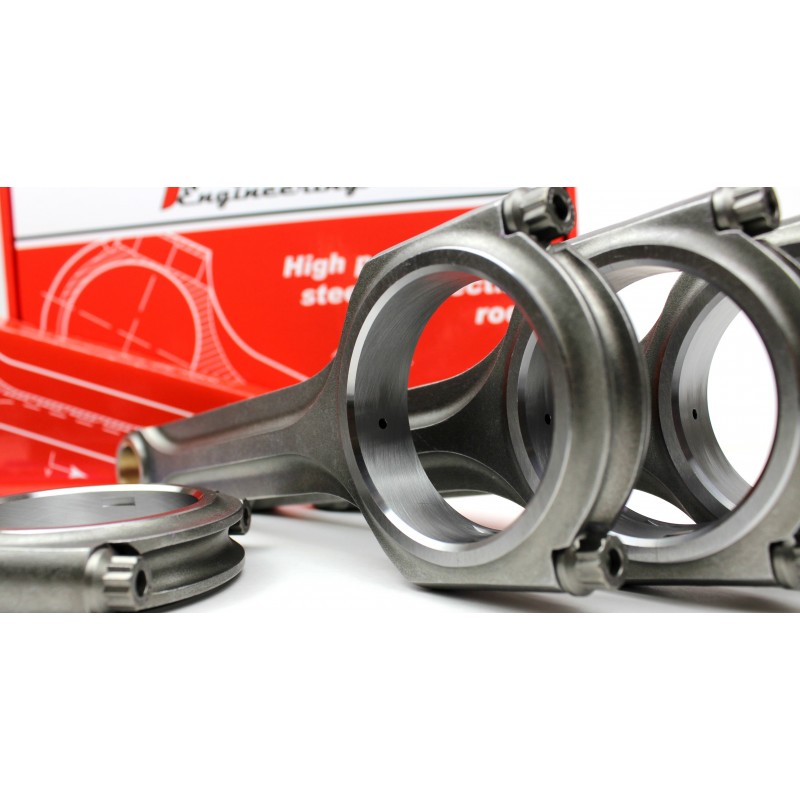

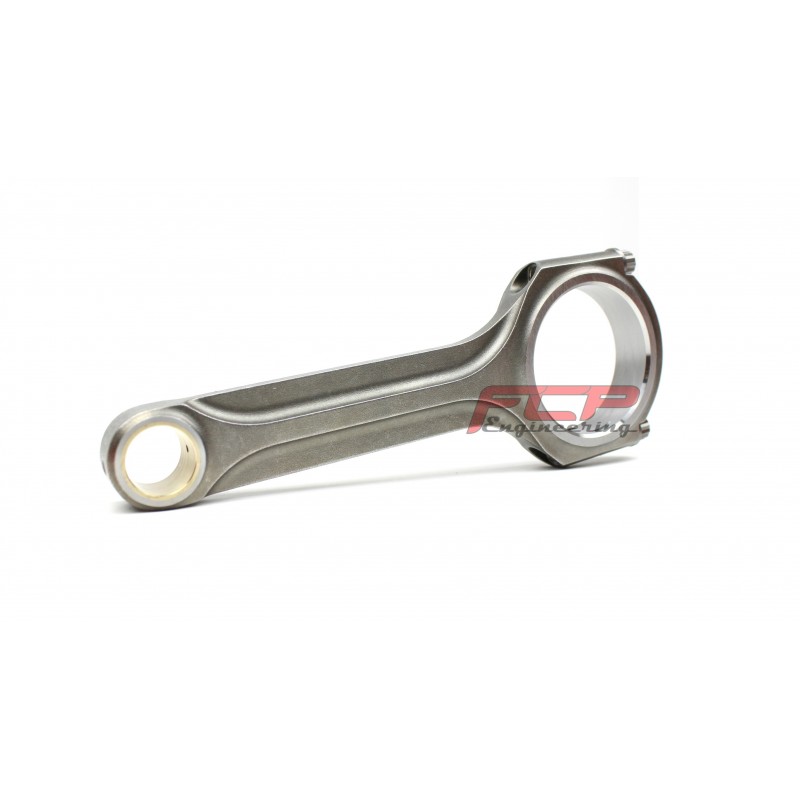

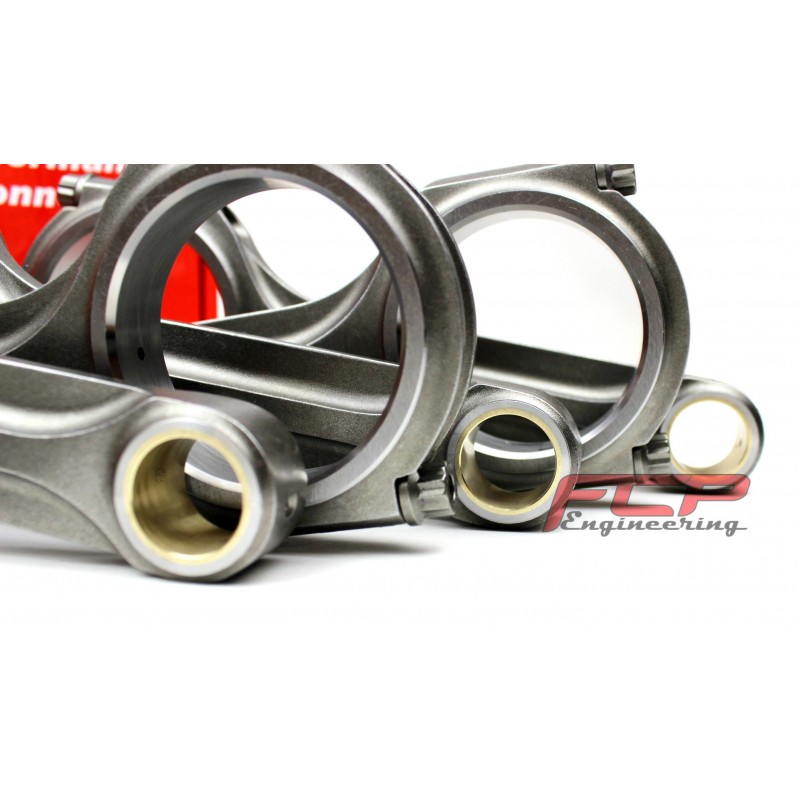

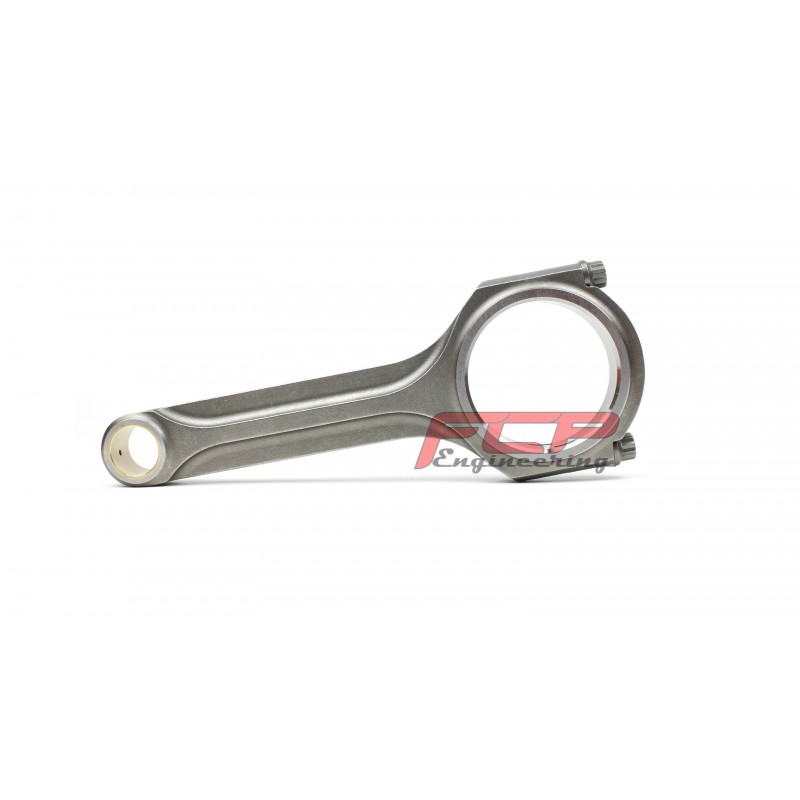

Lancia Delta, Fiat Coupe 2.0 16V Turbo FCP X-Schaft Stahlpleuel 145mm

Lancia Delta 2.0 8V-16V Turbo FCP H-Schaft Stahlpleuel Kit 145mm

Lancia Delta, Fiat Coupe 2.0 16V Turbo FCP H-Schaft Stahlpleuel Kit 145mm

Detailierte Productinformation

Hersteller: FCP Engineering
Model: FCPRHL1455422
Profil: H-Schaft
C bis C: 145mm
Großer End Durchmesser: 53.91mm
Kleiner End Durchmesser: 22mm
Gemacht aus: Schmiedestahl 4340 EN24er
Quantität: 4 Stk., 8 Stk. ARP2000 3/8" Pleuelschreuben
Pleuel gut für: 600HP (4 Zylinder) und 9000RPM
Lancia Delta - 2.0 8V, 2.0 16V Turbo (835, 836)
Fiat Coupe - 2.0 16V Turbo (175 A1.000)

439,00 €

Lancia Delta 2.0 16V Turbo Athena MLS Dichtung 87x1.6mm 338397R

Lancia Delta Integrale 2.0 16V Turbo Athena MLS Zylinderkopfdichtung 87x1.6mm...

Athena Racing 338-Serie Mehrlagenstahl (MLS) Zylinderkopfdichtung.
Athena MLS Dichtungen sind speziell für die Anforderungen der heutigen Rennmotoren entwerfen und bieten verbesserte Abdichtung gegen OEM Produkt.
Dichtungen sind aus 2-5 Sichten hochwertigem Edelstahl und Federstahl hergestellt.
Teilenummer: 338397R
Dichtungsdicke: 1.60mm
Zylinderdurchmesser: 87.00mm

Teilenummer beginnt 338
Athena Vorteile
Optimierte Radius Prägeform	Die runde Form der Prägung erhöht Besiegelung auf Zylinderbohrung, Öl- und Kühlwasserkanäle und und verbessert der Rückfederung Stärke
Fortschrittliche Stoppertechnik	Der Stand der Technik erhöht den Dichtungsdruck um den Zylinder. Höchste Dichteigenschaften bei Hochleistungsmotoren
Beschichtungstechnik	Entworfen und konstruiert von Athena die spezielle Beschichtung auf Stahloberflächen aufgebracht, verbessert die Temperaturbeständigkeit und die Zuverlässigkeit der Kopfdichtung

190,00 €

Audi/VW AIVN-1103S Standard 1.8/1.8T/2.4/2.7T/2.8/3.0 5V einlassventil

Lancia 2.0 16V Turbo Supertech Einlassventil LIVN-1001 STD

Product detailed specification
Model number	LIVN-1001
Head diameter	34.40mm
Stem diameter	6.98mm
Length	128.80mm
Material	Black nitrited stainless steel
Fits for	Lancia 2.0 16V Turbo

29,00 €

Audi/VW AEVI-1103S Standard 1.8/1.8T/2.4/2.7T/2.8/3.0 5V auslassventil

Lancia 2.0 16V Turbo Supertech Inconel Auslassventil LEVI-1001 STD

Product detailed specification
Model number	LEVI-1001
Head diameter	28.40mm
Stem diameter	6.97mm
Length	126.00mm
Material	Inconel
Fits for	Lancia 2.0 16V Turbo

42,00 €

Lancia Delta Integrale 2.0 16V Athena Cooper Ring Zylinderkopfdichtung...

Athena Racing 330-Serie Cooper Ring Zylinderkopfdichtung.
Für spezifische Hochpferdestärken Motorleistungen erheblich durch den Einsatz Athena Cooper Ring Dichtungen verbessert werden, die mit INOX Stahlring geliefert werden. Diese Technologie bietet gegenüber herkömmlichen Feuerring Lösungen.
Cooper Ring sind Übermaß (auch passt für übergroße Bohrungen).
Teilenummer: 330039R
Dichtungsdicke: 1.8mm
Zylinderdurchmesser: 85.50mm

Teilenummer beginnt 330
Athena Vorteile
Verstärktes Material	OE genehmigt Asbestfreie Verbund Rohstof
Edelstahlringen (AISI304)	Einzelne Edelstahlringe gewährleisten maximale Besiegelung um die Zylinderbohrungen, unter extremen Bedingungen, auch mit dem NOS-System und/oder Turbo-Aufladung, wenn die MLS Dichtung unfähig abgedichtet Brennkammer arbeitet. Zylinderkopf und Motorblock benötigt keine speziellen Behandlungen.
Silikon Beading	Silikon Beading wird auf kritische Bereiche angewendet zu verbessern Abdichten um alle Kühlwasser- und Ölkanäle.

210,00 €

Fiat / Lancia Integrale 2.0 16V Wiseco Schmiedekolben CR 8.5 84.5mm KE219M845

Product detailed specification
Bore size	84.50mm
Stroke	90.00mm
Wiseco compression ratio (CR)	8.5:1
OEM compression ratio (CR)	8.0:1
Dome volume (CC)	-10cm³
Compression height (CH)	38.94mm
Pin diameter	22mm
Features	Accepts Turbo and Nitrous; Full Round Skirt
Fits for	Lancia Delta HF Integrale / Fiat Coupe turbo 16V 2.0 16V (HF Integrale 16V)

Wiseco ArmorGlide skirt coating is a dry film lubricant applied to the piston skirt. This coating helps reduce friction, improving performance, and will also help quiet the piston in the cylinder bore. This coating is permanently applied, and is not a break in coating, it is on the piston for the life of the part.

829,00 €

Fiat / Lancia Integrale 2.0 16V Wiseco Schmiedekolben CR 8.5 85mm KE219M85

Product detailed specification
Bore size	85.00mm
Stroke	90.00mm
Wiseco compression ratio (CR)	8.5:1
OEM compression ratio (CR)	8.0:1
Dome volume (CC)	-10cm³
Compression height (CH)	38.94mm
Pin diameter	22mm
Features	Accepts Turbo and Nitrous; Full Round Skirt
Fits for	Lancia Delta HF Integrale / Fiat Coupe turbo 16V 2.0 16V (HF Integrale 16V)

Wiseco ArmorGlide skirt coating is a dry film lubricant applied to the piston skirt. This coating helps reduce friction, improving performance, and will also help quiet the piston in the cylinder bore. This coating is permanently applied, and is not a break in coating, it is on the piston for the life of the part.

829,00 €

Fiat / Lancia Integrale 2.0 16V Wiseco Schmiedekolben CR 8.5 85.5mm KE219M855

Product detailed specification
Bore size	85.50mm
Stroke	90.00mm
Wiseco compression ratio (CR)	8.5:1
OEM compression ratio (CR)	8.0:1
Dome volume (CC)	-10cm³
Compression height (CH)	38.94mm
Pin diameter	22mm
Features	Accepts Turbo and Nitrous; Full Round Skirt
Fits for	Lancia Delta HF Integrale / Fiat Coupe turbo 16V 2.0 16V (HF Integrale 16V)

Wiseco ArmorGlide skirt coating is a dry film lubricant applied to the piston skirt. This coating helps reduce friction, improving performance, and will also help quiet the piston in the cylinder bore. This coating is permanently applied, and is not a break in coating, it is on the piston for the life of the part.

829,00 €

Lancia Delta Integrale 2.0 16V Turbo HF JE pistons Schmiedekolben 84.40mm CR...

Product detailed specification
Bore size	84.40mm
Stroke	90.00mm
JE pistons compression ratio (CR)	8.0:1
OEM compression ratio (CR)	8.0:1
Dome volume (CC)	-25.30cm³
Compression height (CH)	39.65mm
Pin diameter	22mm
Fits for	Lancia Delta Integrale - 2.0 16V Turbo (HF)

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

899,00 €

Lancia Delta Integrale 2.0 HF ACL Race Series Pleuellager Satz 4B2904H

ENGINE BEARINGS
	CON ROD BEARING SET		MAIN BEARING SET
	Part#		Part#
	4B2904H	4B2904HX	5M2908H	5M2908HX
Sizes	STD, .025, .25	STD	STD, .025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra	Standard	+ 0.001" Extra
Half Type	Identical Halves		Upper & Lower
Material	Tri-metal Hardened steel backs		Tri-Metal
Min Std Shaft Size	1.9995in / 50.787 mm		2.0862 in / 52.991 mm
Max Std Shaft Size	2.0003in / 50.807 mm		2.0866 in / 53.000 mm
Min Std Tunnel Size	2.1219 in / 53.897 mm		2.2330 in / 56.717 mm
Max Std Tunnel Size	2.1226 in / 53.913 mm		2.2337 in / 56.735 mm
Max Wall at Crown	0.0605in / 1.536 mm	0.0600in / 1.523 mm	0.0726 in / 1.843 mm	0.0720 in / 1.830 mm
Max Overall Length	0.768 in / 19.50 mm		0.817 in / 20.75 mm (2908H/HX) 0.955 in / 24.25 mm (2909H/HX)
Notes	-		-
Diagram (Top View)			2908H & HX - Positions 1,2,4,5 2909H & HX - Position 3
THRUSTWASHER SET
Part#		Material
Sizes		Notes	-

89,00 €

Lancia Delta Integrale 2.0 HF ACL Race Series Hauptlager 5M2908H

179,00 €

Cometic Lancia / Fiat Delta / Tempra 8V-16V MLS Zylinderkopf Dichtung...

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements

130,00 €

Cometic Lancia / Fiat Delta / Tempra 8V-16V MLS Zylinderkopf Dichtung...

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements

169,00 €

Lancia Delta Integrale 2.0 HF ACL Race Series Pleuellager Satz 4B2904HX

89,00 €

Lancia Delta Integrale 2.0 HF ACL Race Series Pleuellager Satz 4B2904H-0.25

ENGINE BEARINGS
	CON ROD BEARING SET		MAIN BEARING SET
	Part#		Part#
	4B2904H	4B2904HX	5M2908H	5M2908HX
Sizes	STD, .025, .25	STD	STD, .025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra	Standard	+ 0.001" Extra
Half Type	Identical Halves		Upper & Lower
Material	Tri-metal Hardened steel backs		Tri-Metal
Min Std Shaft Size	1.9995in / 50.787 mm		2.0862 in / 52.991 mm
Max Std Shaft Size	2.0003in / 50.807 mm		2.0866 in / 53.000 mm
Min Std Tunnel Size	2.1219 in / 53.897 mm		2.2330 in / 56.717 mm
Max Std Tunnel Size	2.1226 in / 53.913 mm		2.2337 in / 56.735 mm
Max Wall at Crown	0.0605in / 1.536 mm	0.0600in / 1.523 mm	0.0726 in / 1.843 mm	0.0720 in / 1.830 mm
Max Overall Length	0.768 in / 19.50 mm		0.817 in / 20.75 mm (2908H/HX) 0.955 in / 24.25 mm (2909H/HX)
Notes	-		-
Diagram (Top View)			2908H & HX - Positions 1,2,4,5 2909H & HX - Position 3
THRUSTWASHER SET
Part#		Material
Sizes		Notes	-

89,00 €
