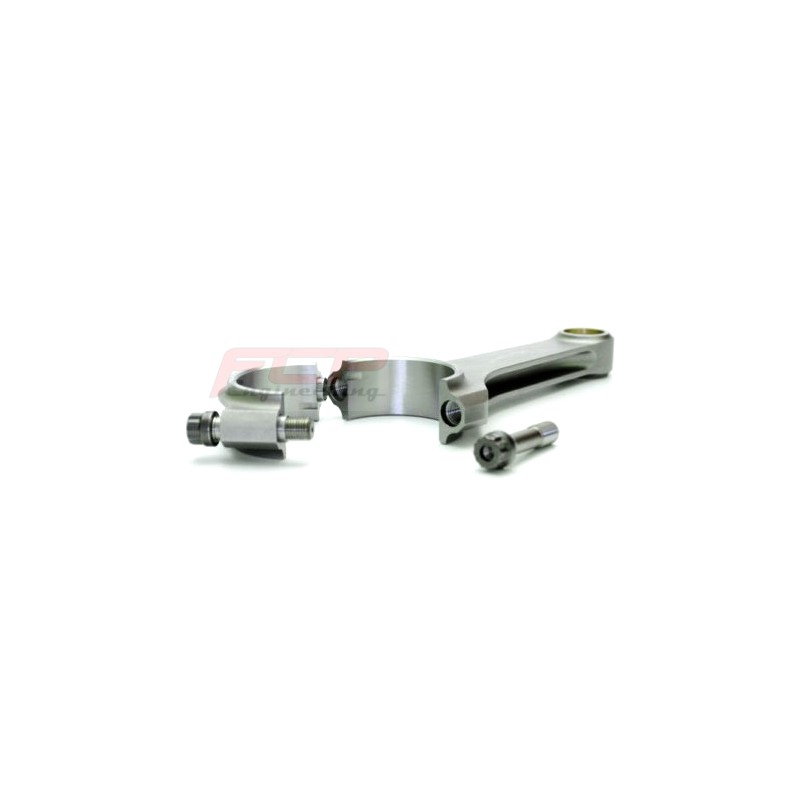

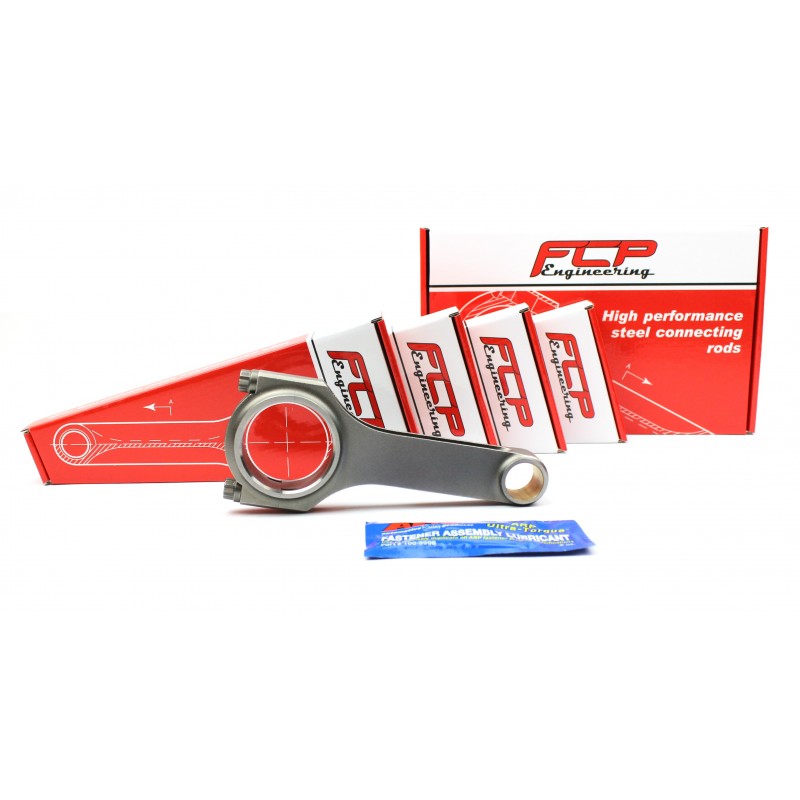

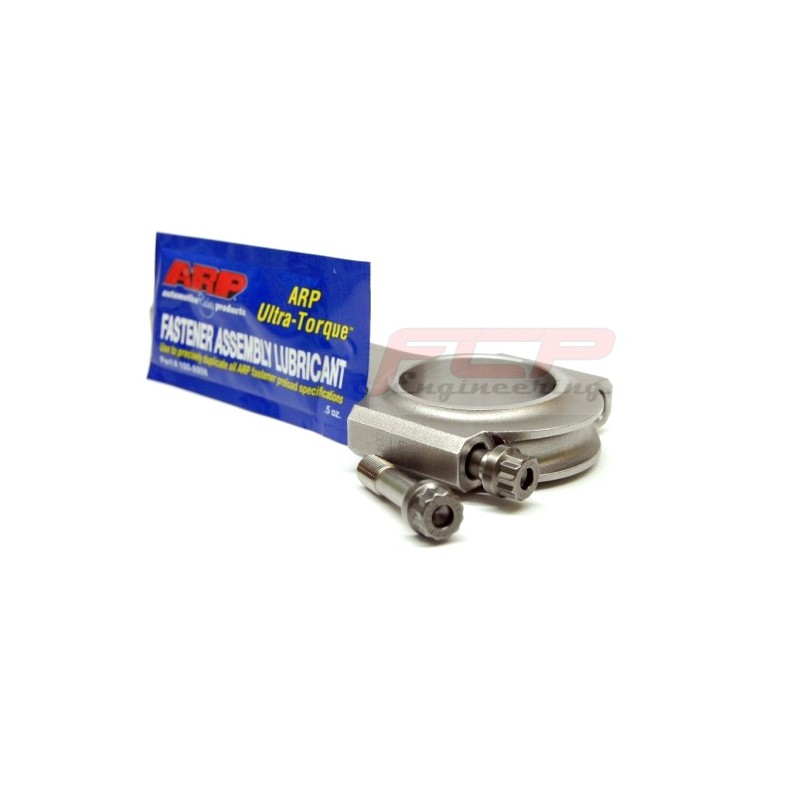

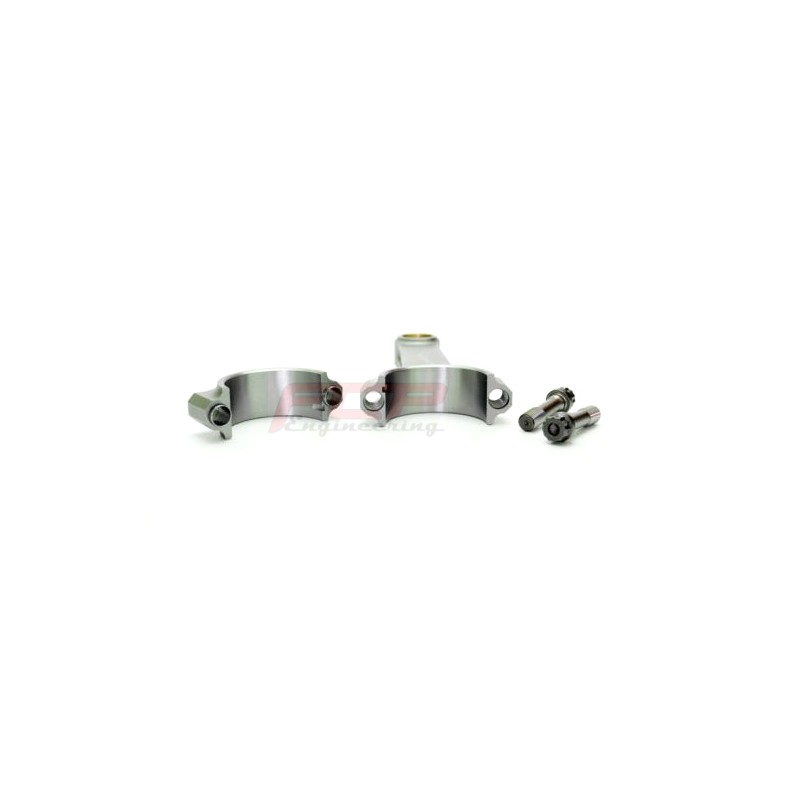

Honda S2000 F20C FCP H-Schaft Schmiedestahl Pleuel Kit 153mm

Teilenummer FCPRHH1535123
FCP Engineering H-Schaft schmiedestahl Pleuel Kit (4 Stk.) 153mm
Honda S2000 - 2.0 16V (F20C)

439,00 €

Verfügbarkeit:2 Artikel

Information

Manufacturer: FCP Engineering
Model: FCPRHH1535123
Profile: H-beam
C to C: 153mm
Big end diameter: 51mm
Pin diameter: 23mm
Quantity: 4 pcs., 8 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 600HP (4 cylinder)
Advertised RPM rating: 9000RPM
Honda S2000 - 2.0 16V (F20C)
