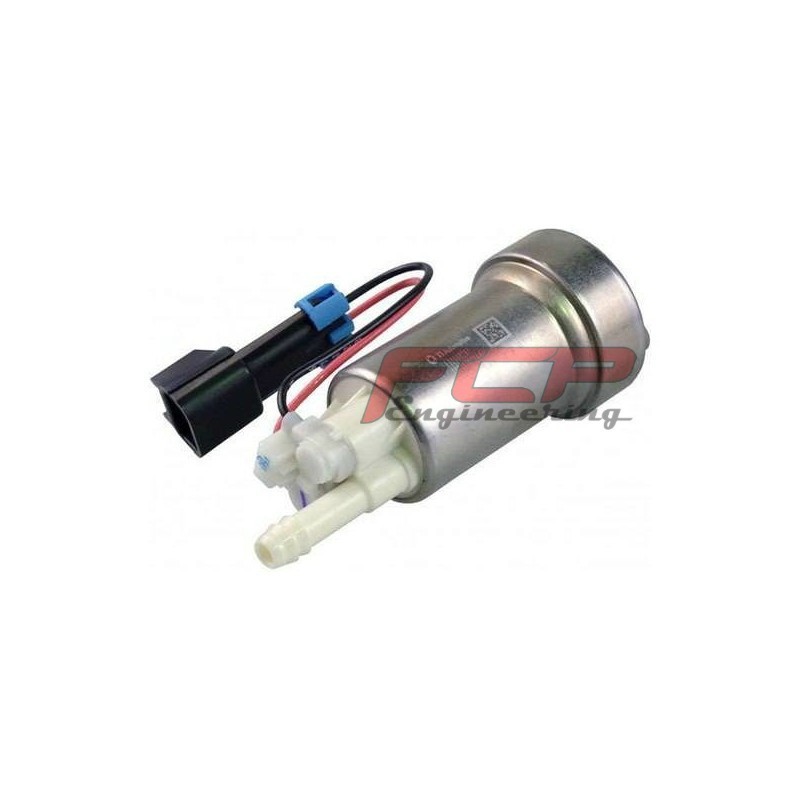

Walbro original Kraftstoffpumpe 520LPH E85 F90000285

Enjoy the Walbro's new DCSS 39/50 in-tank fuel pump. Able to support an aggressive 700+ horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both petrol and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance.

Specifications:

• Fittings In (mm): 11
• Fittings Out (mm): 9
• Pump: Ti Automotive (Walbro) F90000285
• Voltage DC: 12
• Pulse Width Modulation Compatible: Yes
• One way valve (NRV): Yes
• Flow Ltr/Hr (Max): 528
• Flow Ltr/Hr @ 3 Bar (44psi): 435
• Flow Ltr/Hr @ 5 Bar (73psi): 345
• Max Pressure (Bar): 8.3
• Length (mm): 130
• Diameter (mm): 50 / 39
• Weight (Kg): 0.430
