| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M2964H |
5M2964HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.1636in / 54.956mm |
|
| Max Std Shaft Size |
2.1646in / 54.980mm |
|
| Min Std Tunnel Size |
2.3206in / 58.944mm |
|
| Max Std Tunnel Size |
2.3216in / 58.968mm |
|
| Max Wall at Crown |
0.0780in / 1.980mm |
0.0774in /1.967 mm |
| Max Overall Length |
0.752in / 19.10mm |
|
| Notes | ||
|

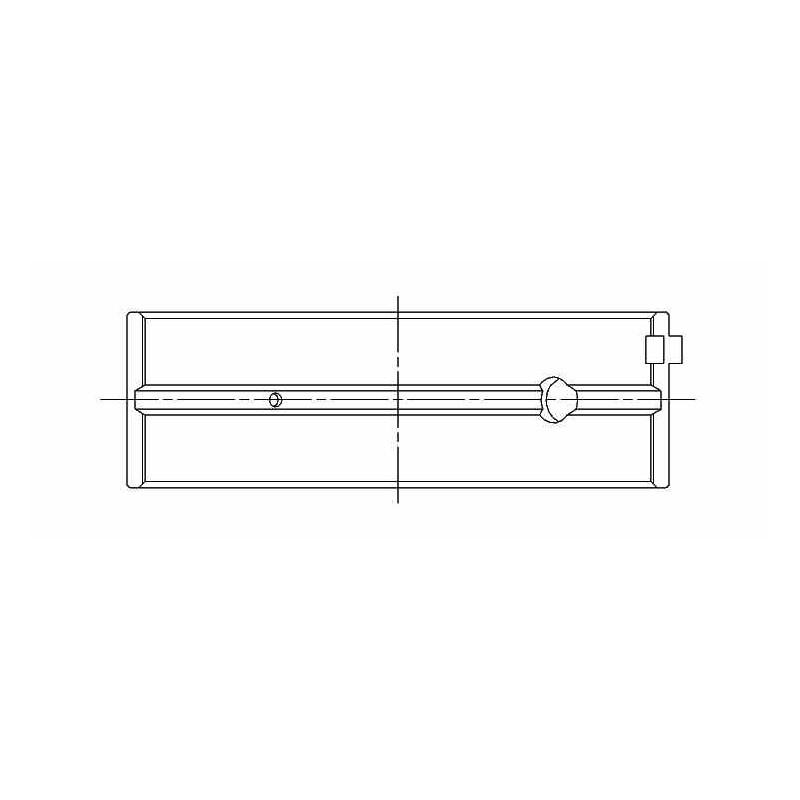

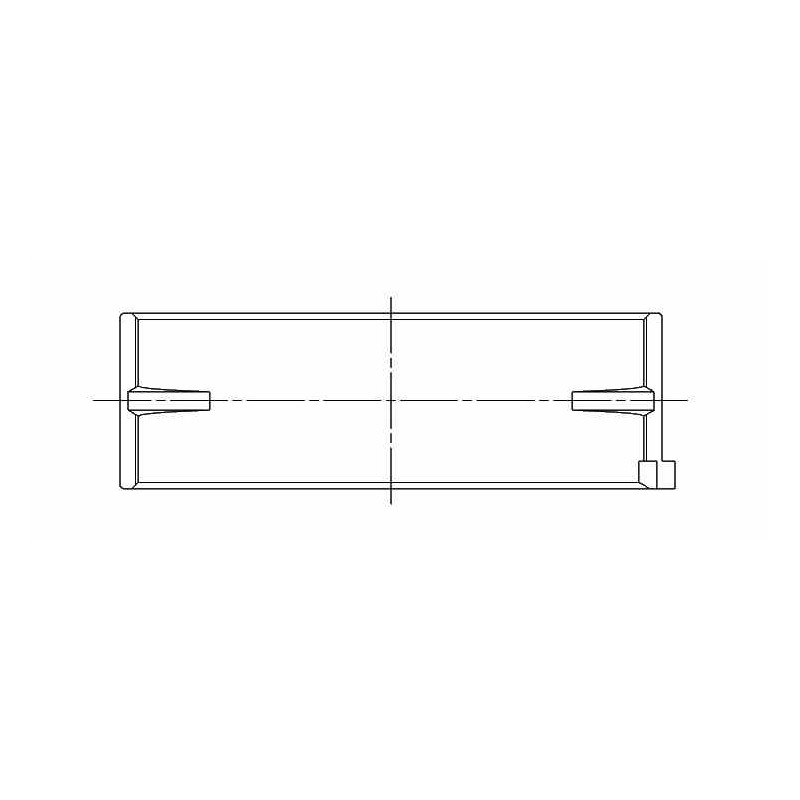

Diagram |
 |
|
