Teilenummer BMEVI-1006/L

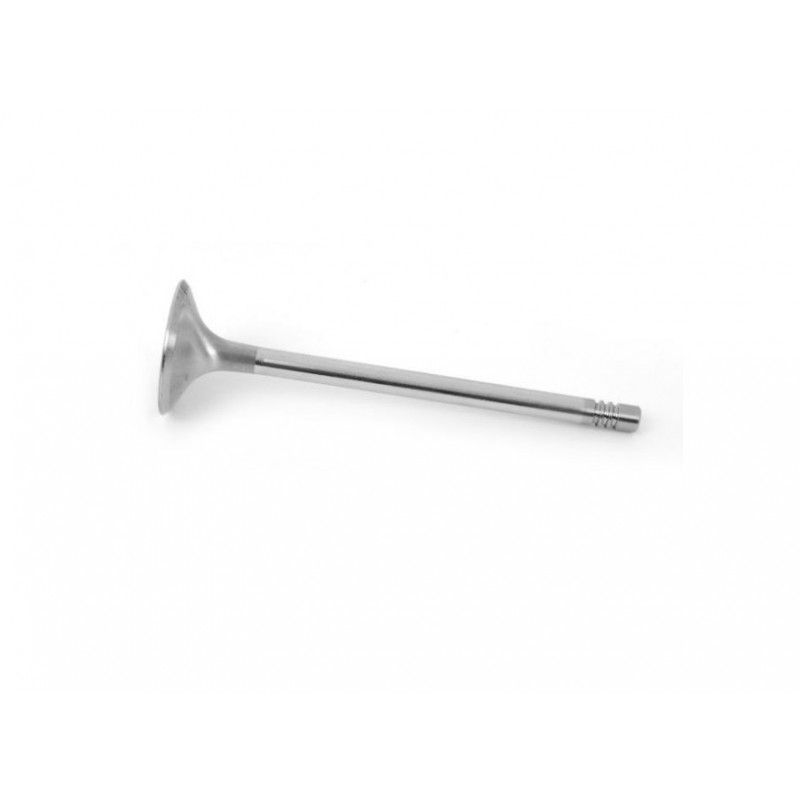

Supertech Inconel/Nimonic Auslassventil
BMW M3, M5 - 2.3, 2.5, 3.6, 3.8 (S14B23, S14B25, S38B36, S38B38)
Müssen drei Rille Ventilschlösser KPR-VW7-T (oder OEM) verwenden.
|
Product detailed specification |
|
|
Model number |
BMEVI-1006/L |
|
Head diameter |
32.00mm |
|
Stem diameter |
6.95mm |
|
Length |
125.00mm |
|
Material |
Inconel 751 / Nimonic |
|
Fits for |
BMW M3, M5 - 2.3, 2.5, 3.6, 3.8 (S14B23, S14B25, S38B36, S38B38) |
Athena Racing 330-Serie Cooper Ring Zylinderkopfdichtung.
Für spezifische Hochpferdestärken Motorleistungen erheblich durch den Einsatz Athena Cooper Ring Dichtungen verbessert werden, die mit INOX Stahlring geliefert werden. Diese Technologie bietet gegenüber herkömmlichen Feuerring Lösungen.
Cooper Rings sind Übermaß (auch fit für übergroße Bohrungen).
Teilenummer 330021R
Dichtungsdicke: 2.00mm
Kolbendurchmesser: 95.00mm
|
Teilenummer beginnt 330 |
|
|
Athena Vorteile |
|
|
Verstärktes Material |
OE genehmigt Asbestfreie Verbund Rohstof |
|
Edelstahlringen (AISI304) |
Einzelne Edelstahlringe gewährleisten maximale Besiegelung um die Zylinderbohrungen, unter extremen Bedingungen, auch mit dem NOS-System und/oder Turbo-Aufladung, wenn die MLS Dichtung unfähig abgedichtet Brennkammer arbeitet. Zylinderkopf und Motorblock benötigt keine speziellen Behandlungen. |
|
Silikon Beading |
Silikon Beading wird auf kritische Bereiche angewendet zu verbessern Abdichten um alle Kühlwasser- und Ölkanäle. |
Detailierte Productinformation
Hersteller: FCP Engineering
Model: FCPRHB1445222-4
Profil: H-Schaft
C bis C: 144mm
Großer End Durchmesser: 52mm
Kleiner End Durchmesser: 22mm
Gemacht aus: Schmiedestahl 4340 EN24er
Quantität: 4 Stk., 8 Stk. ARP2000 3/8" Pleuelschreuben
Pleuel gut für: 600HP (4 Kolben) und 9000RPM
BMW M3 E30 - 2.3 2.5 (S14B23, S14B25)
|
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 4B1568H |
4B1568HX |
|
| Sizes | STD, .025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8888in / 47.975mm |
|
| Max Std Shaft Size |
1.8894in / 47.9911mm |
|
| Min Std Tunnel Size |
2.0472in / 52.000mm |
|
| Max Std Tunnel Size |
2.0478in / 52.015mm |
|
| Max Wall at Crown |
0.0785in / 1.993mm |
0.0780in / 1.980mm |
| Max Overall Length |
0.787in / 20.00mm |
|
| Notes | .. | |
|
Diagram |
 |
|
Engines BMW 2.0 2.3 2.5 (S14B20, S14B23, S14B25)
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1568H |
4B1568HX |
|
| Sizes | STD, .025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8888in / 47.975mm |
|
| Max Std Shaft Size |
1.8894in / 47.9911mm |
|
| Min Std Tunnel Size |
2.0472in / 52.000mm |
|
| Max Std Tunnel Size |
2.0478in / 52.015mm |
|
| Max Wall at Crown |
0.0785in / 1.993mm |
0.0780in / 1.980mm |
| Max Overall Length |
0.787in / 20.00mm |
|
| Notes | .. | |
|
Diagram |
|
|
Engines BMW 2.0 2.3 2.5 (S14B20, S14B23, S14B25)
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1568H |
4B1568HX |
|
| Sizes | STD, .025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8888in / 47.975mm |
|
| Max Std Shaft Size |
1.8894in / 47.9911mm |
|
| Min Std Tunnel Size |
2.0472in / 52.000mm |
|
| Max Std Tunnel Size |
2.0478in / 52.015mm |
|
| Max Wall at Crown |
0.0785in / 1.993mm |
0.0780in / 1.980mm |
| Max Overall Length |
0.787in / 20.00mm |
|
| Notes | .. | |
|
Diagram |
|
|
Engines BMW 2.0 2.3 2.5 (S14B20, S14B23, S14B25)
|
Product detailed specification |
|
|
Model number |
BMIVN-1006/L |
|
Head diameter |
37.00mm |
|
Stem diameter |
6.98mm |
|
Length |
123.00mm |
|
Material |
Black nitrided stainless steel |
|
Fits for |
BMW M3, M5 - 2.3, 2.5, 3.6, 3.8 (S14B23, S14B25, S38B36, S38B38) |
Spring data:
Seat pressure - 90lbs @ 35.5mm
Open (lift) pressure - 230lbs @ 13.0mm
Spring coil bind - 21.50mm
Max lift - 14.80mm
Rate - 11.50mm
Outer spring outer diameter - 29.65mm
Outer spring inner diameter - 21.85mm
Inner spring outer diameter - 20.50mm
Inner spring inner diameter - 15.50mm
Set includes:
Double springs - 24 pcs. SPR-H1005D-S14
Titanium retainers - 24 pcs. RET-BMS14-T1
Seats - 24 pcs. SEAT-H1002-S14
