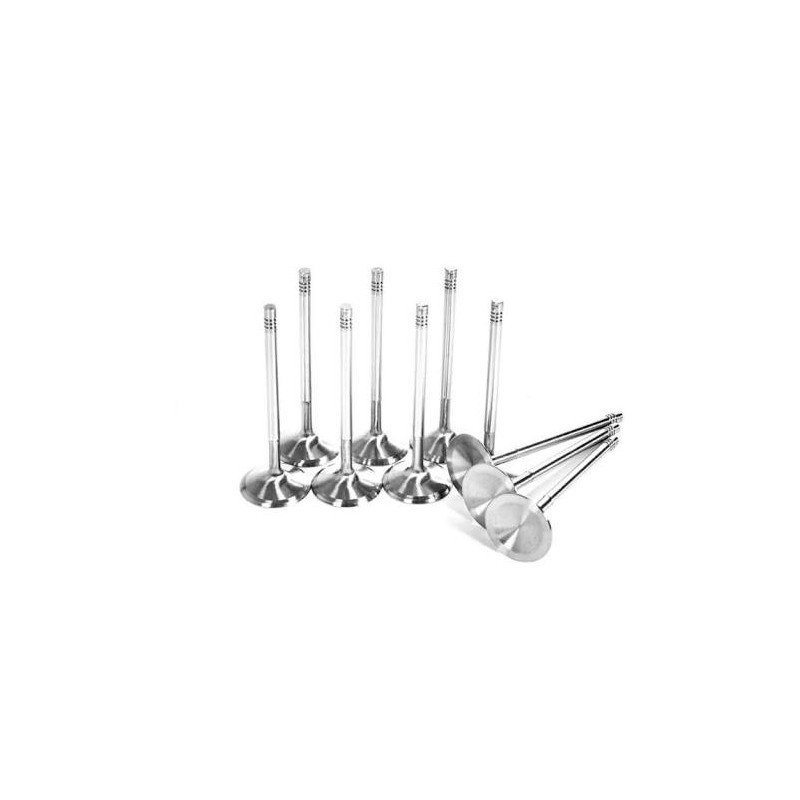

Subaru WRX 16V EJ20 / EJ25 Ferrea Einlassventil STD F6077

Teilenummer F6077 (Supertech SIVN-1010)
Ferrea 6000 series Einlassventil STD
Subaru WRX, STI - 2.0 2.5 (EJ20, EJ25)
Head Diameter: 36 mm

Stem Diameter: 5.97 mm
Overall Length: 104.6 mm
Tip Length: 3.5 mm
Reference: 19 Degree S. Flo. Radius Groove. Stock size.
28,00 €
Verfügbarkeit:0 Artikel
Information
The 6000 Series Competition Valves are designed to provide excellent reliability in an environment of high spring pressures and roller cams, at a budget price. They have higher fatigue resistance and tensile strengths than our competitor’s best offerings.

To manufacture the valves we use our exclusive two-step slow forging process using EV8 stainless steel on both intake and exhaust valves.We provide a special heat-treatment and stress relieving process, along with hard chrome stems and friction-welded hard tips. We finish with a swirl polished head. The valves feature flow improvements to deliver the power needed for today’s sophisticated racing engines.

Das könnte dir auch gefallen

Subaru 2.0 2.5 EJ20 EJ25 Supertech Einlassventil SIVN-1010 STD
Subaru WRX 2.0 2.5 EJ20 EJ25 Supertech Einlassventil SIVN-1010 STD

Detailierte Produktinformationen

Modelnummer

SIVN-1010

Kopfdurchmesser

36.00mm

Ventilschaftdurchmesser

5.96mm

Länge

104.35mm

Material

Schwarz nitriert

Passend für

Subaru WRX - 2.0 2.5 (EJ20, EJ25)

25,00 €
Subaru WRX 2.0 2.5 EJ20 EJ25 Supertech Einlassventil SIVN-1012 +0.5
Subaru WRX 2.0 2.5 EJ20 EJ25 Supertech schwarz nitriert Einlassventil...

Detailierte Produktinformationen

Modelnummer

SIVN-1012

Kopfdurchmesser

36.50mm

Ventilschaftdurchmesser

5.96mm

Länge

104.35mm

Material

Schwarz nitriert Edelstahl

Passend für

Subaru WRX - 2.0 2.5 (EJ20, EJ25)

25,00 €
Subaru WRX STI EJ20 / EJ25 Supertech Ventilfedersatz SPRK-TS1015-SU4
Springs data:

Seat pressure - 82lbs @ 34.25mm
Open (lift) pressure - 220lbs @ 11.5mm

Spring coil bind - 20.70mm
Rate - 12.10lbs/mm

Max lift - 13.50mm
Outer spring outer diameter: 27.50mm
Outer spring inner diameter: 20.00mm
Inner spring outer diameter: 20.00mm
Inner spring inner diameter: 15.20mm

Set includes:

Dual springs: 16 pcs. SPR-TS1015/SU4
Titanium retainers: 16 pcs. RET-TS60/WRX1
Seats: 16 pcs. SEAT-TS/SUB4

599,00 €
