Teilenummer 5M8309HX-STD (+0.001" extra Spiel)

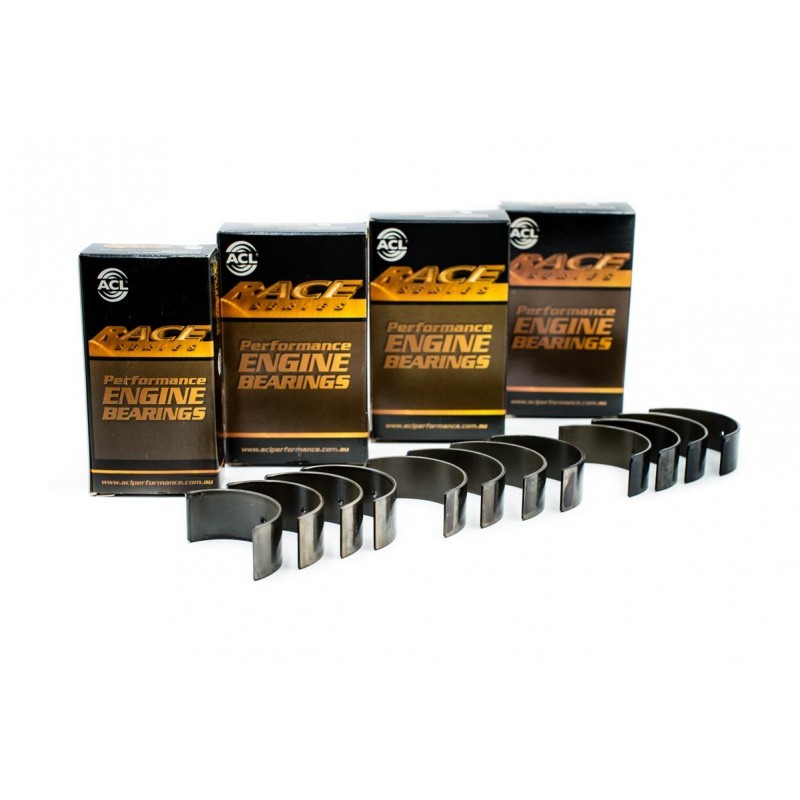

ACL Race Series Hauptlager Satz (für Schub in 5 Stellung)
Subaru - 1.8 2.0 2.2 2.5 (EJ18, EJ20, EJ22, EJ25, EJ20T, EJ20TT, EJ22T, EJ25T)

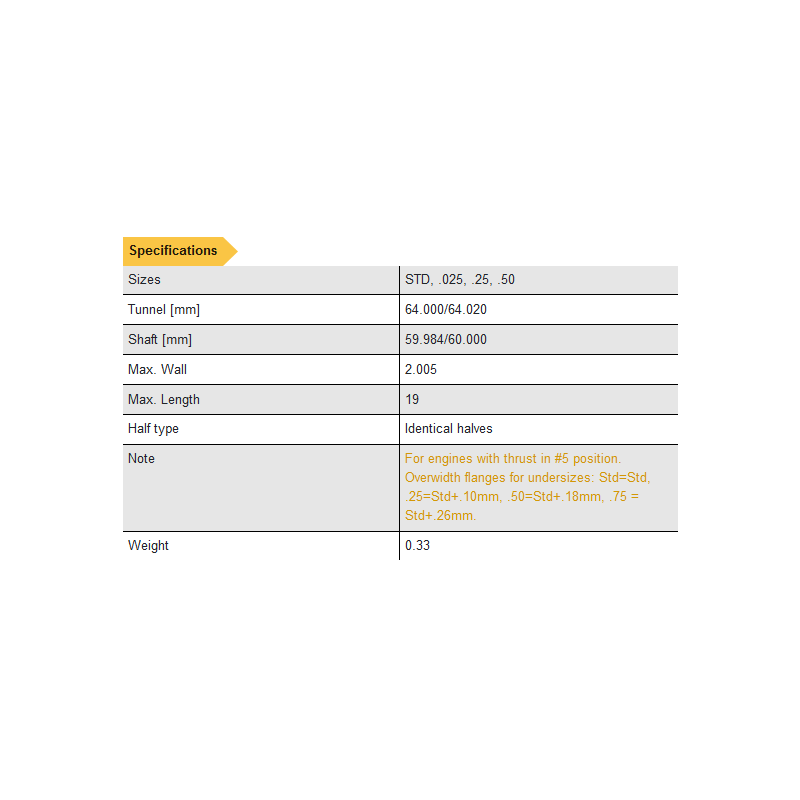

| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M8309H |
5M8309HX |
|
| Sizes | STD, .025, .25, 0.5 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.3616in / 59.984mm |
|
| Max Std Shaft Size |
2.3622in / 60mm |
|
| Min Std Tunnel Size |
2.5197in / 64mm |
|
| Max Std Tunnel Size |
2.5205in / 64.02mm |
|
| Max Wall at Crown |
0.0789in / 2.005mm |
0.0784in / 1.992mm |
| Max Overall Length |
0.748in / 19mm (8297H/HX) 0.5953in / 15.12mm (8298H/HX) 0.9035in / 22.95mm (8309H/HX - Flange) |
|
| Notes | Thrust in #5 pos. | |
|

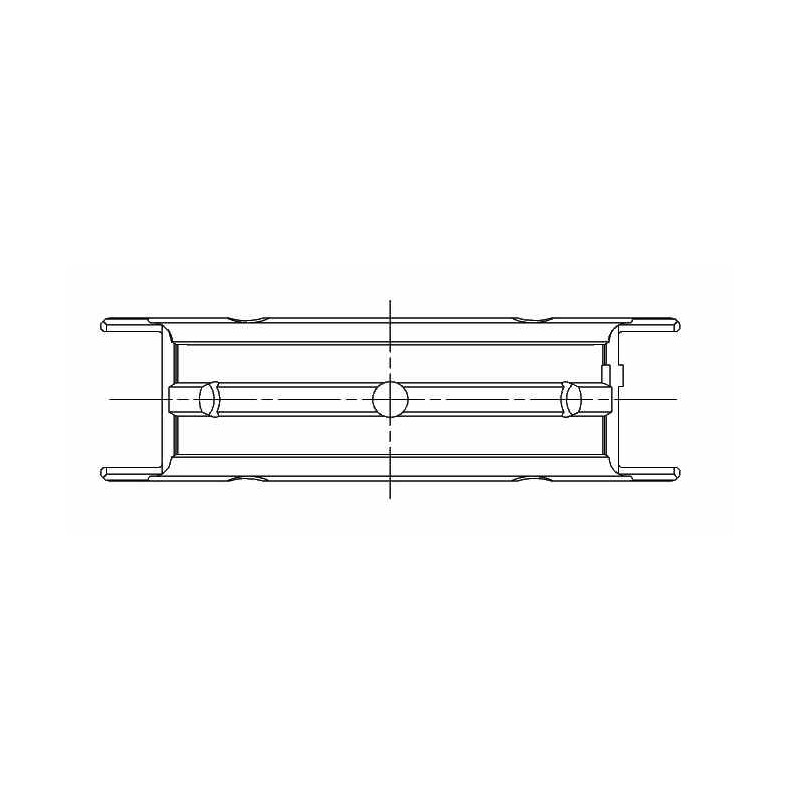

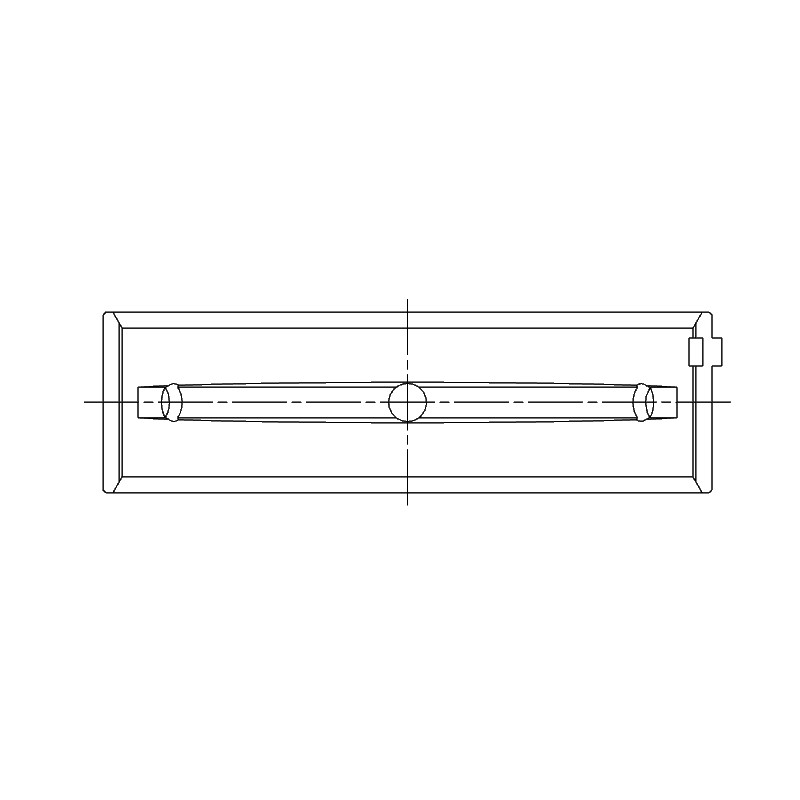

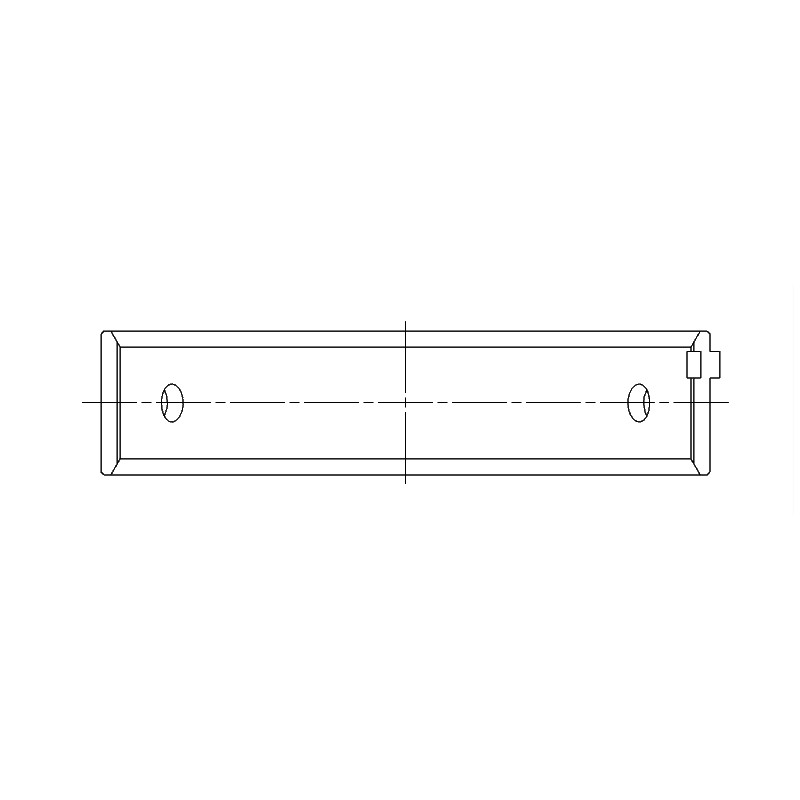

Diagram |
|
|
