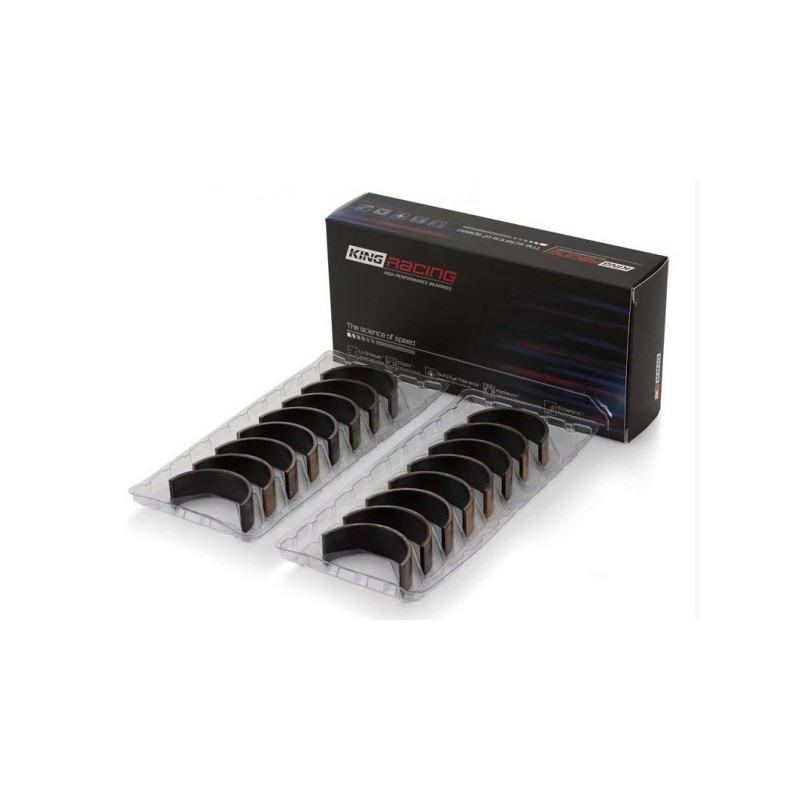

Toyota 2.5 (1JZ-GE, 1JZ-GTE) 3.0 (2JZ-GE, 2JZ-GTE) King Racing Pleuellager CR6754XPC-STD Beschichteten
Teilenummer CR6754XPC-STD Beschichteten
King Racing Pleuellager Satz
Toyota - 2.5 3.0 (1JZGE, 1JZGTE, 2JZGE, 2JZGTE)
139,00 €
Verfügbarkeit:2 Artikel
Information
|
| XP |
XP |
 |
|
| C6754/PR |
C6754/PR |
|
|---|
| Quantity |
6 |
|---|
| Crankshaft |
51.999 / 51.981 |
|---|
| Housing |
55.024 / 55.042 |
|---|
| Max Wall |
1.506 |
|---|
| Max Length |
19.200 |
|---|
Engines: Toyota - (1JZGE, 1JZGTE, 2JZGE, 2JZGTE)
Das könnte dir auch gefallen
Toyota 3.0 2JZGTE 2JZGE 2JZA80 FCP H-Schaft Stahlpleuel Kit 142mm
Hersteller: FCP Engineering
Model: FCPRHT1425522
Profil: H-Schaft
C bis C: 142mm
Großer End Durchmesser: 55mm
Kleiner End Durchmesser: 22mm
Gemacht aus: Schmiedestahl 4340 EN24er
Quantität: 6 Stk., 12 Stk. ARP2000 3/8" Pleuelschreuben
Pleuel gut für: 1200HP (6 Zylinder) und 9000RPM
Toyota Supra - 3.0 (2JZGTE, 2JZGE, 2JZA80)
639,00 €
Toyota 2.5 3.0 2JZGTE ACL Race Pleuellager Satz 6B8100HX-STD
| ENGINE BEARINGS |
 |
CON ROD BEARING SET
|
| Part# |
6B8100H
|
6B8100HX
|
| Sizes |
STD, .025, .25 |
STD |
| Oil Clearance |
Standard |
+ 0.001" Extra |
| Half Type |
Identical halves |
| Material |
Tri-metal Hardened steel backs
|
| Min Std Shaft Size |
2.0465in / 51.981mm
|
| Max Std Shaft Size |
2.0472in / 52mm
|
| Min Std Tunnel Size |
2.1663in / 55.024mm
|
| Max Std Tunnel Size |
2.167in / 55.042mm
|
| Max Wall at Crown |
0.0593in / 1.506mm
|
0.0588in / 1.493mm
|
| Max Overall Length |
0.7598in / 19.3mm
|
| Notes |
|
|
Diagram
(Top View)
|
|
Engines Toyota - 2.5 3.0 (1JZGE, 1JZGTE, 2JZGE, 2JZGTE)
109,00 €
Toyota 2.5 3.0 2JZGTE ACL Race Hauptlager Satz 7M8103HX-STD
| Sizes |
STD, .025, .25 |
| Oil Clearance |
Standard |
| Half Type |
Upper & Lower |
| Material |
Tri-Metal |
| Min. Std Shaft Size |
2.4403in / 61.984mm |
| Max. Std Shaft Size |
2.441in / 62.001mm |
| Min. Std Tunnel Size |
2.5992in / 66.02mm |
| Max. Std Tunnel Size |
2.5998in / 66.035mm |
| Max Wall at Crown |
0.0789in / 2.004mm |
| Max Overall Length |
0.7874in / 20mm (8103H/HX) 0.9055in / 23mm (8104H/HX) |
| Weight |
0.44 |
| Notes |
0 |
199,00 €
Toyota 1JZGE/GTE 2JZGE/GTE King Racing Hauptlager MB7084XPC-STD Beschichteten
| Component |
M7084/1UPR / M7084/1LPR |
| Min Crankshaft Diameter |
2.440 inch / 61.98mm |
| Max Crankshaft Diameter |
2.441inch / 62.00mm |
| Min Housing Diameter |
2.599 inch / 66.02 mm |
| Max Housing Diameter |
2.600 inch / 66.04 mm |
| Bearing Length |
0.787 inch / 19.99 mm |
| Max Wall Thickness |
0.000 inch / 0.00 mm |
| Component |
M7084/2UPR / M7084/2LPR |
| Min Crankshaft Diameter |
2.440 inch / 61.98mm |
| Max Crankshaft Diameter |
2.441inch / 62.00mm |
| Min Housing Diameter |
2.599 inch / 66.02 mm |
| Max Housing Diameter |
2.600 inch / 66.04 mm |
| Bearing Length |
0.906 inch / 23.01 mm |
| Max Wall Thickness |
0.000 inch / 0.00 mm |
Engines: Toyota 1JZGE, 1JZGTE, 2JZGE, 2JZGTE
169,00 €
