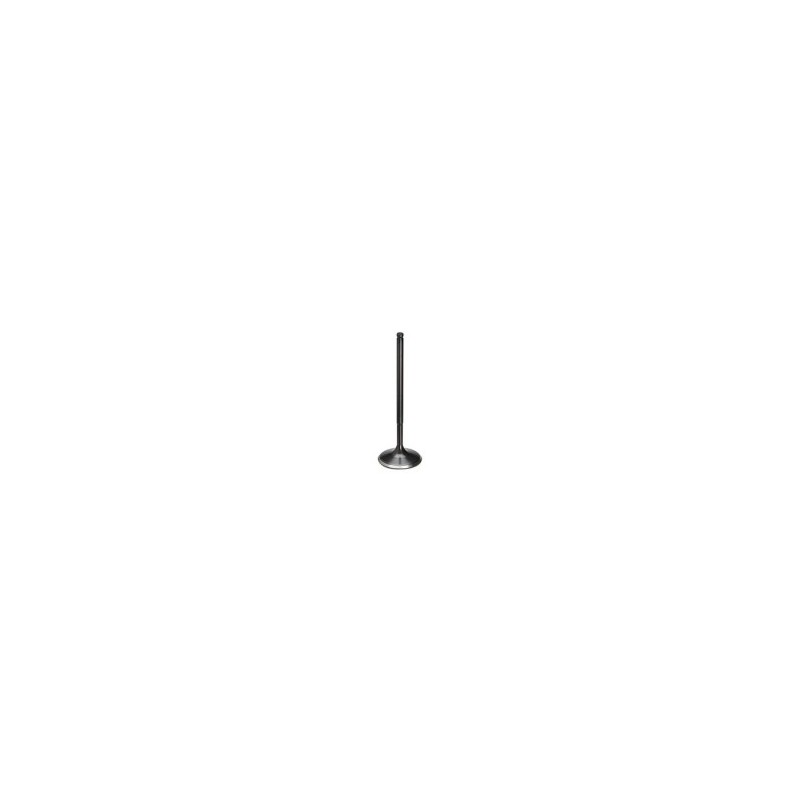

Product detailed specification |
|
|
Model number |
TEVN-1018 |
|
Head diameter |
27.00mm |
|
Stem diameter |
4.97mm |
|
Length |
108.40mm |
|
Material |
Black nitrided stainless steel |
|
Fits for |
Toyota Silver / Black Top 20V - 4AGE |
|
Product detailed specification |
|
|
Model number |
TIVN-1018 |
|
Head diameter |
27.50mm |
|
Stem diameter |
4.98mm |
|
Length |
98.60mm |
|
Material |
Black nitrided stainless steel |
|
Fits for |
Toyota Silver / Black Top 20V - 4AGE |
Spring data:
Outer spring outer diameter: 25.00mm
Outer spring inner diameter: 18.00mm
Inner spring outer diameter: 18.00mm
Inner spring inner diameter: 13.00mm
Seat pressure: 73Lbs@35.40mm (seat), 202Lbs@10.5mm (open/lift)
Spring coil bind: 21.00mm/17.00mm
Max lift: 14.40mm
Rate: 12.60Lbs/mm
Set includes:
