Prekės kodas 5M1237H-STD
ACL Race Series pagrindiniai indėklai
Mitsubishi EVO X - 2.0 16V (4B11T)

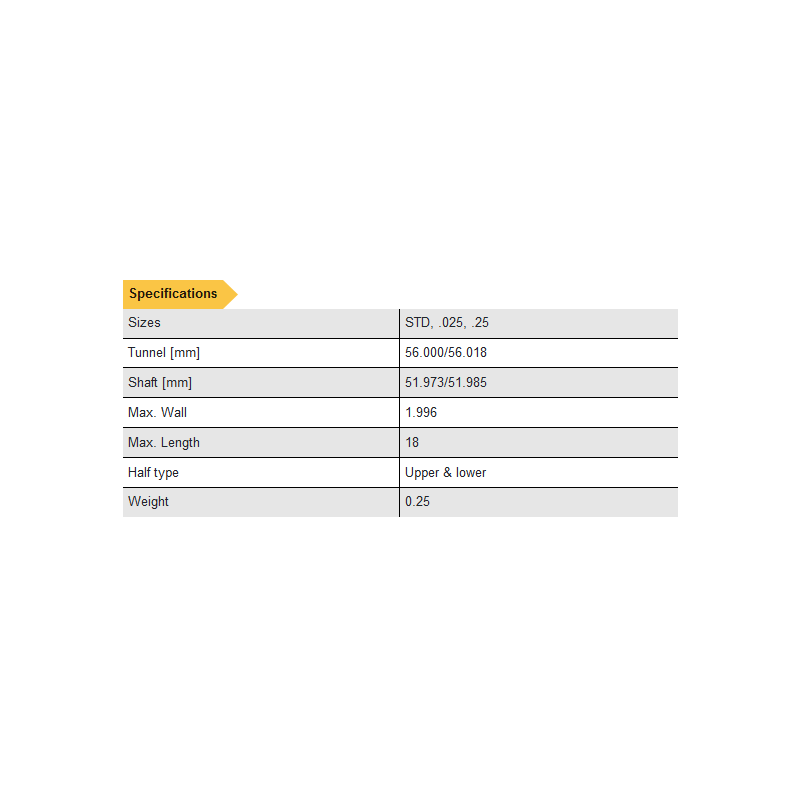

| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M1237H |
5M1237HX |
|
| Sizes | STD, .025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.0462 in / 51.973 mm |
|
| Max Std Shaft Size |
2.0467 in / 51.985 mm |
|
| Min Std Tunnel Size |
2.2047 in / 56.000 mm |
|
| Max Std Tunnel Size |
2.2054 in / 56.018 mm |
|
| Max Wall at Crown |
0.0786 in / 1.996 mm |
0.0781 in / 1.983 mm |
| Max Overall Length |
0.709 in / 18.00 mm |
|
| Notes | - | |
|

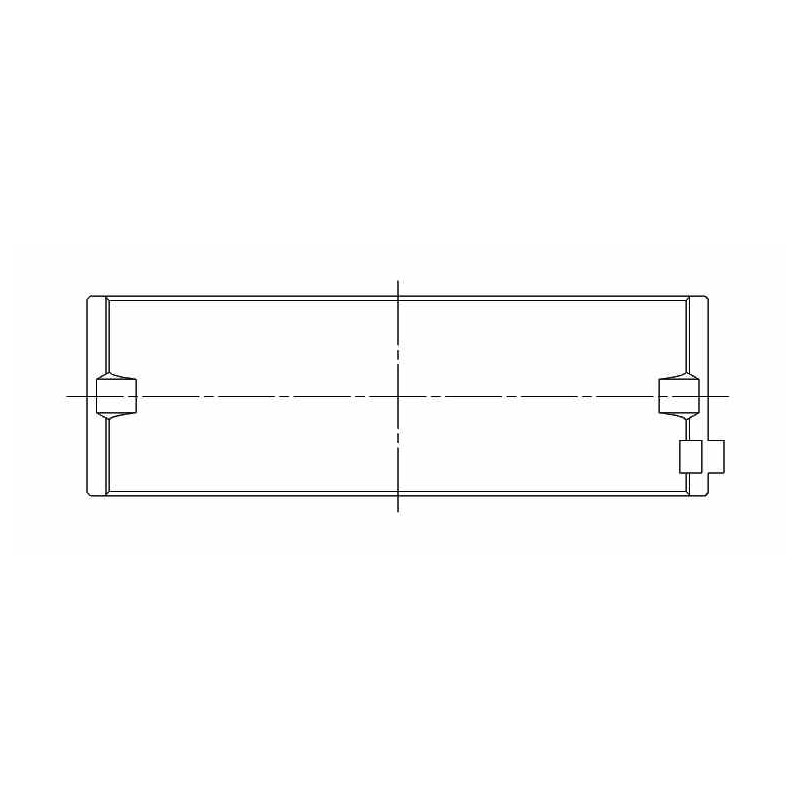

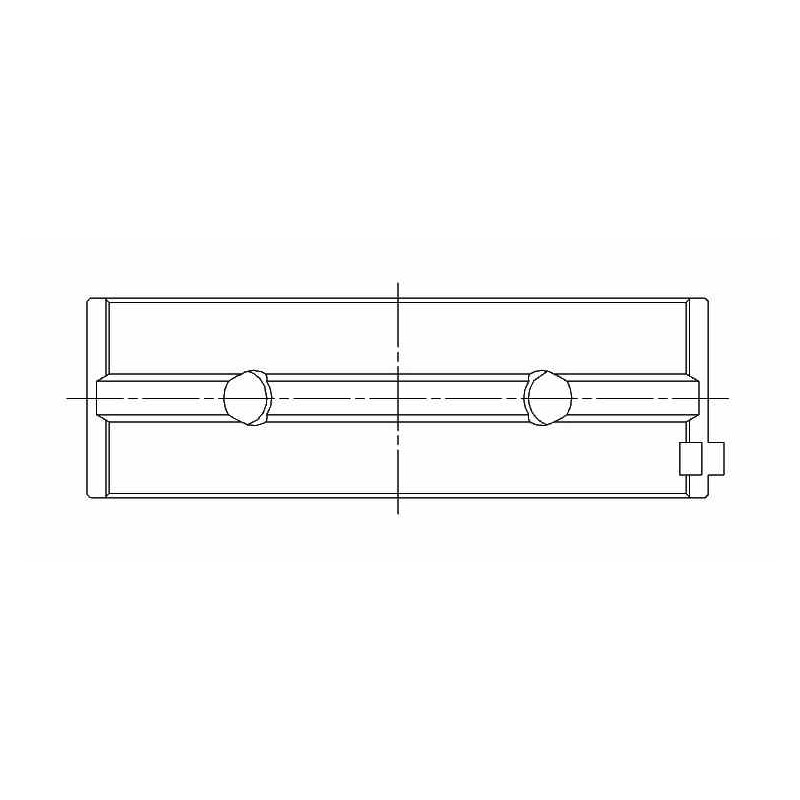

Diagram |
 |
|
