Prekės kodas 5M1219HX-STD (+0.001" padidintas tepimo tarpelis)

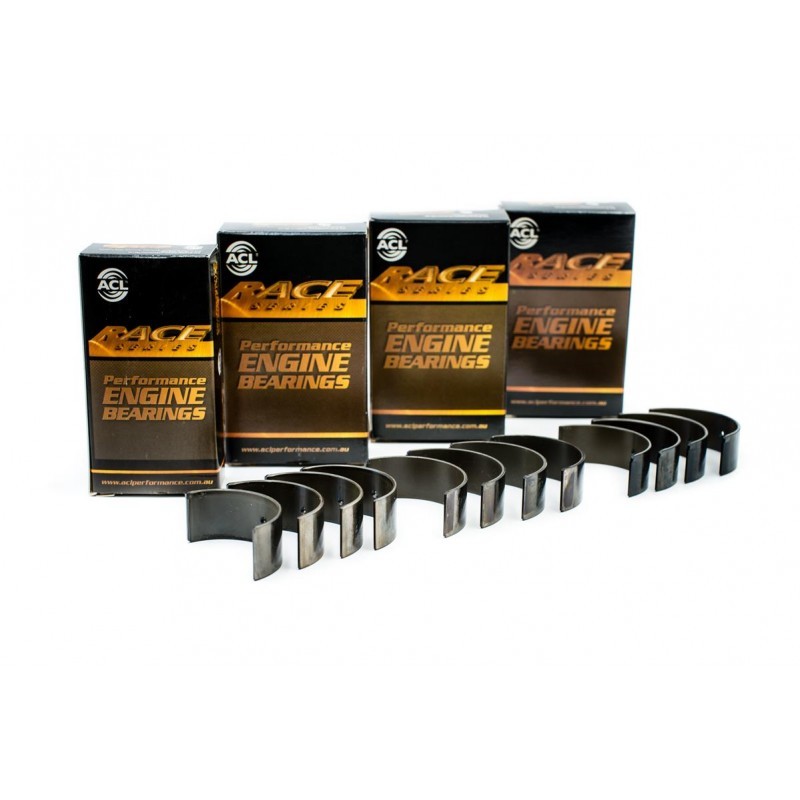

ACL Race series alkūninio veleno indėklai
Mitsubishi EVO 5-9 (1997->) - 2.0 2.4 (4G63, 4G63T, 4G64)

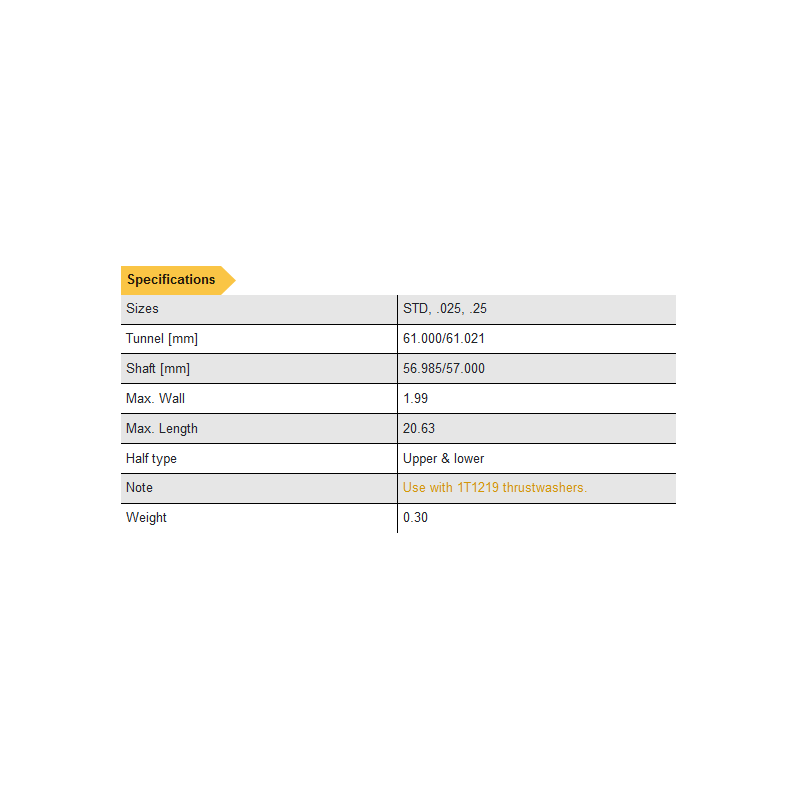

| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M1219H |
5M1219HX |
|
| Sizes | STD,.025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.2435in / 56.985mm |
|
| Max Std Shaft Size |
2.2441in / 57.000mm |
|
| Min Std Tunnel Size |
2.4016in / 61.000mm |
|
| Max Std Tunnel Size |
2.4024in / 61.021mm |
|
| Max Wall at Crown |
0.0783in / 1.990mm |
0.0778in / 1.977mm |
| Max Overall Length |
0.8268in / 21.00mm |
|
| Notes | For engines equipped with thrust washers | |
|

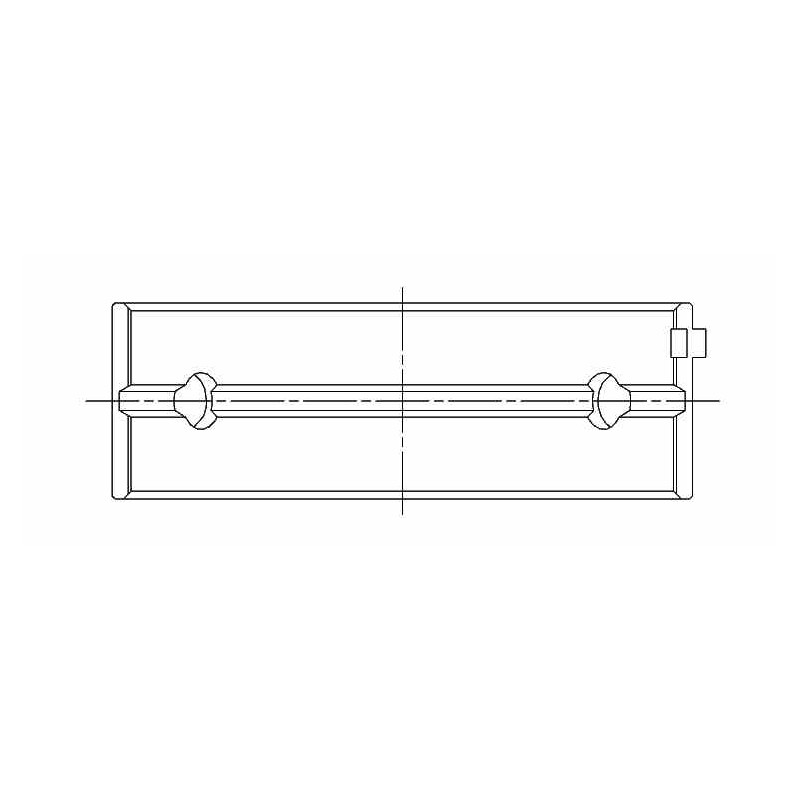

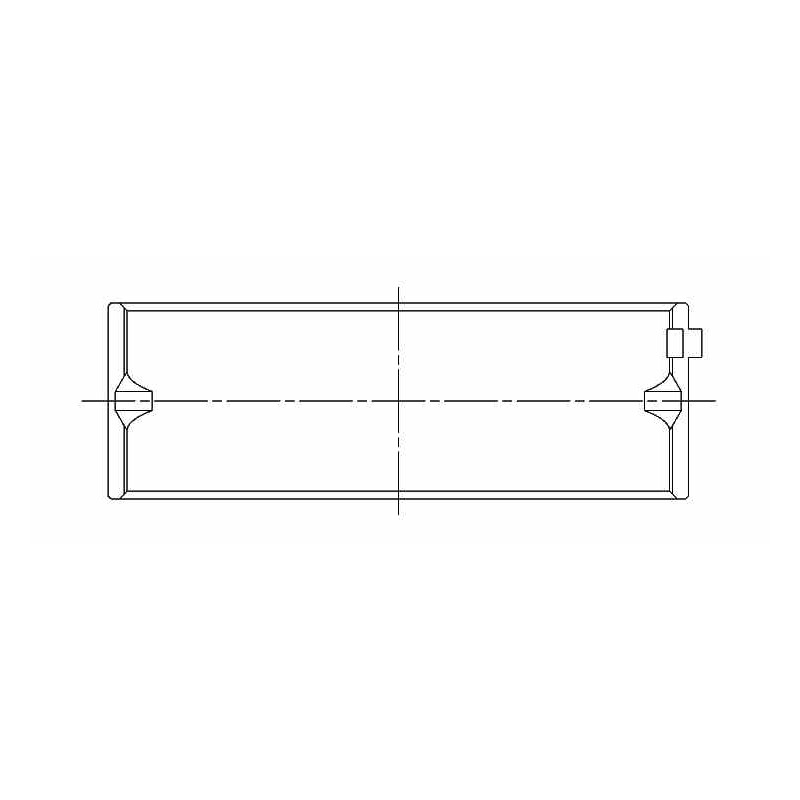

Diagram |
 |
|
