Prekės kodas 5M1112H-STD

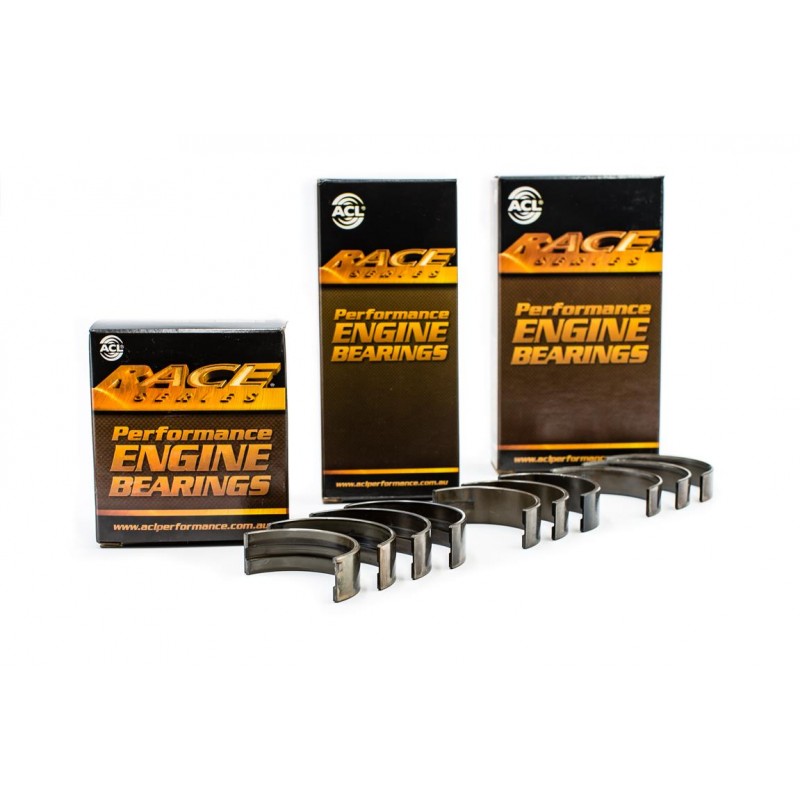

ACL Race Series pagrindiniai indėklai
Alfa Romeo - 1.3 1.6 1.8 2.0
| ENGINE BEARINGS | ||||
 |
CON ROD BEARING SET |
MAIN BEARING SET |
||
| Part# | Part# | |||
| 5M1112H |
||||
| Sizes | STD, .025, .25, .50 | |||
| Oil Clearance | Standard | |||
| Half Type | Upper & Lower | |||
| Material | Tri-Metal | |||
| Min Std Shaft Size |
2.3606" / 59.959mm |
|||
| Max Std Shaft Size |
2.3611" / 59.972mm |
|||
| Min Std Tunnel Size |
2.5062" / 63.657mm |
|||
| Max Std Tunnel Size |
2.5069" / 63.675mm |
|||
| Max Wall at Crown |
0.0720" / 1.829mm |
|||
| Max Overall Length |
0.723" / 18.36mm # 2, 4 (1113H) 1.005 " / 25.52mm # 1, 3, 5 (1112H) |
|||
| Notes | Set contains 6 x 1112H and 4 x 1113H shells. | |||
|

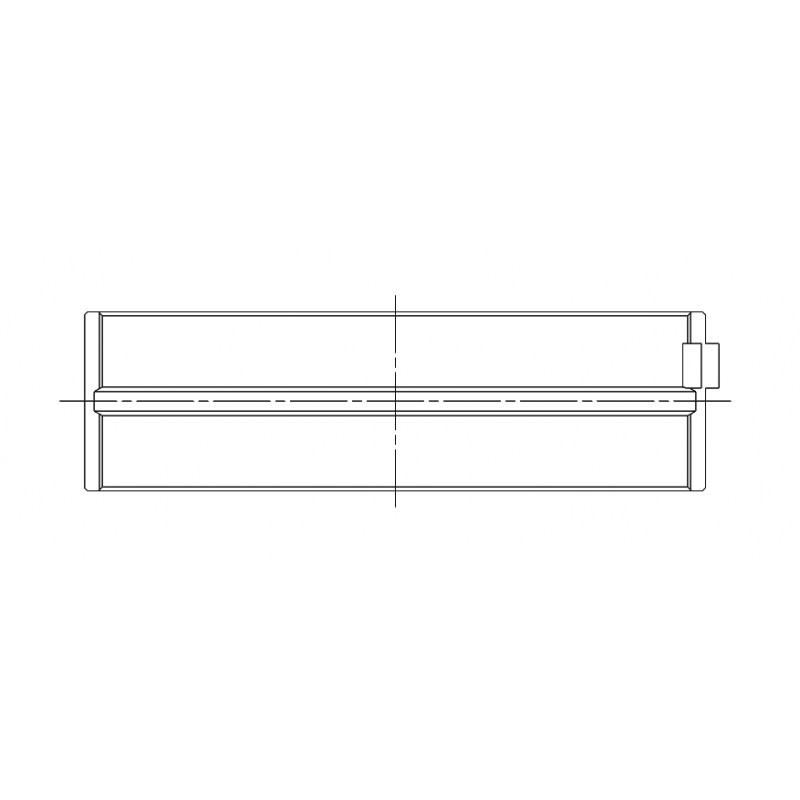

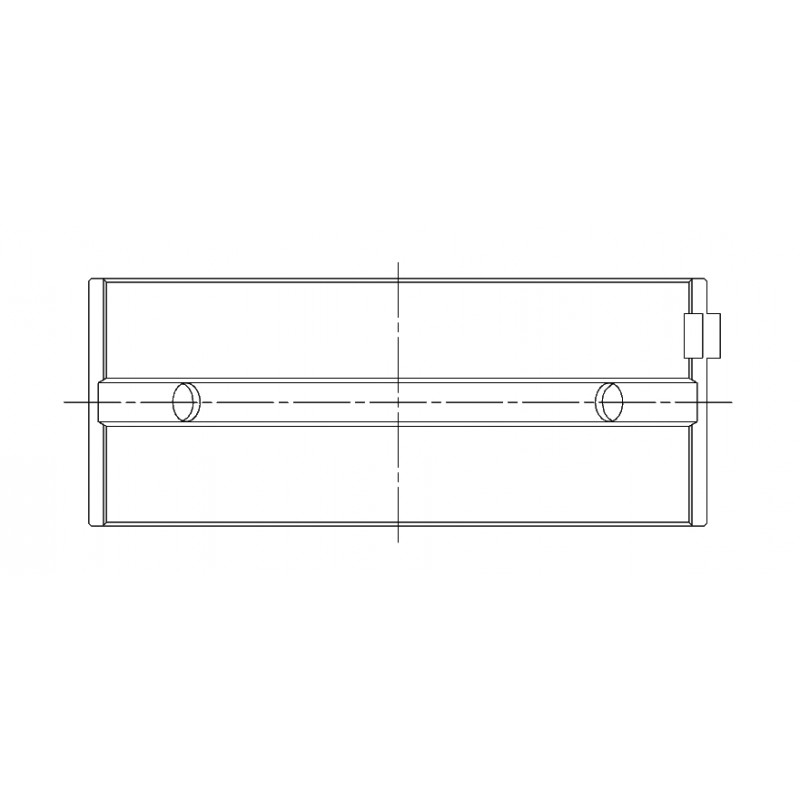

Diagram |
|
|||
