VW 2.0 16V ABF racing valve spring kit + titanium retainers

VW 2.0 16V ABF FCP racing valve spring and retainer kit

Part number FCPVSTRABF/16
FCP Engineering high performance racing valve double spring and titanium retainer kit
VW Golf, Vento / Seat Ibiza, Toledo - 2.0 16V (ABF)
For triple groove valves!

399,00 €

Доступность:0 шт.

Notify me when available

Информация

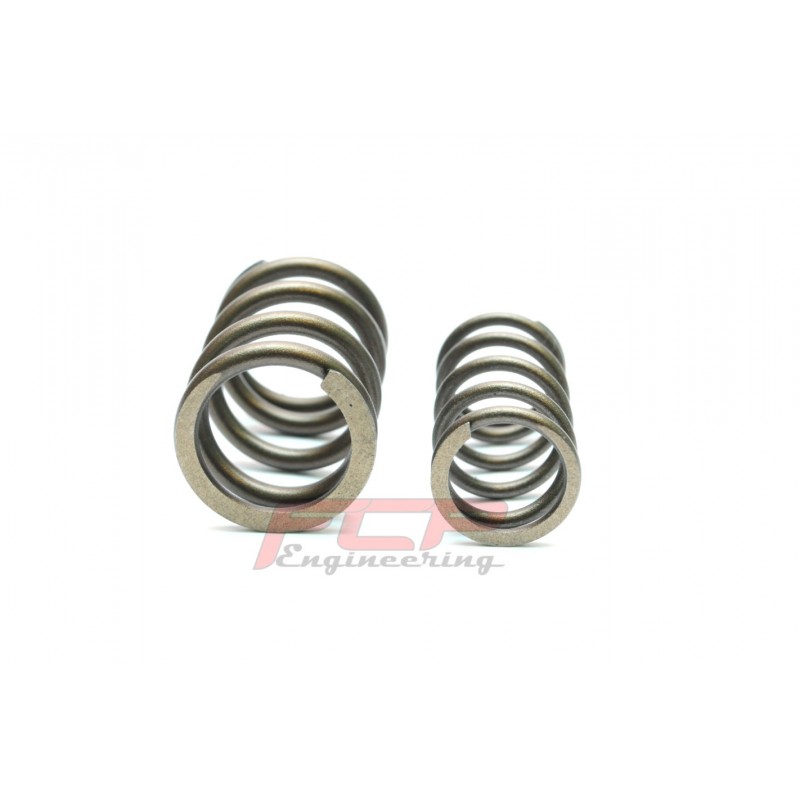

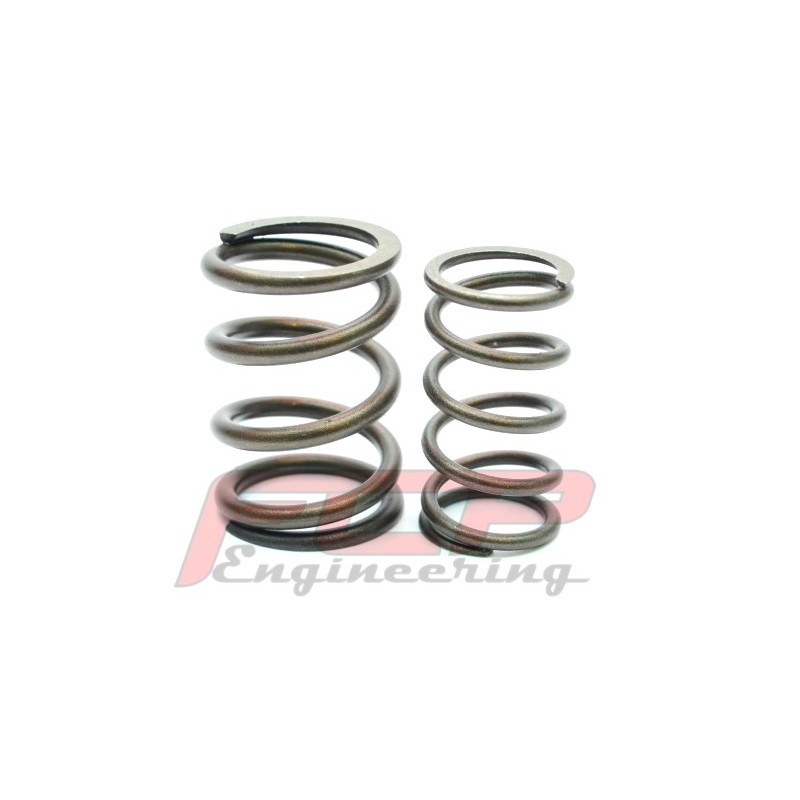

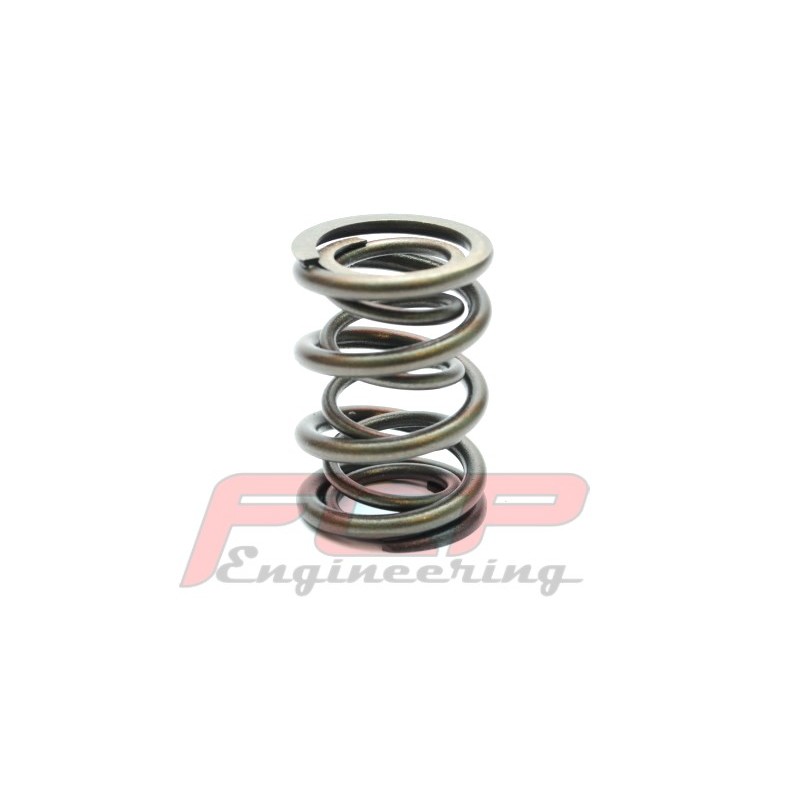

Valve springs data
Installed seat pressure - 38kg
Load - 100kg@12.5mm
Max. lift - up to 13mm
Made from chrome-silicon steel SAE9254-V
Outer spring outer diameter: 30.50mm
Outer spring inner diameter: 23.20mm
Inner spring outer diameter: 21.20mm
Inner spring inner diameter: 16.20mm
16 pcs. outer springs
16 pcs. inner springs
16 pcs. titanium retainers
Fits VW 4 cylinder 16V ABF engines.
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7600 RPM.

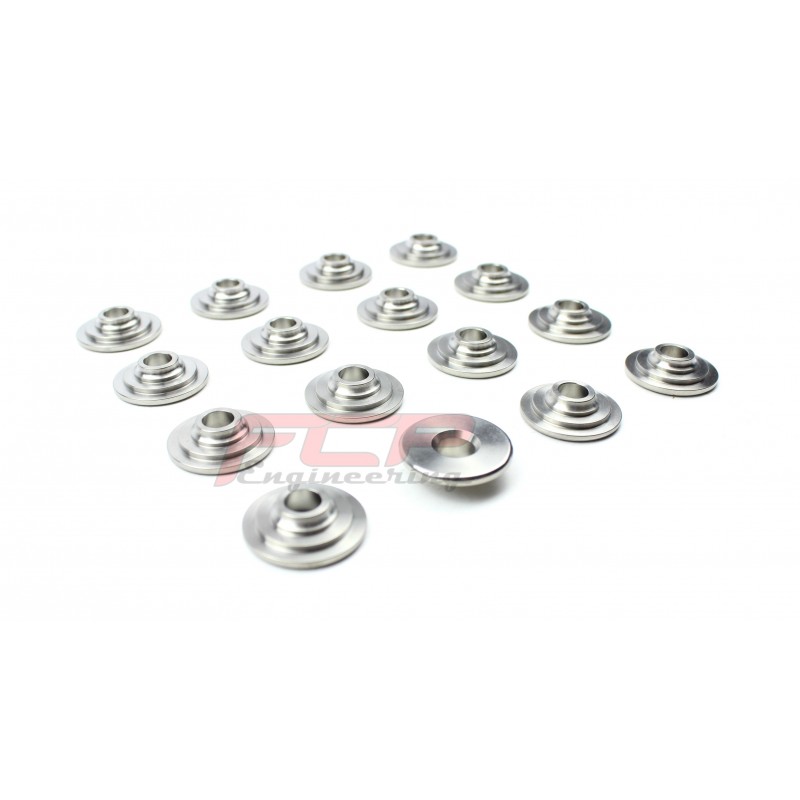

Titanium retainers are very light and strong, helps eliminate valve float. Weight is only 10g.
