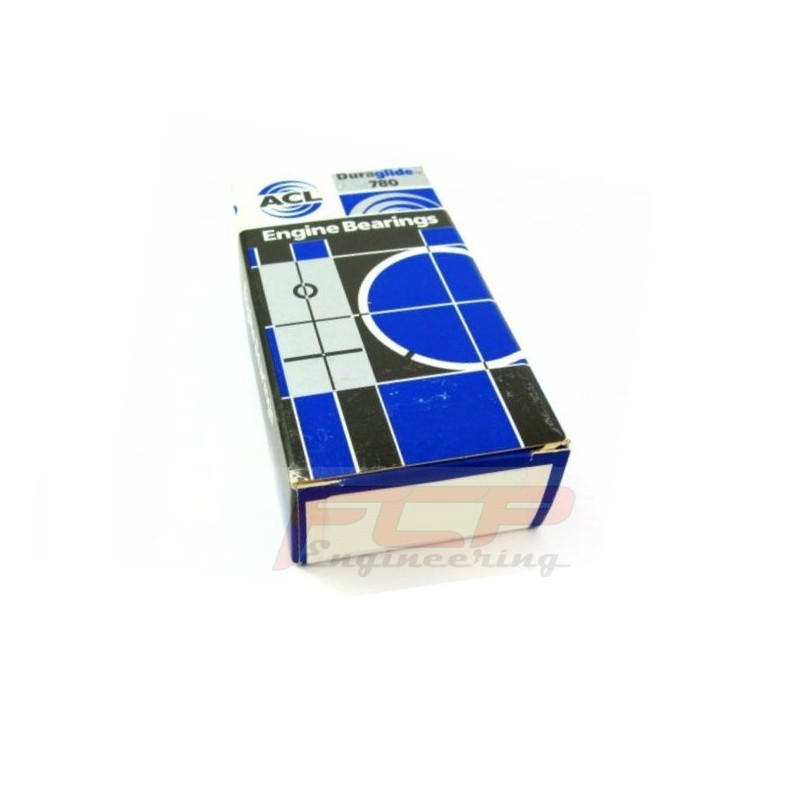

Honda F22 H22A H23A ACL Duraglide Hauptlager Satz 5M1937-STD

Teilenummer 5M1937-STD
ACL Duraglide Hauptlager Satz
Honda F22A, F22A1, F22A5, F22B1 (mit 50mm Hauptlager Satz)
Honda H22A, H22A1, H23A, H23A1 (mit 50mm Hauptlager Satz)

49,00 €

Verfügbarkeit:1 Artikel

Information

Component	1937
Halves	Identical Halves
Material code	F780
Min Std Shaft Size	1.9677 in / 49.98 mm
Max Std Shaft Size	1.9685 in / 50 mm
Min Std Tunnel Size	0.02 in / 0.54 mm
Max Std Tunnel Size	0.02 in / 0.54 mm
Max Overall Length	0.7874 in / 20 mm
Max Wall At Crown	0.0789 in / 2 mm
