Teilenummer 4B1912H-STD

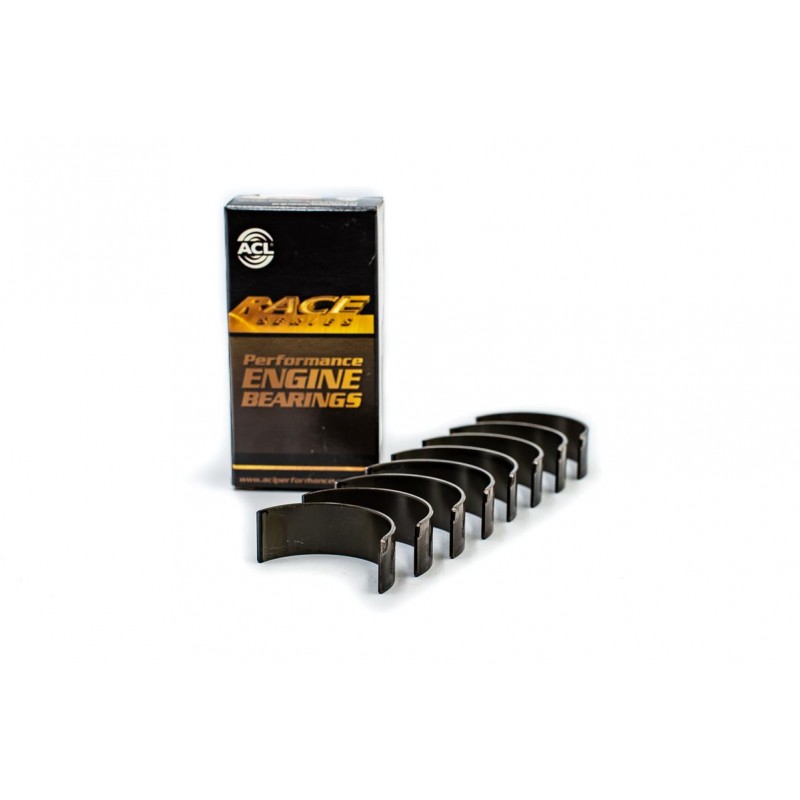

ACL Race Series Pleuellager Satz
Honda - 2.0 2.2 (F20C, F22C, H22A, H22Z)
| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 4B1912H |
4B1912HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.889in / 47.98mm |
|
| Max Std Shaft Size |
1.8898in / 48mm |
|
| Min Std Tunnel Size |
2.008in / 51.004mm |
|
| Max Std Tunnel Size |
2.0088in / 51.024mm |
|
| Max Wall at Crown |
0.0589in / 1.496mm |
0.0584in / 1.483mm |
| Max Overall Length |
0.7638in / 19.4mm |
|
| Notes | ||
|

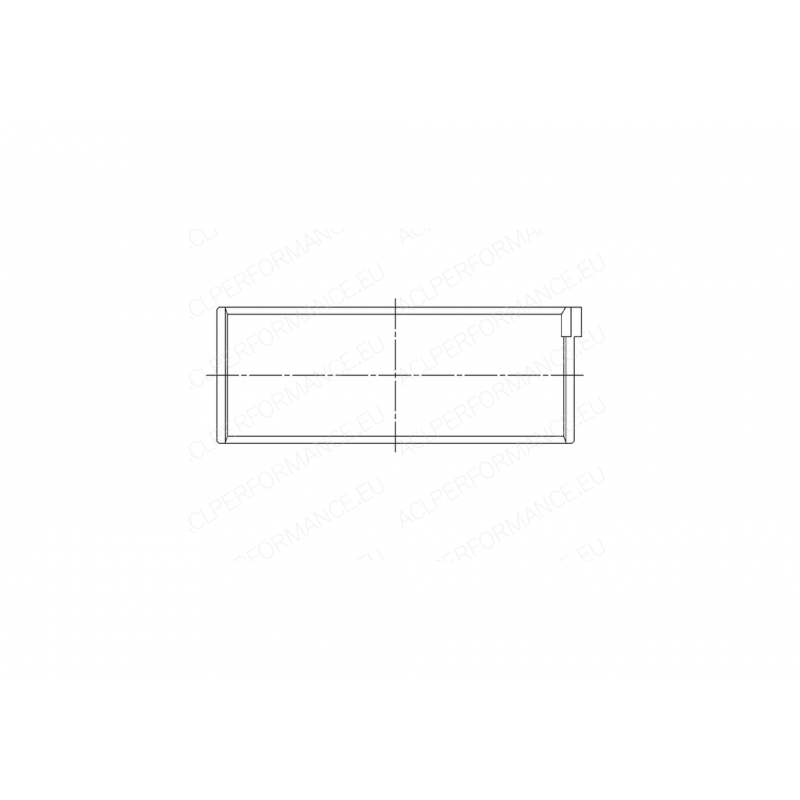

Diagram |
 |
|
| Sizes | STD, .025, .25 |
| Oil Clearance | Standard |
| Half Type | Identical Halves |
| Material | Tri-Metal |
| Min. Std Shaft Size | 2.1646in / 54.980mm |
| Max. Std Shaft Size | 2.1654in / 55.000mm |
| Min. Std Tunnel Size | 2.3228in / 59.000mm |
| Max. Std Tunnel Size | 2.3236in / 59.020mm |
| Max Wall at Crown | 0.0790in / 2.007mm |
| Max Overall Length | 0.7874in / 20.00mm |
| Weight | 0.28 |
| Notes | 0 |
| ENGINE BEARINGS | ||
|
MAIN BEARING SET |
|
| Part# | ||
| 5M1913H |
5M1913HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.1644in / 54.976mm |
|
| Max Std Shaft Size |
2.1654in / 55mm |
|
| Min Std Tunnel Size |
2.3622in / 60mm |
|
| Max Std Tunnel Size |
2.363in / 60.02mm |
|
| Max Wall at Crown |
0.0986in / 2.504mm |
0.0981in /2.491mm |
| Max Overall Length |
0.7874in / 20mm |
|
| Notes | ||
|
Diagram |
 |
|
| ENGINE BEARINGS | ||
|
MAIN BEARING SET |
|
| Part# | ||
| 5M1913H |
5M1913HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.1644in / 54.976mm |
|
| Max Std Shaft Size |
2.1654in / 55mm |
|
| Min Std Tunnel Size |
2.3622in / 60mm |
|
| Max Std Tunnel Size |
2.363in / 60.02mm |
|
| Max Wall at Crown |
0.0986in / 2.504mm |
0.0981in /2.491mm |
| Max Overall Length |
0.7874in / 20mm |
|
| Notes | ||
|
Diagram |
|
|
| Sizes | STD, .025, .25 |
| Oil Clearance | Standard |
| Half Type | Identical Halves |
| Material | Tri-Metal |
| Min. Std Shaft Size | 2.1646in / 54.980mm |
| Max. Std Shaft Size | 2.1654in / 55.000mm |
| Min. Std Tunnel Size | 2.3228in / 59.000mm |
| Max. Std Tunnel Size | 2.3236in / 59.020mm |
| Max Wall at Crown | 0.0790in / 2.007mm |
| Max Overall Length | 0.7874in / 20.00mm |
| Weight | 0.28 |
| Notes | 0 |
