Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race Hauptlager Satz 5M1957H-STD

Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race Hauptlager Satz 5M1957H-STD

Teilenummer 5M1957H-STD

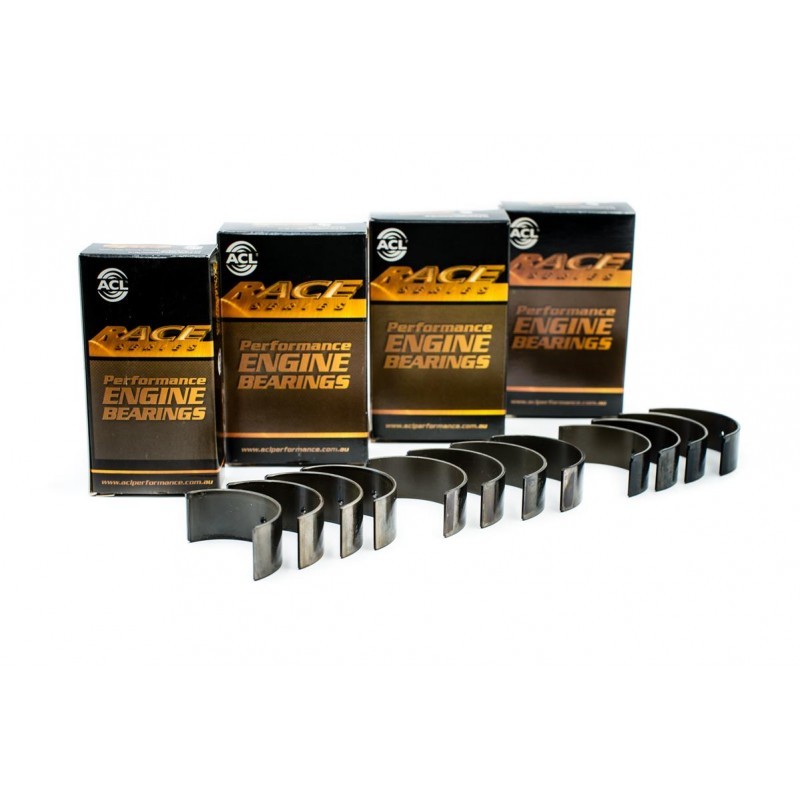

ACL Race Series Hauptlager Satz
Honda - 1.6 1.7 1.8 2.0 2.2 2.3 (D16A, D16B, D16W, D16Y, D16Z, B18A, B20A SOHC only, B20A, B21A, B21A1 DOHC only, D17A, D17Z, H22A, H22Z, F23A, F23Z)

92,00 €

Availibilty:3 Artikel

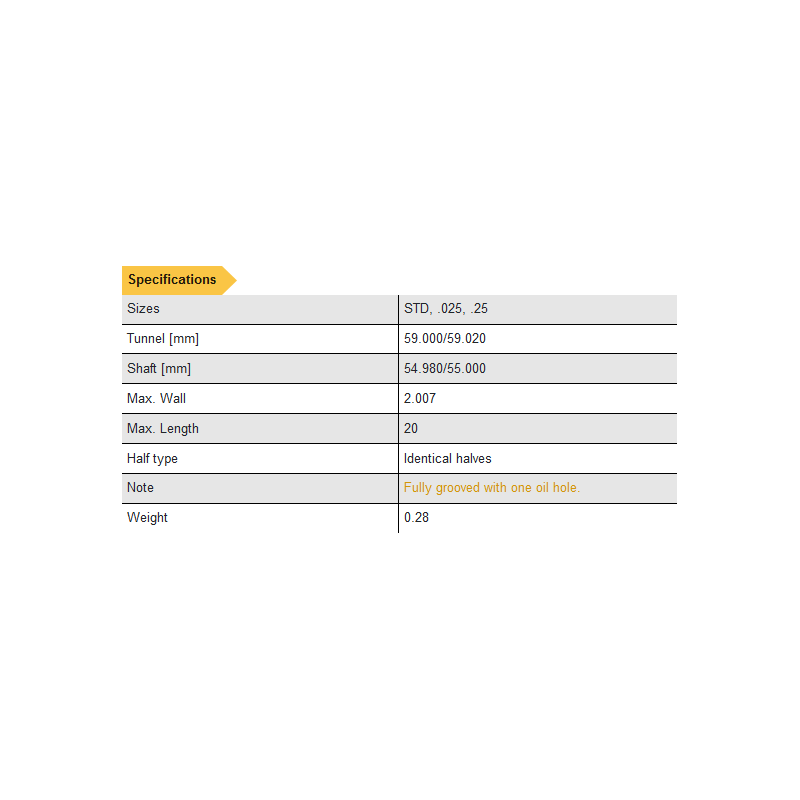

Information

Sizes	STD, .025, .25
Oil Clearance	Standard
Half Type	Identical Halves
Material	Tri-Metal
Min. Std Shaft Size	2.1646in / 54.980mm
Max. Std Shaft Size	2.1654in / 55.000mm
Min. Std Tunnel Size	2.3228in / 59.000mm
Max. Std Tunnel Size	2.3236in / 59.020mm
Max Wall at Crown	0.0790in / 2.007mm
Max Overall Length	0.7874in / 20.00mm
Weight	0.28
Notes	0
