| ENGINE BEARINGS | ||
 |

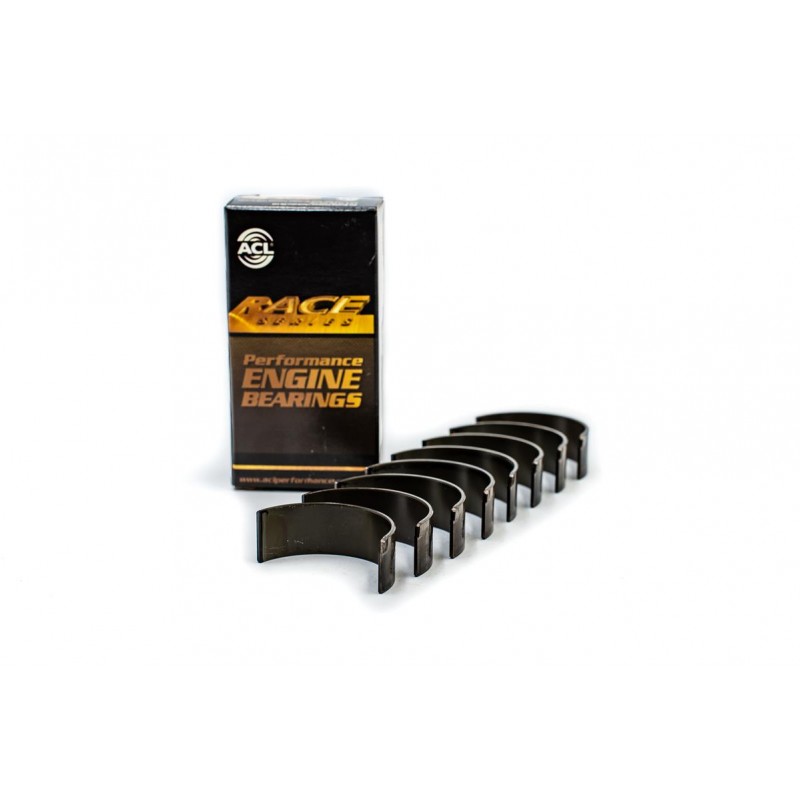

CON ROD BEARING SET |
|
| Part# | ||
| 4B1236H |
4B1236HX |
|
| Sizes | STD, .025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
2.0454in / 51.954 mm |
|
| Max Std Shaft Size |
2.0461in / 51.972 mm |
|
| Min Std Tunnel Size |
2.1654 in / 55.000 mm |
|
| Max Std Tunnel Size |
2.1657 in / 55.010 mm |
|
| Max Wall at Crown |
0.0591in / 1.500 mm |
0.0585in / 1.487 mm |
| Max Overall Length |
0.669 in / 17.00 mm |
|
| Notes | - | |
|

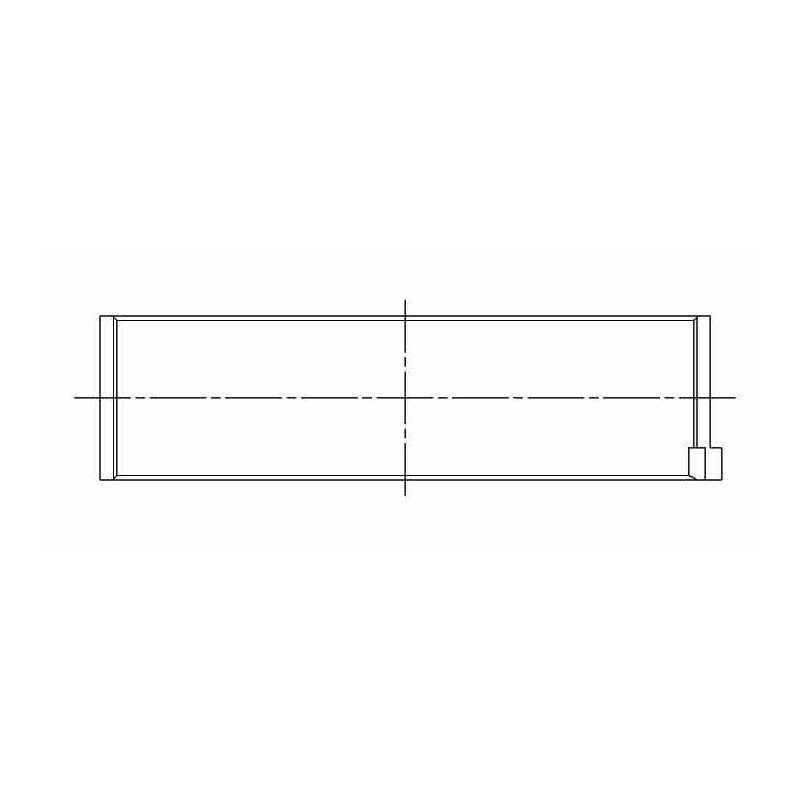

Diagram |
 |
|
