Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race main bearings 5M1957H-STD

Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race main bearings 5M1957H-STD

Part number 5M1957H-STD

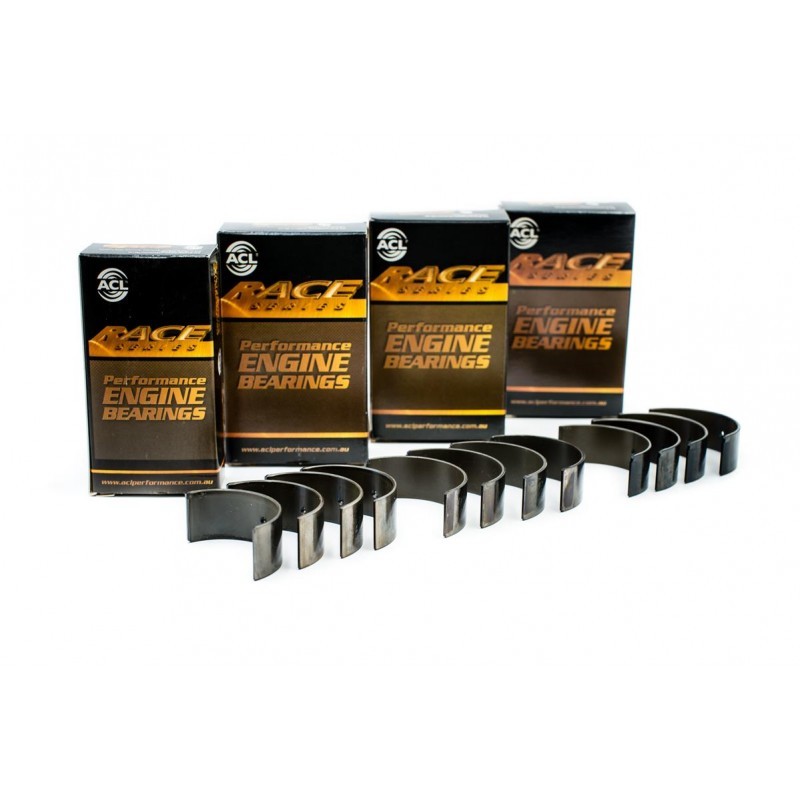

ACL Race Series main bearings
Honda - 1.6 1.7 1.8 2.0 2.2 2.3 (D16A, D16B, D16W, D16Y, D16Z, B18A, B20A SOHC only, B20A, B21A, B21A1 DOHC only, D17A, D17Z, H22A, H22Z, F23A, F23Z)

€92.00

Availibilty:3 items

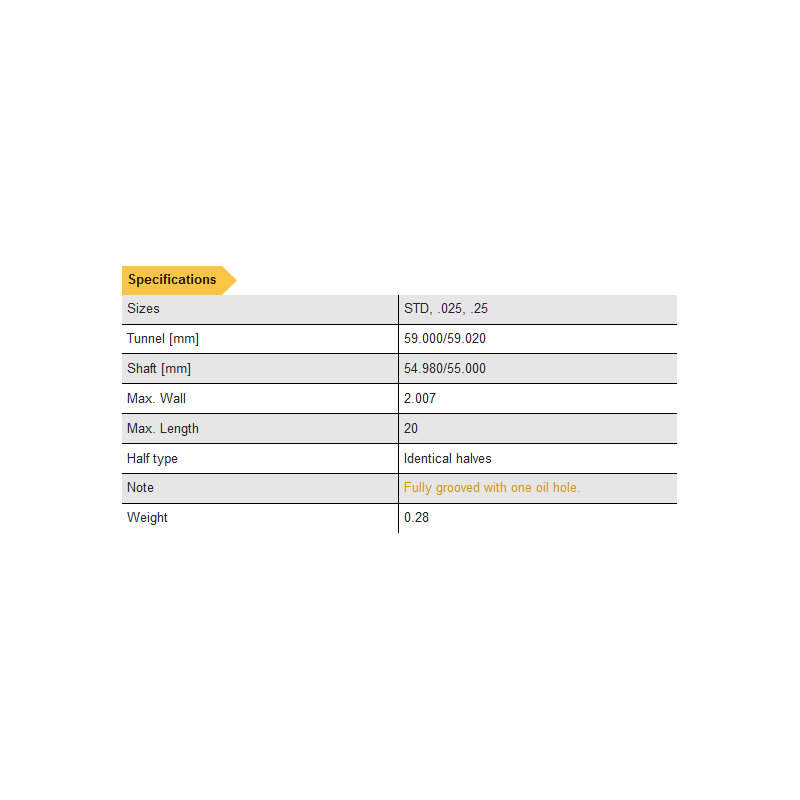

Information

Sizes	STD, .025, .25
Oil Clearance	Standard
Half Type	Identical Halves
Material	Tri-Metal
Min. Std Shaft Size	2.1646in / 54.980mm
Max. Std Shaft Size	2.1654in / 55.000mm
Min. Std Tunnel Size	2.3228in / 59.000mm
Max. Std Tunnel Size	2.3236in / 59.020mm
Max Wall at Crown	0.0790in / 2.007mm
Max Overall Length	0.7874in / 20.00mm
Weight	0.28
Notes	0

Honda 1.5 1.6 ACL Race connecting rod bearings 4B1956H-0.25

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1956H	4B1956HX
Sizes	STD, 025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.7709in / 44.98mm
Max Std Shaft Size	1.7717in / 45mm
Min Std Tunnel Size	1.8898in / 48mm
Max Std Tunnel Size	1.8906in / 48.02mm
Max Wall at Crown	0.0592in / 1.504mm	0.0587in /1.491 mm
Max Overall Length	0.7283in / 18.5mm
Notes

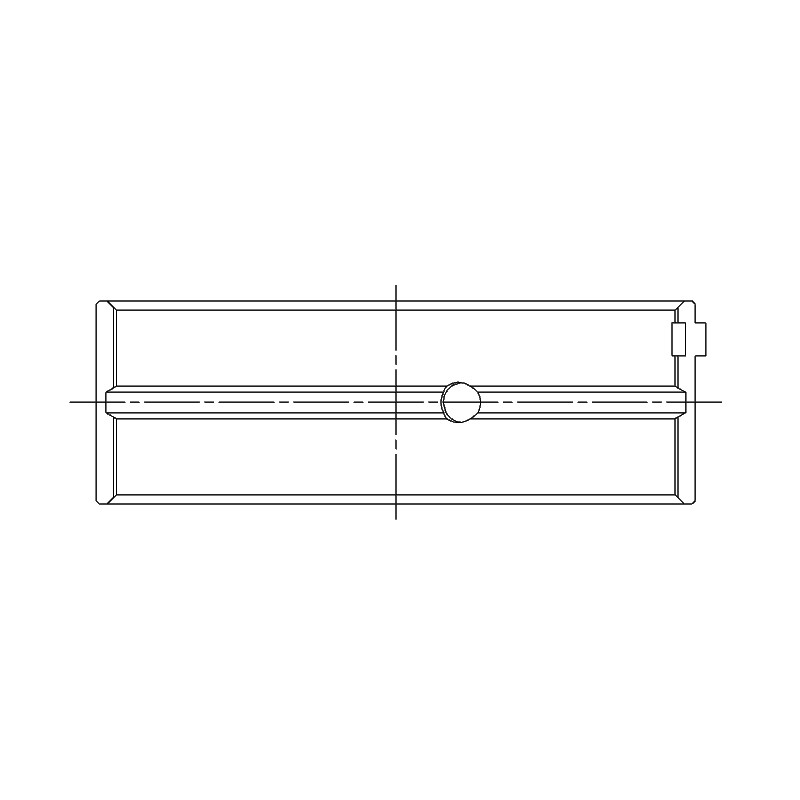

Diagram (Top View)

Engines Honda - 1.5 1.6 (D16A6, D16Y5, D16Y7, D16Y8, D16Z6)

€69.00

Honda 1.5 1.6 ACL Race connecting rod bearings 4B1956H-STD

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1956H	4B1956HX
Sizes	STD, 025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.7709in / 44.98mm
Max Std Shaft Size	1.7717in / 45mm
Min Std Tunnel Size	1.8898in / 48mm
Max Std Tunnel Size	1.8906in / 48.02mm
Max Wall at Crown	0.0592in / 1.504mm	0.0587in /1.491 mm
Max Overall Length	0.7283in / 18.5mm
Notes
Diagram (Top View)

Engines Honda - 1.5 1.6 (D16A6, D16Y5, D16Y7, D16Y8, D16Z6)

€69.00

Honda 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 ACL thrust washers 1T1957-STD

Part number 1T1957-STD
ACL thrust washers kit
Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 (D16A, D16B, D16W, D16Y, D16Z, A18A, ES, ET, A20A, B16A, B17A1, B18A1, B18B1, B18B2, B18A, B20A SOHC, B18C1, B18C2, B18C5, B18C7, B20A, B21A, B21A1 DOHC, B20B, B20Z, D17A, D17Z, K20A3, K20A2, K20Z1, K24A, K24Z1, H22A, H22Z, F23A, F23Z)

€15.00

Honda 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 King Racing thrust washers TW140AM

Part number TW140AM
King Racing thrust washers kit
Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 (D16A, D16B, D16W, D16Y, D16Z, A18A, ES, ET, A20A, B16A, B17A1, B18A1, B18B1, B18B2, B18A, B20A SOHC, B18C1, B18C2, B18C5, B18C7, B20A, B21A, B21A1 DOHC, B20B, B20Z, D17A, D17Z, K20A3, K20A2, K20Z1, K24A, K24Z1, H22A, H22Z, F23A, F23Z)

€12.00

Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race main bearings 5M1957H-0.25

Sizes	STD, .025, .25
Oil Clearance	Standard
Half Type	Identical Halves
Material	Tri-Metal
Min. Std Shaft Size	2.1646in / 54.980mm
Max. Std Shaft Size	2.1654in / 55.000mm
Min. Std Tunnel Size	2.3228in / 59.000mm
Max. Std Tunnel Size	2.3236in / 59.020mm
Max Wall at Crown	0.0790in / 2.007mm
Max Overall Length	0.7874in / 20.00mm
Weight	0.28
Notes	0

€92.00

Honda 1.6 1.7 1.8 2.0 ACL Race connecting rod bearings 4B1946H-STD

€63.00

Honda 1.6 1.7 1.8 2.0 ACL Race Series connecting rod bearings 4B1946H-0.25

€63.00

Honda 2.0 2.3 ACL Race connecting rod bearings 4B1906H-0.25

Sizes	STD, .025, .25, .50
Oil Clearance	Standard
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min. Std Shaft Size	1.7707in / 44.976mm
Max. Std Shaft Size	1.7717in / 45.000mm
Min. Std Tunnel Size	1.8898in / 48.000mm
Max. Std Tunnel Size	1.8907in / 48.024mm
Max Wall at Crown	0.0591in / 1.502mm
Max Overall Length	0.6102in / 15.50mm
Weight	0.12
Notes	0

€63.00

Honda 2.0 2.3 ACL Race connecting rod bearings 4B1906H-STD

Sizes	STD, .025, .25, .50
Oil Clearance	Standard
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min. Std Shaft Size	1.7707in / 44.976mm
Max. Std Shaft Size	1.7717in / 45.000mm
Min. Std Tunnel Size	1.8898in / 48.000mm
Max. Std Tunnel Size	1.8907in / 48.024mm
Max Wall at Crown	0.0591in / 1.502mm
Max Overall Length	0.6102in / 15.50mm
Weight	0.12
Notes	0

€63.00

Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race main bearings 5M1957H-STD
