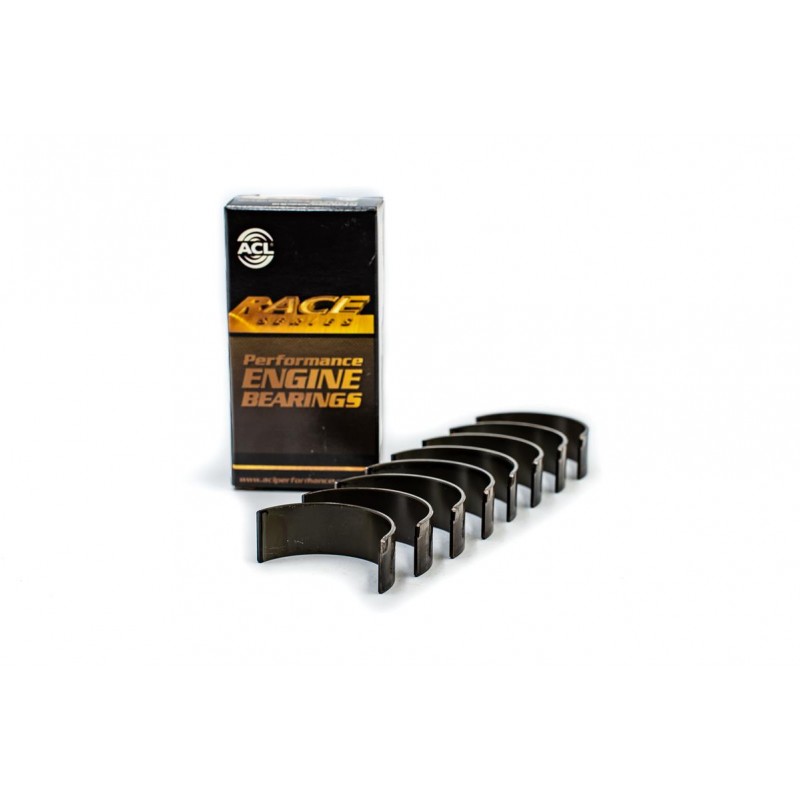

Mini Cooper S 1.6 Prince N12 N14 N16 N18 ACL Race Pleullagersatz 4B7787H-STD

Teilenummer 4B7787H-STD
ACL Race series Pleuellagersatz
Mini Cooper S MKII, R56 - 1.6 Prince (N12, N13, N14, N16, N18)
Peugeot, Citroen - 1.6 Prince (EP6, EP6C, EP6DT, EP6DTS)

119,00 €

Verfügbarkeit:5 Artikel

Das könnte dir auch gefallen

Mini Cooper 1.6 16V W11B16 King Racing Pleuellager CR4600XP-STD

Pairs & PN

XP	XP

C4600-PR	C4600-PR

Quantity

Crankshaft

46.007 / 45.992

Housing

48.999 / 49.019

Max Wall

1.488

Max Length

17.351

Engines Mini 1.6 16V (W11B16)

99,00 €

Mini Cooper S (MKII / R56) 1.6 16V N12 N14 N18 FCP H-Schaft...

Detailierte Productinformation

Hersteller: FCP Engineering
Model: FCPRHMI138534820
Profil: H-Schaft
C bis C: 138.53mm
Großer End Durchmesser: 48mm
Kleiner End Durchmesser: 20mm
Gemacht aus: Schmiedestahl 4340 EN24er
Quantität: 4 Stk., 8 Stk. ARP2000 5/16" Pleuelschrauben
Pleuel gut für: 600HP (4 Kolben) und 9000RPM
Passend für "Prince" Motor:
Citroen, Peugeot, Mini Cooper S (MKII / R56) - 1.6 16V Turbo (N12B16A, N14B16A, N18B16A/B/C)

439,00 €

Mini Cooper S MKII 1.6 16V N12 N14 Wiseco Schmiedekolben CR 10.1 77mm KE259M77

Product detailed specification
Bore size	77.00mm
Stroke	85.80mm
Wiseco compression ratio (CR)	10.1:1
OEM compression ratio (CR)	11.0:1/10.5:1
Dome volume (CC)	+1cm³
Compression height (CH)	28.50mm
Pin diameter	20mm
Features	Round piston skirt
Fits for	Mini Cooper S MKII - 1.6 16V (N12B16A, N14B16A)

Wiseco ArmorGlide skirt coating is a dry film lubricant applied to the piston skirt. This coating helps reduce friction, improving performance, and will also help quiet the piston in the cylinder bore. This coating is permanently applied, and is not a break in coating, it is on the piston for the life of the part.

829,00 €

Mini Cooper S R56 1.6 Prince N12 N14 N16 N18 ACL Race Series Hauptlager...

175,00 €

Mini Cooper R56 Prince Motoren Supertech Ventilfedersatz SPRK-MC56BE

Springs data:

Seat pressure - 70lbs @ 33.6mm
Open (lift) pressure - 163lbs @ 10mm
Spring coil bind - 22.20mm
Rate - 9.70lbs/mm
Max lift - 11.40mm
Outer diameter: 23.50mm/16.50mm
Inner diameter: 19.30mm/12.30mm

Set includes:
Beehive springs: 16 pcs. SPR-MC56BE
Titanium retainers: 16 pcs. RET-MC56/T1

630,00 €

Mini Cooper S R56 1.6 Prince N12 N14 N16 N18 ACL Anlaufscheiben Satz 1T7788-STD

15,00 €
