Teilenummer FCPRHB14553622

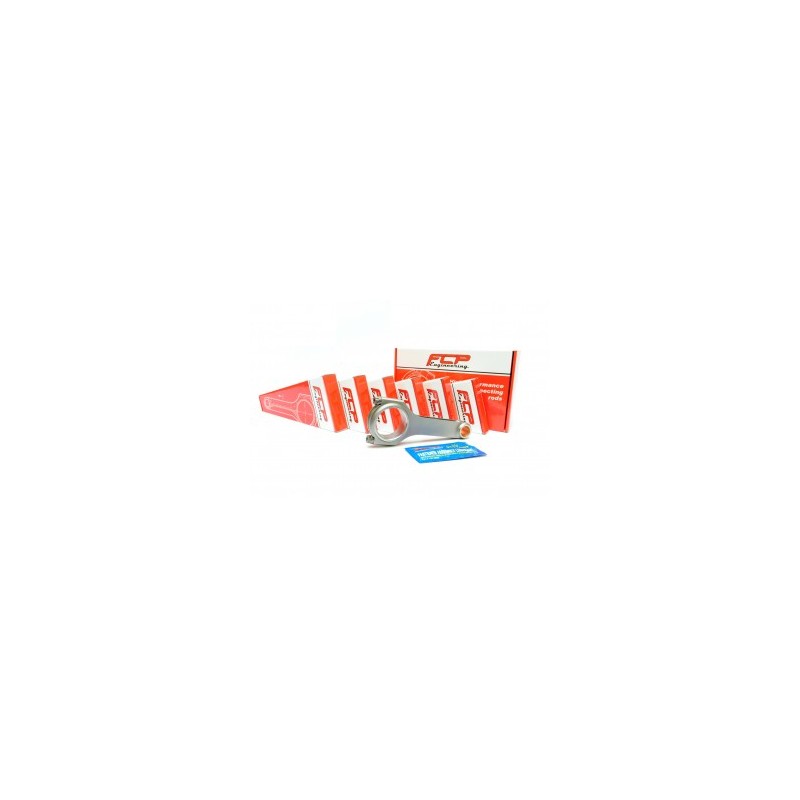

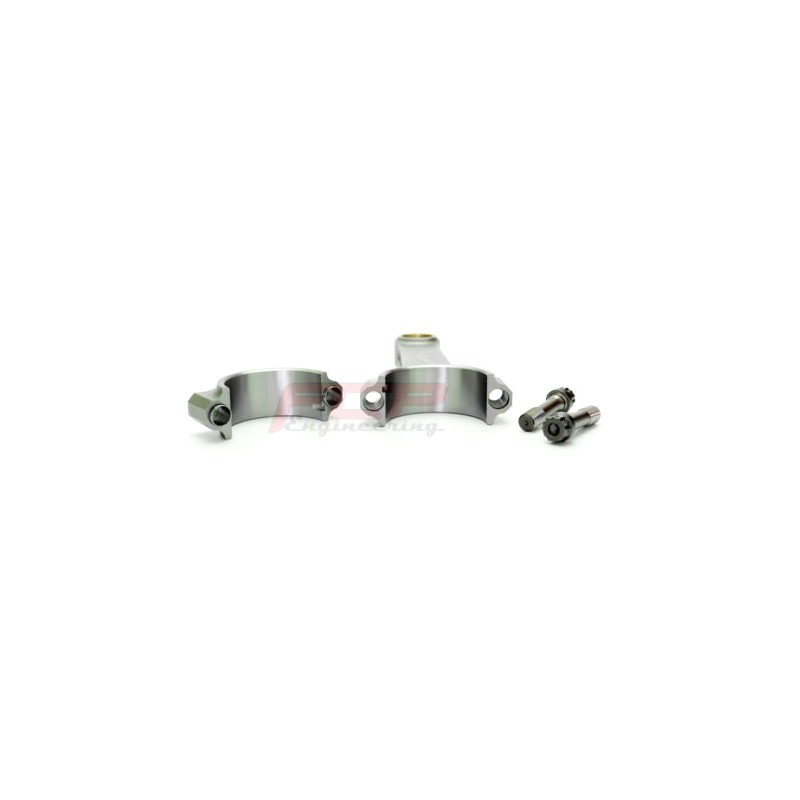

FCP Engineering H-Schaft Stahlpleuel Satz 145mm für Aftermarket Kolben
BMW E90, E91, E92, E93, E82, E88, E89, X6, Z4, F01 - 3.0 (N54B30)
Detailierte Productinformation
Hersteller: FCP Engineering
Model: FCPRHB14553622
Profil: H-Schaft
C bis C: 145mm
Großer End Durchmesser: 53.6mm
Kleiner End Durchmesser: 22mm
Gemacht aus: Schmiedestahl 4340 EN24er

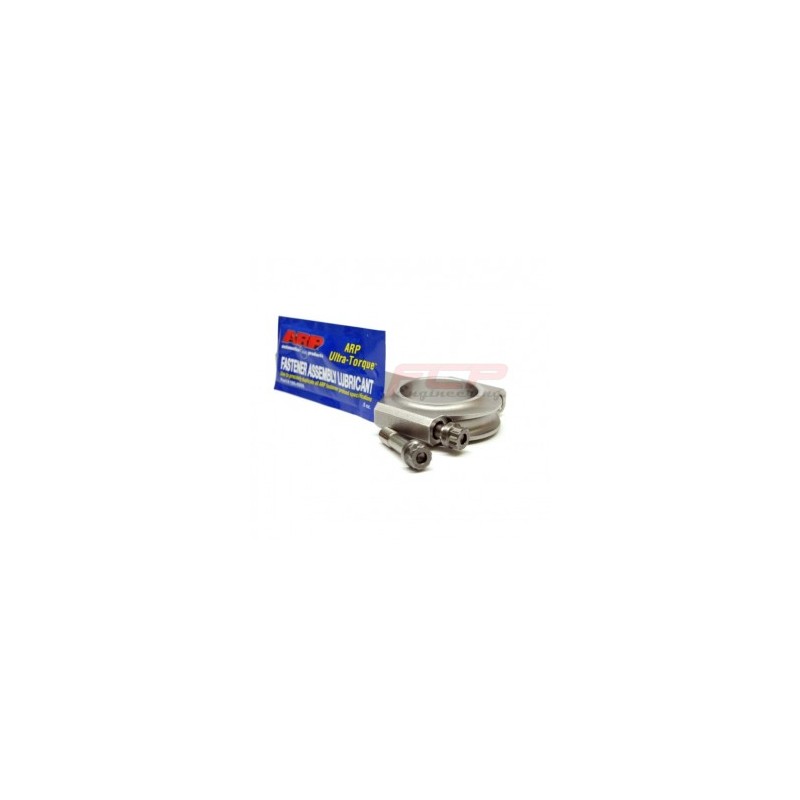

Quantität: 6 Stk., 12 Stk. ARP2000 Pleuelschrauben
Pleuel gut für: 1000HP (6 Kolben) und 9000RPM
BMW E90, E91, E92, E93, E82, E88, E89, X6, Z4, F01 (N54B30)
|
Product detailed specification |
|
|
Bore size |
84.00mm |
|
Stroke |
89.60mm |
|
JE Pistons compression ratio (CR) |
9.5:1 |
|
OEM compression ratio (CR) |
10.2:1 |
|
Dome volume (CC) |
-21.3cm3 |
|
Compression height (CH) |
31.60mm |
|
Pin diameter |
22mm |
|
Features |
Accepts Turbo and Nitrous; FSR skirt |
|
Fits for |
BMW - 3.0 24V Turbo (N54B30) |
Spring data:
Seat pressure - 75lbs @ 36.50mm
Open (lift) pressure - 155lbs @ 10.00mm
Spring coil bind - 23.20mm
Max lift - 12mm
Rate - 8 lbs./mm
Wide end spring outer diameter - 24.40mm
Wide end spring inner diameter - 17.60mm
Narrow end spring outer diameter - 21.00mm
Narrow end spring inner diameter - 14.30mm
Kit includes:
Single springs - 24 pcs. SPR-FE20N54-BE
Retainers - 12 pcs. RET-BMN54-TI (5mm)
Retainers - 12 pcs. RET-BMN54-TE (6mm)
