Prekės kodas FCPRHB14553622

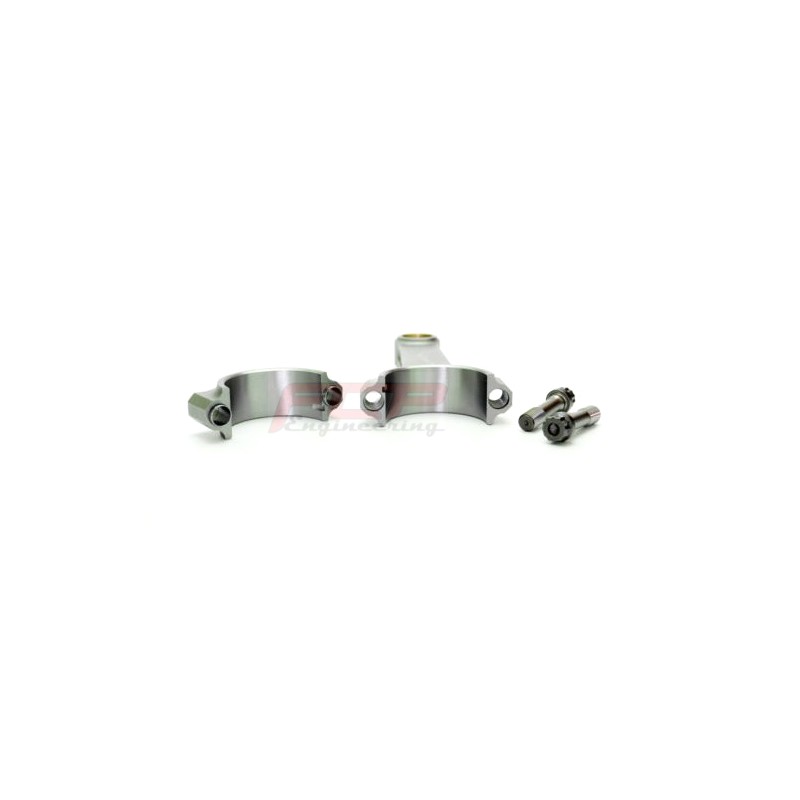

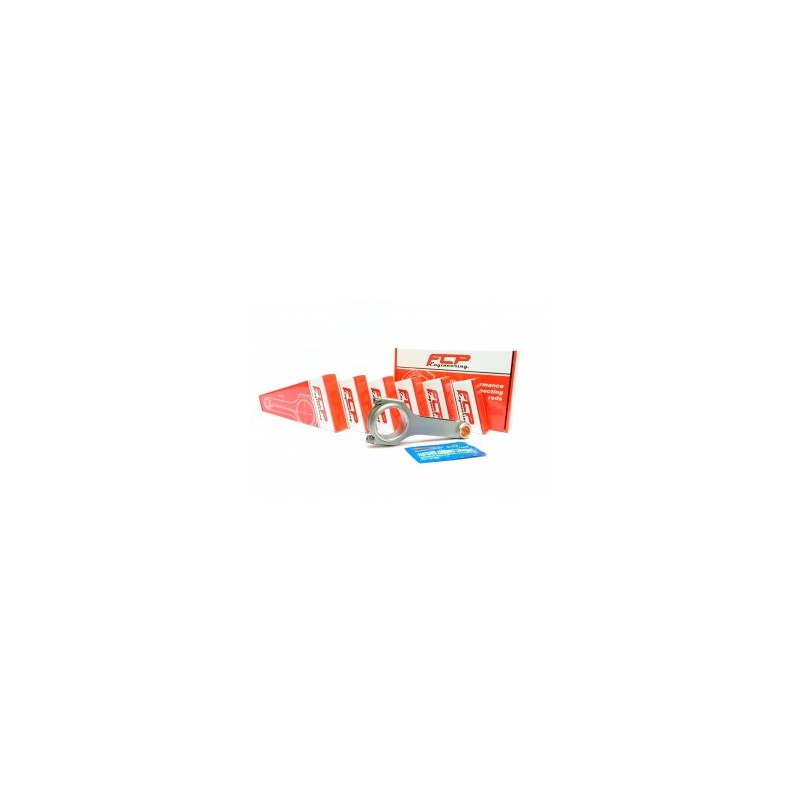

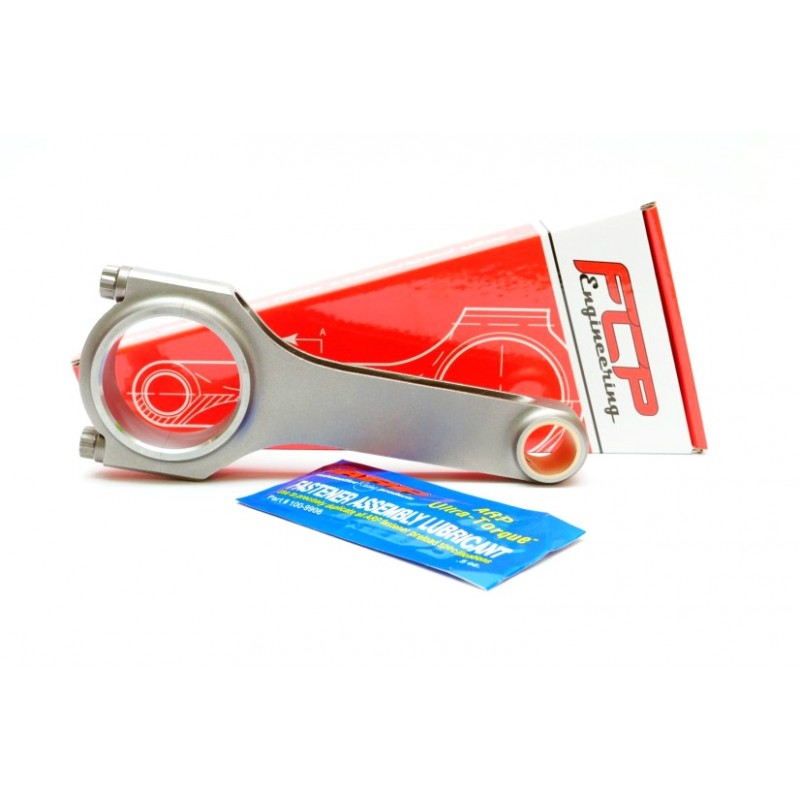

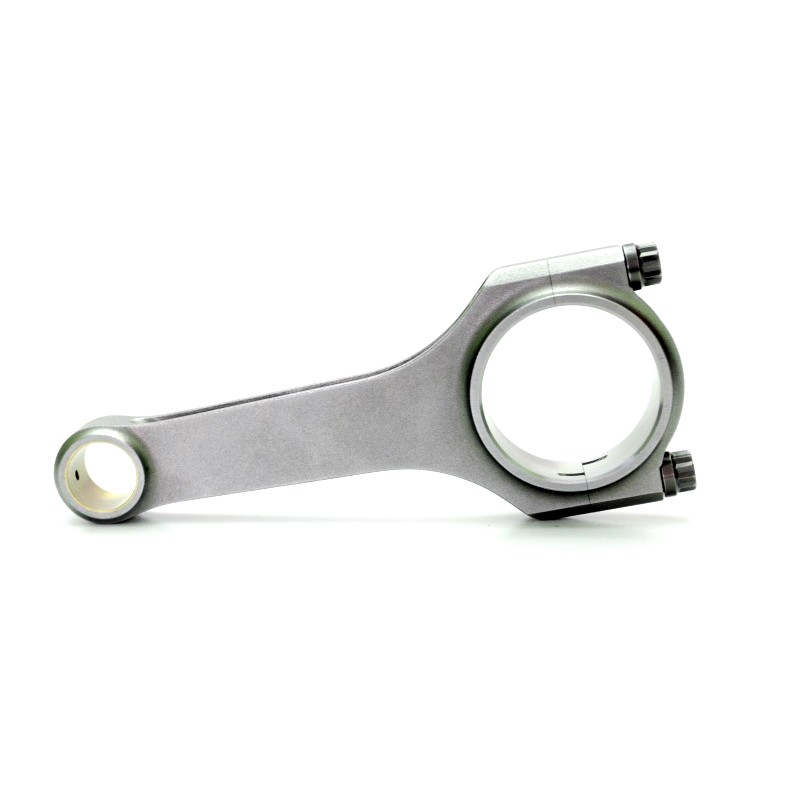

FCP Engineering H-profilio plieniniai kaltiniai švaistikliai 145mm aftermarket stūmokliams
BMW E90, E91, E92, E93, E82, E88, E89, X6, Z4, F01 - 3.0 (N54B30)
Detali informacija
Gamintojas: FCP Engineering
Modelis: FCPRHB14553622
Profilis: H
Ilgis tarp centrų: 145mm
Didžiosios skylės diametras: 53.6mm
Piršto diametras: 22mm

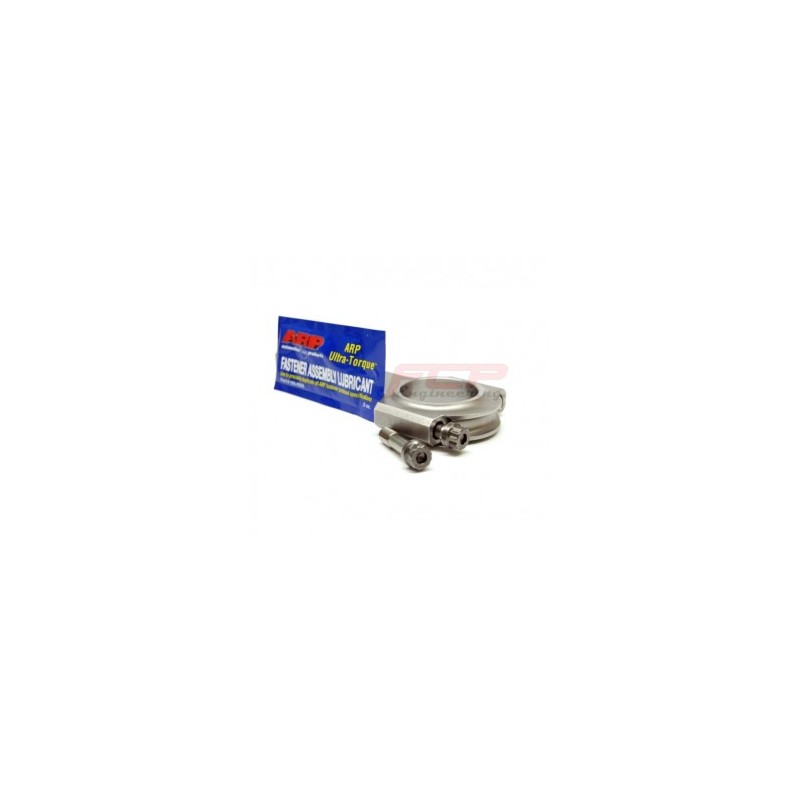

Kiekis: 6 vnt., 12 vnt. ARP2000 varžtų
Pagaminta iš: kaltinio plieno 4340 EN24er
Rekomenduojama maksimali variklio galia: 1000AG (6 cilindrams)
Maksimalūs variklio sūkiai: 9000rpm
BMW E90, E91, E92, E93, E82, E88, E89, X6, Z4, F01 (N54B30)
|
Product detailed specification |
|
|
Bore size |
84.00mm |
|
Stroke |
89.60mm |
|
JE Pistons compression ratio (CR) |
9.5:1 |
|
OEM compression ratio (CR) |
10.2:1 |
|
Dome volume (CC) |
-21.3cm3 |
|
Compression height (CH) |
31.60mm |
|
Pin diameter |
22mm |
|
Features |
Accepts Turbo and Nitrous; FSR skirt |
|
Fits for |
BMW - 3.0 24V Turbo (N54B30) |
Spring data:
Seat pressure - 75lbs @ 36.50mm
Open (lift) pressure - 155lbs @ 10.00mm
Spring coil bind - 23.20mm
Max lift - 12mm
Rate - 8 lbs./mm
Wide end spring outer diameter - 24.40mm
Wide end spring inner diameter - 17.60mm
Narrow end spring outer diameter - 21.00mm
Narrow end spring inner diameter - 14.30mm
Kit includes:
Single springs - 24 pcs. SPR-FE20N54-BE
Retainers - 12 pcs. RET-BMN54-TI (5mm)
Retainers - 12 pcs. RET-BMN54-TE (6mm)
