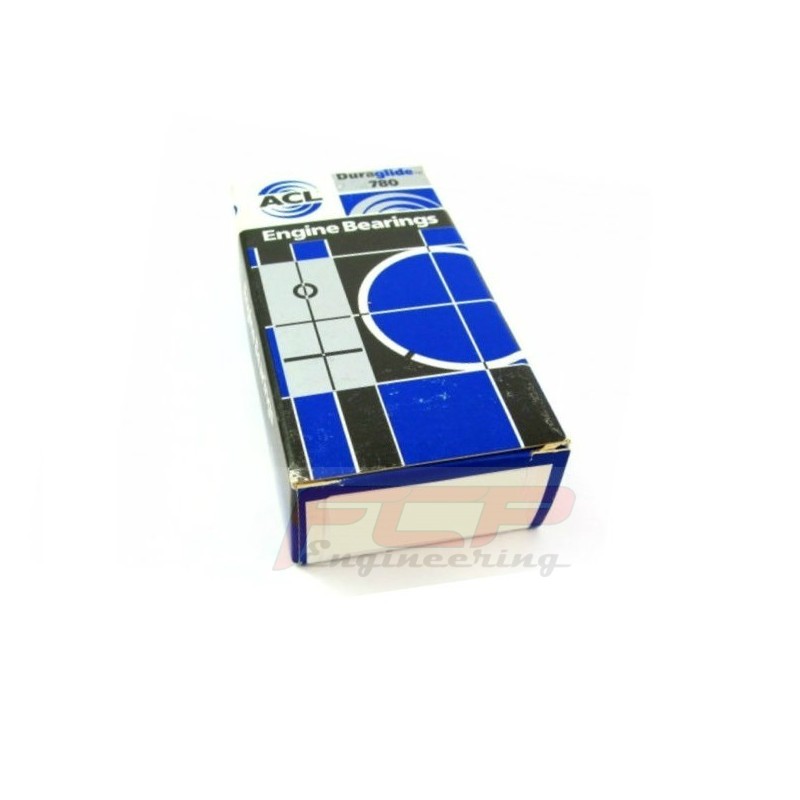

| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 4B1606H |
4B1606HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
|
Diagram |
 |
|
Engines Audi 2.2 2.3 20V (incl. Turbo) S2, RS2, 200, S4, S6. 3B, 7A, AAN, ADU, ABY.
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1606H |
4B1606HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
|
Diagram |
|
|
Engines Audi 2.2 2.3 20V (incl. Turbo) S2, RS2, 200, S4, S6. 3B, 7A, AAN, ADU, ABY
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1606H |
4B1606HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
|
Diagram |
|
|
Engines Audi 2.2 2.3 20V (incl. Turbo) S2, RS2, 200, S4, S6. 3B, 7A, AAN, ADU, ABY.
Velenėlio žvaigždės duomenys:
• Aukštos kokybės reguliuojama paskirstymo velenėlio aliuminio lydinio žvaigždė.
• Komplekte yra žvaigžės užfiksavimo šplintas.
• Žvaigždė turi Holo daviklio skaičiuoklę.
• Plotis 21mm.
• Juodai anoduota.
Skriemulio duomenys:
• Šis sustiprinto lydinio alkūninio veleno skriemulys specialiai pagamintas galingiems varikliams su turbo pripūtimu, nes originali žvaigždė neatlaiko apkrovos
• Originalus kodas: 034105263A
• Medžiaga: 42CrMo4
Ilgis: 1208mm
Plotis: 19mm
Dantų skaičius: 151
Komplekte yra:
1 karterio tarpinė
1 alkūninio veleno galinis riebokšlis
1 alkūninio veleno priekinis riebokšlis
1 tepalo siurblio tarpinė
1 aušinimo skysčio siurblio tarpinė
ir kt.
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1606H |
4B1606HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
|
Diagram |
|
|
Engines Audi 2.2 2.3 20V (incl. Turbo) S2, RS2, 200, S4, S6. 3B, 7A, AAN, ADU, ABY
