Audi / VW 1.6 1.8 2.0 ACL Race Calico švaistikliniai indėklai 4B1606HC-STD

Prekės kodas 4B1606HC-STD
ACL Race Series švaistikliniai indėklai su Calico CT-1 padengimu
Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications, 1983-2003)

135,00 EUR

Prieinamumas:3 prekių

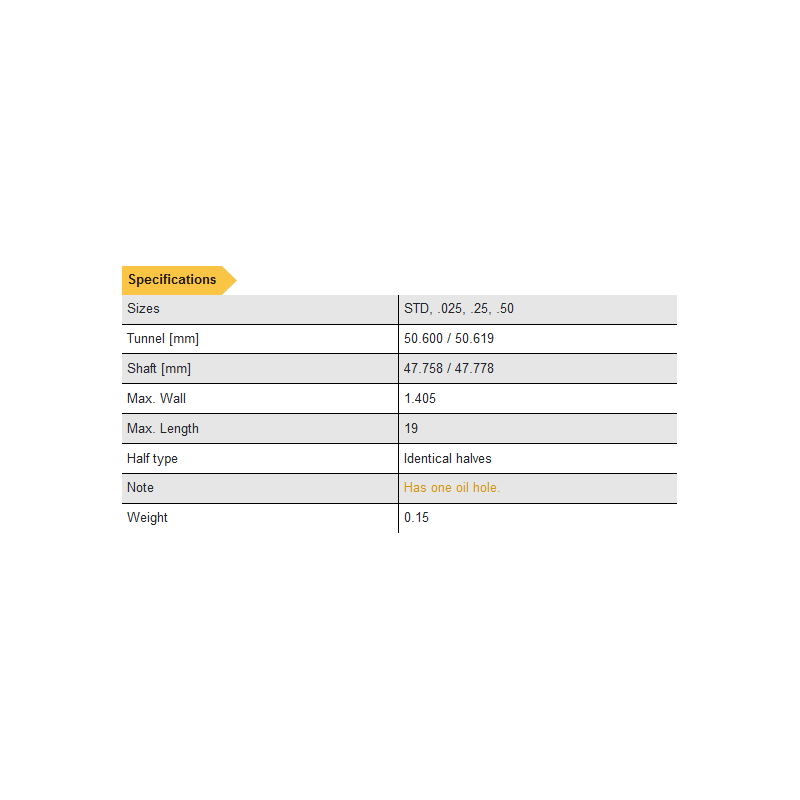

Informacija

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1606H	4B1606HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8802" /47.758mm
Max Std Shaft Size	1.8810" /47.778mm
Min Std Tunnel Size	1.9921" /50.600mm
Max Std Tunnel Size	1.9929" /50.619mm
Max Wall at Crown	0.0553" / 1.405mm	0.0548" /1.392mm
Max Overall Length	0.748" / 19.00mm
Notes	Bearing has 1.65mm oil hole at crown

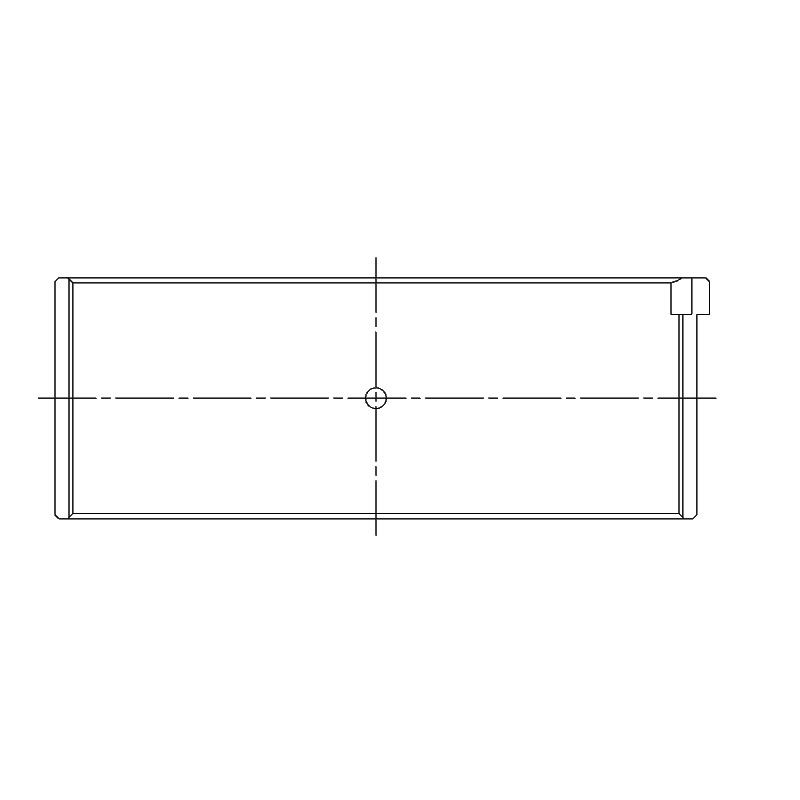

Diagram (Top View)

CT-1 is a Dry Film Lubricant coating that helps reduce friction and abrasive wear. It provides intermittent dry lubrication and is not affected by dust or dirt. CT-1 is specifically engineered to withstand the extreme conditions of today's high performance engines. Professional engine builders enjoy a higher level of confidence with increased embedability, strength and durability.

Jums taip pat gali patikti

Audi / VW 1.8 2.0 16V KR PL, 1.8T 20V FCP H-profilio kaltiniai švaistikliai...

Detali informacija

Gamintojas: FCP Engineering
Modelis: FCPRHA14450620-4
Profilis: H
Ilgis tarp centrų: 144mm
Didžiosios skylės diametras: 50.6mm
Piršto diametras: 20mm
Kiekis: 4 vnt., 8 vnt. ARP2000 varžtų
Pagaminta iš: kaltinio plieno 4340 EN24er
Rekomenduojama maksimali variklio galia: 600AG (4 cilindrams)
Maksimalūs variklio sūkiai: 9000RPM
Audi / VW / Seat / Skoda:
1.8T 20V (AEB, BAM, AWB ir kt.)
1.8 2.0 16V (KR, PL, 9A)

439,00 EUR

Audi / VW 2.0 8V, 2.0 16V ABF, AAD, 2E FCP kaltiniai švaistikliai 159mm

Audi / VW 2.0 8V-16V ABF AAD 2E FCP H-profilio kaltiniai švaistikliai 159mm

Detali informacija

Gamintojas: FCP Engineering
Modelis: FCPRHVW15950621-4
Profilis: H
Ilgis tarp centrų: 159mm
Didžiosios skylės diametras: 50.6mm
Piršto diametras: 21mm
Kiekis: 4 vnt., 8 vnt. ARP2000 varžtų
Pagaminta iš: kaltinio plieno 4340 EN24er
Rekomenduojama maksimali variklio galia: 600AG (4 cilindrams)
Maksimalūs variklio sūkiai: 9000RPM
Audi / VW 2.0 8V, 2.0 16V varikliams su 236mm bloku (ABF, ABA, AAD, 2E)

439,00 EUR

Audi / VW 1.6 1.8 2.0 ACL Race švaistikliniai indėklai 4B1606HX-STD

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1606H	4B1606HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8802" /47.758mm
Max Std Shaft Size	1.8810" /47.778mm
Min Std Tunnel Size	1.9921" /50.600mm
Max Std Tunnel Size	1.9929" /50.619mm
Max Wall at Crown	0.0553" / 1.405mm	0.0548" /1.392mm
Max Overall Length	0.748" / 19.00mm
Notes	Bearing has 1.65mm oil hole at crown
Diagram (Top View)

Engines Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications, 1983-2003)

72,00 EUR

Audi / VW 1.6 1.8 2.0 ACL Race švaistikliniai indėklai 4B1606H-0.25

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1606H	4B1606HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8802" /47.758mm
Max Std Shaft Size	1.8810" /47.778mm
Min Std Tunnel Size	1.9921" /50.600mm
Max Std Tunnel Size	1.9929" /50.619mm
Max Wall at Crown	0.0553" / 1.405mm	0.0548" /1.392mm
Max Overall Length	0.748" / 19.00mm
Notes	Bearing has 1.65mm oil hole at crown
Diagram (Top View)

Engines Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications, 1983-2003)

72,00 EUR

Audi / VW 1.6 1.8 2.0 ACL Race švaistikliniai indėklai 4B1606H-STD

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1606H	4B1606HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8802" /47.758mm
Max Std Shaft Size	1.8810" /47.778mm
Min Std Tunnel Size	1.9921" /50.600mm
Max Std Tunnel Size	1.9929" /50.619mm
Max Wall at Crown	0.0553" / 1.405mm	0.0548" /1.392mm
Max Overall Length	0.748" / 19.00mm
Notes	Bearing has 1.65mm oil hole at crown
Diagram (Top View)

Engines Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications, 1983-2003)

72,00 EUR

Audi 5M1644H-STD 1.6 1.8 2.0 pagrindiniai indėklai

Audi / VW 1.8 2.0 16V-20V ACL Race pagrindiniai indėklai 5M1644H-STD

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	5M1644H	5M1644HX
Sizes	STD, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.1243in / 53.958mm
Max Std Shaft Size	2.1251in / 53.978mm
Min Std Tunnel Size	2.3228in / 59.000mm
Max Std Tunnel Size	2.3236in / 59.019mm
Max Wall at Crown	0.0985in / 2.502mm	0.0980in / 2.489mm
Max Overall Length	0.728in / 18.49mm
Notes	Set contain 6 x 1648H and 4 x 1644H shells. Use 1648H shell in #4 position as upper and lower.
Diagram (Top View)

Engines VAG group 4 cylinder engines 1.6 1.8 2.0 16-20V (KR, PL, AEB, etc.)

79,00 EUR

Audi / VW 1.8 2.0 16V-20V ACL Race pagrindiniai indėklai 5M1644H-0.25

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	5M1644H	5M1644HX
Sizes	STD, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.1243in / 53.958mm
Max Std Shaft Size	2.1251in / 53.978mm
Min Std Tunnel Size	2.3228in / 59.000mm
Max Std Tunnel Size	2.3236in / 59.019mm
Max Wall at Crown	0.0985in / 2.502mm	0.0980in / 2.489mm
Max Overall Length	0.728in / 18.49mm
Notes	Set contain 6 x 1648H and 4 x 1644H shells. Use 1648H shell in #4 position as upper and lower.
Diagram (Top View)

Engines VAG group 4 cylinder engines 1.6 1.8 2.0 16-20V (KR, PL, AEB, etc.)

79,00 EUR

Audi / VW 1.8 2.0 16V-20V ACL Race pagrindiniai indėklai 5M1644HX-STD

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	5M1644H	5M1644HX
Sizes	STD, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.1243in / 53.958mm
Max Std Shaft Size	2.1251in / 53.978mm
Min Std Tunnel Size	2.3228in / 59.000mm
Max Std Tunnel Size	2.3236in / 59.019mm
Max Wall at Crown	0.0985in / 2.502mm	0.0980in / 2.489mm
Max Overall Length	0.728in / 18.49mm
Notes	Set contain 6 x 1648H and 4 x 1644H shells. Use 1648H shell in #4 position as upper and lower.
Diagram (Top View)

Engines VAG group 4 cylinder engines 1.6 1.8 2.0 16-20V (KR, PL, AEB, etc.)

79,00 EUR

Audi / VW 1.6 1.8 2.0 ACL Race švaistikliniai indėklai 4B1606H-0.50

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1606H	4B1606HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8802" /47.758mm
Max Std Shaft Size	1.8810" /47.778mm
Min Std Tunnel Size	1.9921" /50.600mm
Max Std Tunnel Size	1.9929" /50.619mm
Max Wall at Crown	0.0553" / 1.405mm	0.0548" /1.392mm
Max Overall Length	0.748" / 19.00mm
Notes	Bearing has 1.65mm oil hole at crown
Diagram (Top View)

Engines Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications, 1983-2003)

72,00 EUR

Audi / VW 1.8 2.0 16V-20V ACL Race Calico pagrindiniai indėklai 5M1644HC-STD

Engines VAG group 4 cylinder engines 1.6 1.8 2.0 16-20V (KR, PL, AEB, etc.)

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	5M1644H	5M1644HX
Sizes	STD, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.1243in / 53.958mm
Max Std Shaft Size	2.1251in / 53.978mm
Min Std Tunnel Size	2.3228in / 59.000mm
Max Std Tunnel Size	2.3236in / 59.019mm
Max Wall at Crown	0.0985in / 2.502mm	0.0980in / 2.489mm
Max Overall Length	0.728in / 18.49mm
Notes	Set contain 6 x 1648H and 4 x 1644H shells. Use 1648H shell in #4 position as upper and lower.
Diagram (Top View)

179,00 EUR
