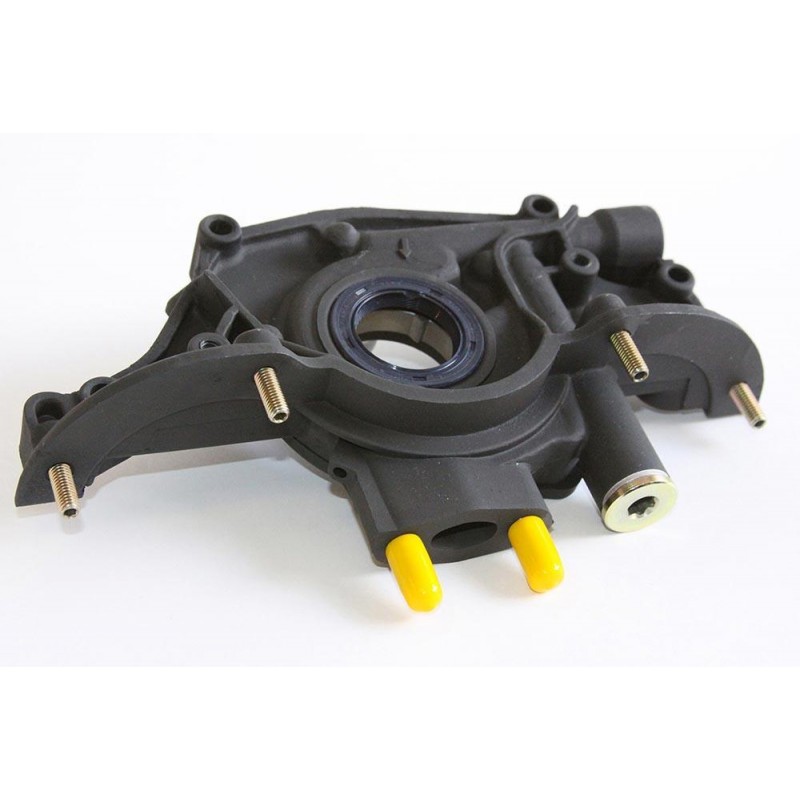

ACL race series tepalo siurblys Honda D15 / D16A6 / D16Z6 OPHD1040HP

Prekės kodas OPHD1040HP
ACL Race Series tepalo siurblys
Honda D15A, D15B1, D15B2, D15B6, D15B7, D15B8, D15Z1, D16A6, D16Z6

269,00 EUR

Prieinamumas:1 prekių

Informacija

Orbit performance oil pumps are designed with high output and volume capabilities required for high RPM performance engines. The gerotors are precision machined from steel-copper alloy (FC0205), an exceptionally durable metal that assures dependability and durability. Tight housing and gerotor tolerances provide optimum pressure and flow requirements. Housings are die cast DC-12 aluminum and are anodized to prevent corrosion. All pumps are individually inspected and tested.

Jums taip pat gali patikti

Honda 1.5 1.6 ACL Race švaistikliniai indėklai 4B1956H-STD

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1956H	4B1956HX
Sizes	STD, 025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.7709in / 44.98mm
Max Std Shaft Size	1.7717in / 45mm
Min Std Tunnel Size	1.8898in / 48mm
Max Std Tunnel Size	1.8906in / 48.02mm
Max Wall at Crown	0.0592in / 1.504mm	0.0587in /1.491 mm
Max Overall Length	0.7283in / 18.5mm
Notes
Diagram (Top View)

Engines Honda - 1.5 1.6 (D16A6, D16Y5, D16Y7, D16Y8, D16Z6)

69,00 EUR

Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race pagrindiniai indėklai 5M1957H-STD

Sizes	STD, .025, .25
Oil Clearance	Standard
Half Type	Identical Halves
Material	Tri-Metal
Min. Std Shaft Size	2.1646in / 54.980mm
Max. Std Shaft Size	2.1654in / 55.000mm
Min. Std Tunnel Size	2.3228in / 59.000mm
Max. Std Tunnel Size	2.3236in / 59.020mm
Max Wall at Crown	0.0790in / 2.007mm
Max Overall Length	0.7874in / 20.00mm
Weight	0.28
Notes	0

92,00 EUR

Honda 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 ACL šoniniai indėklai 1T1957-STD

Prekės kodas 1T1957-STD
ACL šoninių indėklų komplektas
Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 (D16A, D16B, D16W, D16Y, D16Z, A18A, ES, ET, A20A, B16A, B17A1, B18A1, B18B1, B18B2, B18A, B20A SOHC, B18C1, B18C2, B18C5, B18C7, B20A, B21A, B21A1 DOHC, B20B, B20Z, D17A, D17Z, K20A3, K20A2, K20Z1, K24A, K24Z1, H22A, H22Z, F23A, F23Z)

15,00 EUR

Honda 1.6 2.0 King Racing švaistikliniai indėklai CR4046XPC-STD Coated

XP	XP

C4046	C4046

Quantity

Crankshaft

45.001 / 44.981

Housing

48.001 / 48.019

Max Wall

1.499

Max Length

18.499

Engines: Honda - 1.6 2.0 (D16A, D16B, D16Y5, D16Y7, D16Y8, D16Z6, ZC, B20B4, B20Z2)

69,00 EUR

Honda MB5568XP 1.6 1.7 1.8 2.0 2.1 2.2 2.3 pagrindiniai indėklai

Honda 1.6 1.7 1.8 2.0 2.1 2.2 2.3 King Racing pagrindiniai indėklai MB5568XP-STD

XP	XP

M5568-PR	M5568-PR

Quantity

Crankshaft

55.001 / 54.981

Housing

58.999 / 59.019

Max Wall

1.999

Max Length

20.000

Engines: Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 (B18A (1834cc); B20A3, B20A4, B20A5, B20A7, B20A8, B20A9, B21A, B20A6 (1958cc); D16A3, D16A6, D16A7, D16A8, D16A9, D16Y1, D16Y4, D16Y5, D16Y7, D16Y8, D16Z2, D16Z5, D16W1 (1590cc), D17A, D17Z, F23A, F23Z, H22A, H22Z, B21A1)

87,00 EUR

Honda 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 King Racing šoniniai indėklai TW140AM

Prekės kodas TW140AM
King Racing šoninių indėklų komplektas
Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 (D16A, D16B, D16W, D16Y, D16Z, A18A, ES, ET, A20A, B16A, B17A1, B18A1, B18B1, B18B2, B18A, B20A SOHC, B18C1, B18C2, B18C5, B18C7, B20A, B21A, B21A1 DOHC, B20B, B20Z, D17A, D17Z, K20A3, K20A2, K20Z1, K24A, K24Z1, H22A, H22Z, F23A, F23Z)

12,00 EUR

Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race pagrindiniai indėklai 5M1957H-0.25

Sizes	STD, .025, .25
Oil Clearance	Standard
Half Type	Identical Halves
Material	Tri-Metal
Min. Std Shaft Size	2.1646in / 54.980mm
Max. Std Shaft Size	2.1654in / 55.000mm
Min. Std Tunnel Size	2.3228in / 59.000mm
Max. Std Tunnel Size	2.3236in / 59.020mm
Max Wall at Crown	0.0790in / 2.007mm
Max Overall Length	0.7874in / 20.00mm
Weight	0.28
Notes	0

92,00 EUR

Honda 1.6 D16Y ARP cilindrų galvos smeigės 208-4305

ARP - gamintojas, kuris siūlo plačią varžtų ir smeigių gamą jūsų automobiliui. ARP pasižymi aukštos technologijos gaminiais, skirtais automobilių sportui.

212,00 EUR

Honda 1.5 1.6 ACL Race švaistikliniai indėklai 4B1956H-0.25

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1956H	4B1956HX
Sizes	STD, 025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.7709in / 44.98mm
Max Std Shaft Size	1.7717in / 45mm
Min Std Tunnel Size	1.8898in / 48mm
Max Std Tunnel Size	1.8906in / 48.02mm
Max Wall at Crown	0.0592in / 1.504mm	0.0587in /1.491 mm
Max Overall Length	0.7283in / 18.5mm
Notes
Diagram (Top View)

Engines Honda - 1.5 1.6 (D16A6, D16Y5, D16Y7, D16Y8, D16Z6)

69,00 EUR
