Teilenummer OPHD1040HP

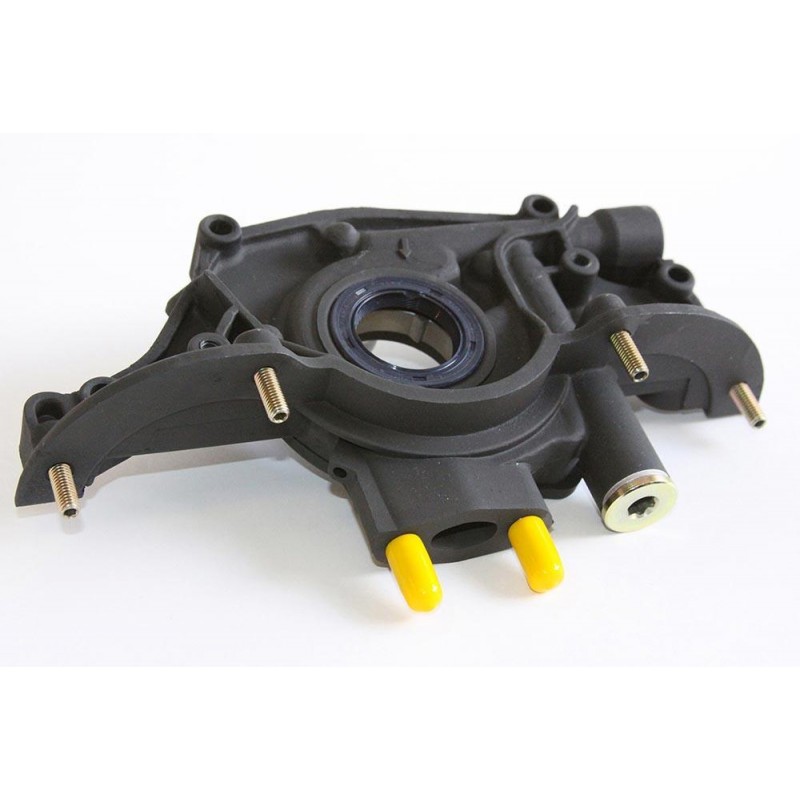

ACL Race Serie Ölpumpe
Honda D15A, D15B1, D15B2, D15B6, D15B7, D15B8, D15Z1, D16A6, D16Z6
Orbit performance oil pumps are designed with high output and volume capabilities required for high RPM performance engines. The gerotors are precision machined from steel-copper alloy (FC0205), an exceptionally durable metal that assures dependability and durability. Tight housing and gerotor tolerances provide optimum pressure and flow requirements. Housings are die cast DC-12 aluminum and are anodized to prevent corrosion. All pumps are individually inspected and tested.
| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 4B1956H |
4B1956HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7709in / 44.98mm |
|
| Max Std Shaft Size |
1.7717in / 45mm |
|
| Min Std Tunnel Size |
1.8898in / 48mm |
|
| Max Std Tunnel Size |
1.8906in / 48.02mm |
|
| Max Wall at Crown |
0.0592in / 1.504mm |
0.0587in /1.491 mm |
| Max Overall Length |
0.7283in / 18.5mm |
|
| Notes | ||
|
Diagram |
 |
|
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1956H |
4B1956HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7709in / 44.98mm |
|
| Max Std Shaft Size |
1.7717in / 45mm |
|
| Min Std Tunnel Size |
1.8898in / 48mm |
|
| Max Std Tunnel Size |
1.8906in / 48.02mm |
|
| Max Wall at Crown |
0.0592in / 1.504mm |
0.0587in /1.491 mm |
| Max Overall Length |
0.7283in / 18.5mm |
|
| Notes | ||
|
Diagram |
|
|
Teilenummer 1T1957-STD
ACL Anlaufscheibe Kit
Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 (D16A, D16B, D16W, D16Y, D16Z, A18A, ES, ET, A20A, B16A, B17A1, B18A1, B18B1, B18B2, B18A, B20A SOHC, B18C1, B18C2, B18C5, B18C7, B20A, B21A, B21A1 DOHC, B20B, B20Z, D17A, D17Z, K20A3, K20A2, K20Z1, K24A, K24Z1, H22A, H22Z, F23A, F23Z)
Teilenummer TW140AM
King Racing Anlaufscheiben
Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 (D16A, D16B, D16W, D16Y, D16Z, A18A, ES, ET, A20A, B16A, B17A1, B18A1, B18B1, B18B2, B18A, B20A SOHC, B18C1, B18C2, B18C5, B18C7, B20A, B21A, B21A1 DOHC, B20B, B20Z, D17A, D17Z, K20A3, K20A2, K20Z1, K24A, K24Z1, H22A, H22Z, F23A, F23Z)
|
|||||||
| Quantity | 5 | ||||||
| Crankshaft | 55.001 / 54.981 | ||||||
| Housing | 58.999 / 59.019 | ||||||
| Max Wall | 1.999 | ||||||
| Max Length | 20.000 |
| Sizes | STD, .025, .25 |
| Oil Clearance | Standard |
| Half Type | Identical Halves |
| Material | Tri-Metal |
| Min. Std Shaft Size | 2.1646in / 54.980mm |
| Max. Std Shaft Size | 2.1654in / 55.000mm |
| Min. Std Tunnel Size | 2.3228in / 59.000mm |
| Max. Std Tunnel Size | 2.3236in / 59.020mm |
| Max Wall at Crown | 0.0790in / 2.007mm |
| Max Overall Length | 0.7874in / 20.00mm |
| Weight | 0.28 |
| Notes | 0 |
| Sizes | STD, .025, .25 |
| Oil Clearance | Standard |
| Half Type | Identical Halves |
| Material | Tri-Metal |
| Min. Std Shaft Size | 2.1646in / 54.980mm |
| Max. Std Shaft Size | 2.1654in / 55.000mm |
| Min. Std Tunnel Size | 2.3228in / 59.000mm |
| Max. Std Tunnel Size | 2.3236in / 59.020mm |
| Max Wall at Crown | 0.0790in / 2.007mm |
| Max Overall Length | 0.7874in / 20.00mm |
| Weight | 0.28 |
| Notes | 0 |
|
|||||||
| Quantity | 4 | ||||||
| Crankshaft | 45.001 / 44.981 | ||||||
| Housing | 48.001 / 48.019 | ||||||
| Max Wall | 1.499 | ||||||
| Max Length | 18.499 |
