Prekės kodas 5M7807H-STD

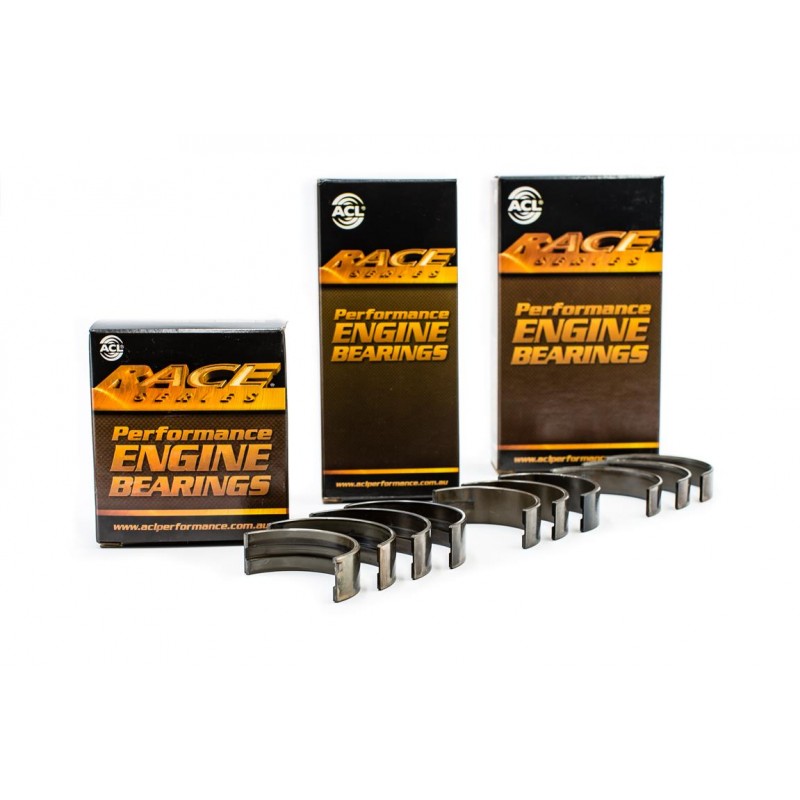

ACL Race series alkūninio veleno indėklai
Renault - 1.7 1.8 2.0 petrol and 1.6 1.9 diesel engines (F8M and F8Q diesel, F1N, F2N, F2R, F3N, F3P, F3R, F4R, F7P, F7R)

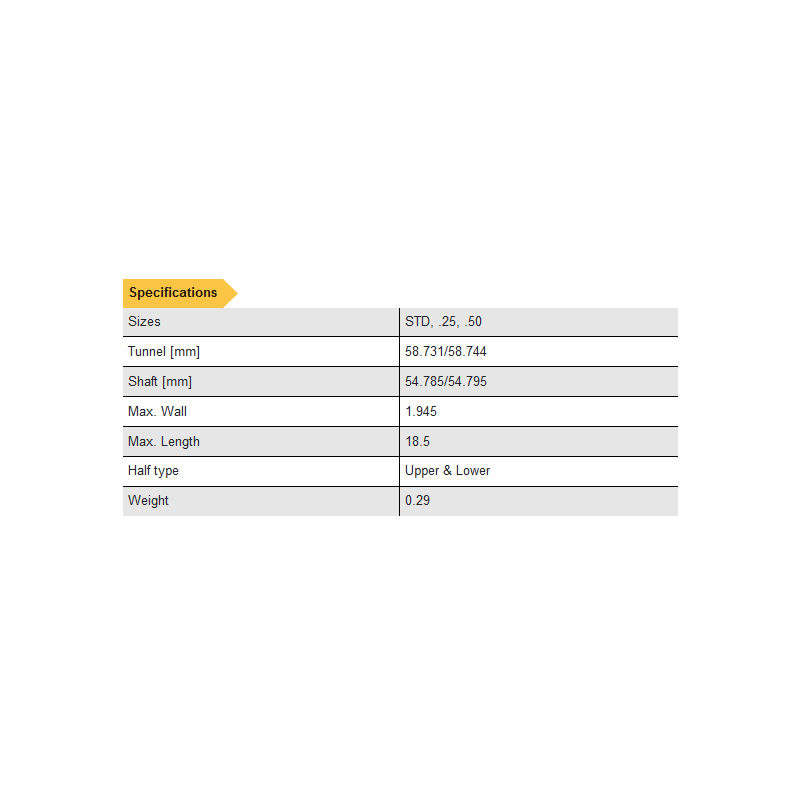

| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M7807H |
5M7807HX |
|
| Sizes | STD, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.1569 in / 54.785 mm |
|
| Max Std Shaft Size | 2.1573 in / 54.795 mm | |
| Min Std Tunnel Size | 2.3122 in / 58.731 mm | |
| Max Std Tunnel Size | 2.3128 in / 58.744 mm | |
| Max Wall at Crown | 0.0765 in / 1.945 mm |
0.0760 in / 1.933 mm |
| Max Overall Length | 0.728 in / 18.50 mm | |
| Notes | ||
|

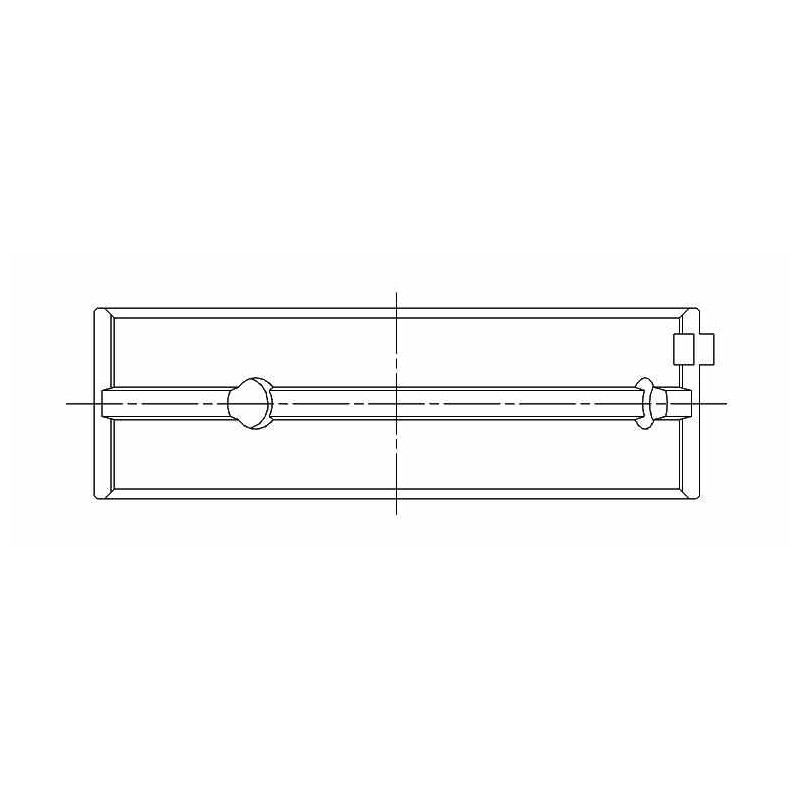

Diagram |
 |
|
Engines Renault 4 cylinder 1.6 1.7 1.8 1.9 2.0
(F1N, F2N, F2R, F3N, F3P, F3R, F4R, F7P, F7R; F8M, F8Q - diesel)
| ENGINE BEARINGS | ||
|
MAIN BEARING SET |
|
| Part# | ||
| 5M7807H |
5M7807HX |
|
| Sizes | STD, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.1569 in / 54.785 mm |
|
| Max Std Shaft Size | 2.1573 in / 54.795 mm | |
| Min Std Tunnel Size | 2.3122 in / 58.731 mm | |
| Max Std Tunnel Size | 2.3128 in / 58.744 mm | |
| Max Wall at Crown | 0.0765 in / 1.945 mm |
0.0760 in / 1.933 mm |
| Max Overall Length | 0.728 in / 18.50 mm | |
| Notes | ||
|
Diagram |
|
|
Gamintojas: ACL BEARING COMPANY
Modelis: 1T7807-STD
F1N, F2N, F2R, F3N, F3P, F3R, F7P, F7R, F8M, F8Q varikliams.
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B7820H |
4B7820HX |
|
| Sizes | STD, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8898 in / 48.000 mm |
|
| Max Std Shaft Size | 1.8905 in / 48.020 mm | |
| Min Std Tunnel Size | 2.0310 in / 51.587 mm | |
| Max Std Tunnel Size | 2.0315 in / 51.600 mm | |
| Max Wall at Crown | 0.0696 in / 1.768 mm | 0.0691 in / 1.755 mm |
| Max Overall Length |
0.807 in / 20.50 mm |
|
| Notes | ||
|

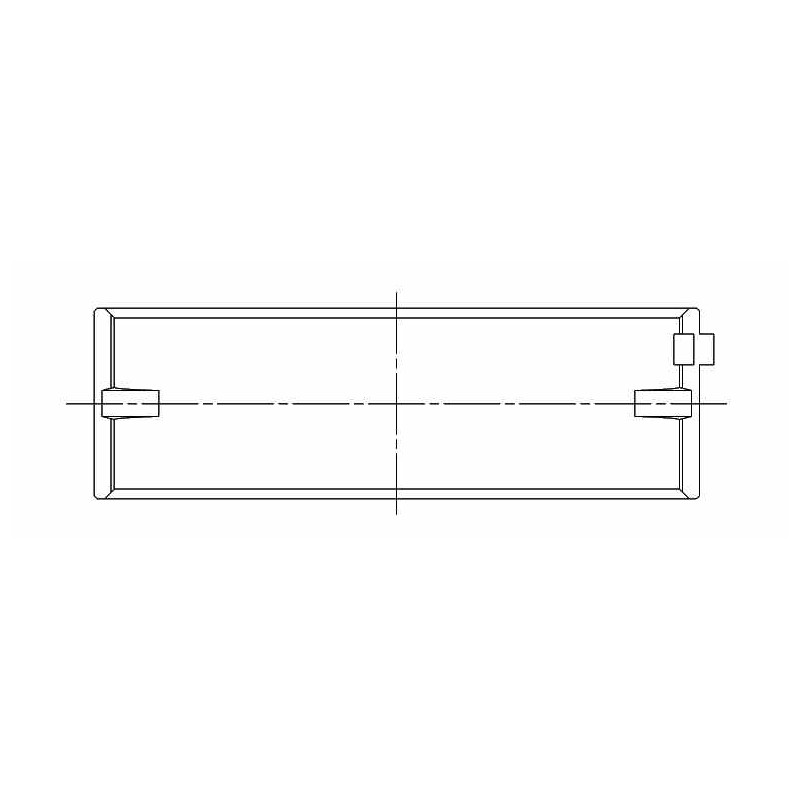

Diagram |
 |
|
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B7820H |
4B7820HX |
|
| Sizes | STD, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8898 in / 48.000 mm |
|
| Max Std Shaft Size | 1.8905 in / 48.020 mm | |
| Min Std Tunnel Size | 2.0310 in / 51.587 mm | |
| Max Std Tunnel Size | 2.0315 in / 51.600 mm | |
| Max Wall at Crown | 0.0696 in / 1.768 mm | 0.0691 in / 1.755 mm |
| Max Overall Length |
0.807 in / 20.50 mm |
|
| Notes | ||
|
Diagram |
|
|
Engines Renault 4 cylinder 1.7 1.8 2.0 petrol and 1.6 1.9 diesel engines
(F8M and F8Q diesel, F1N, F2N, F2R, F3N, F3P, F3R, F7P, F7R)
