Renault 1.6 1.7 1.8 1.9 2.0 F4R F7R ACL Race Hauptlager Satz 5M7807H-STD

Teilenummer 5M7807H-STD

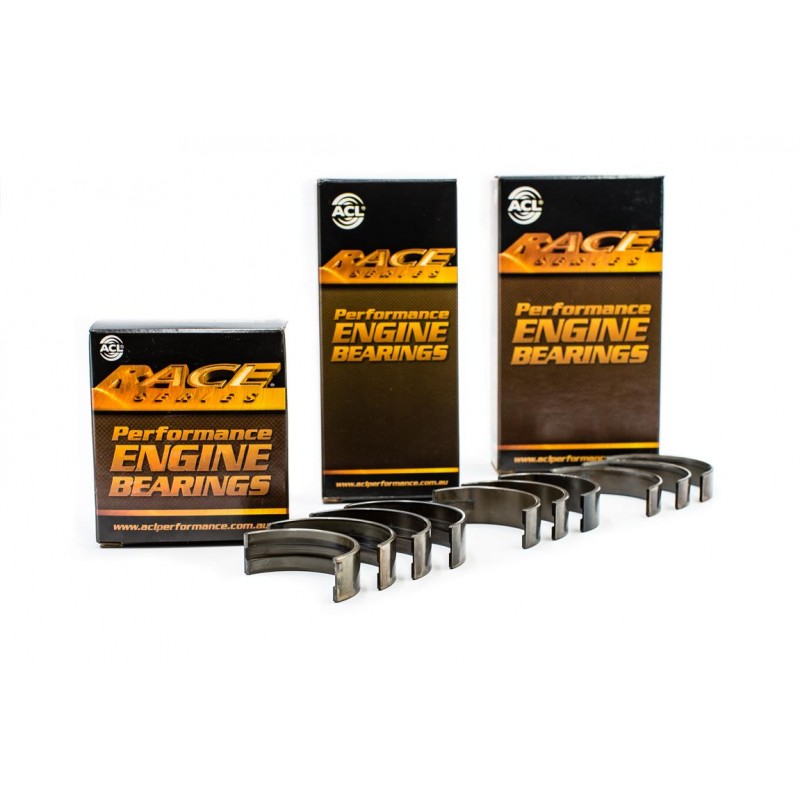

ACL Race series Hauptlager Satz
Renault - 1.7 1.8 2.0 petrol and 1.6 1.9 diesel engines (F8M and F8Q diesel, F1N, F2N, F2R, F3N, F3P, F3R, F4R, F7P, F7R)

109,00 €

Verfügbarkeit:2 Artikel

Information

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	5M7807H	5M7807HX
Sizes	STD, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-Metal
Min Std Shaft Size	2.1569 in / 54.785 mm
Max Std Shaft Size	2.1573 in / 54.795 mm
Min Std Tunnel Size	2.3122 in / 58.731 mm
Max Std Tunnel Size	2.3128 in / 58.744 mm
Max Wall at Crown	0.0765 in / 1.945 mm	0.0760 in / 1.933 mm
Max Overall Length	0.728 in / 18.50 mm
Notes

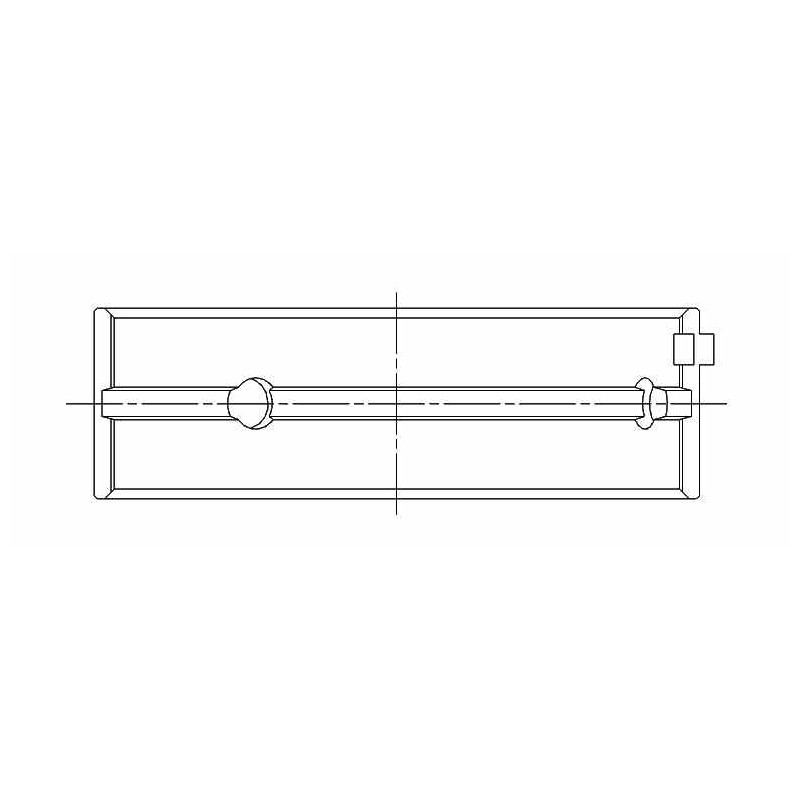

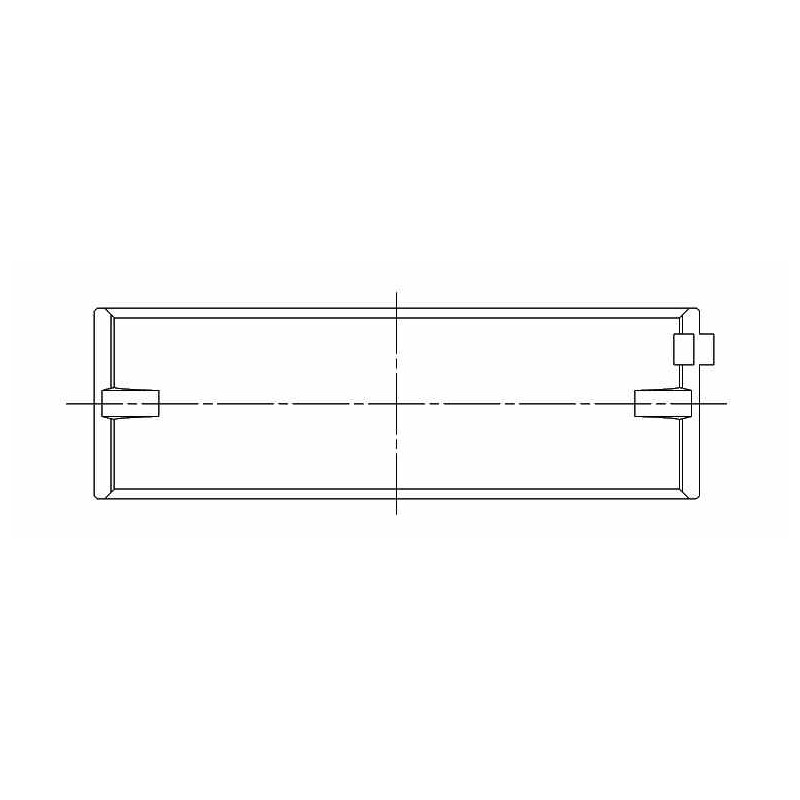

Diagram (Top View)

Engines Renault 4 cylinder 1.6 1.7 1.8 1.9 2.0
(F1N, F2N, F2R, F3N, F3P, F3R, F4R, F7P, F7R; F8M, F8Q - diesel)
