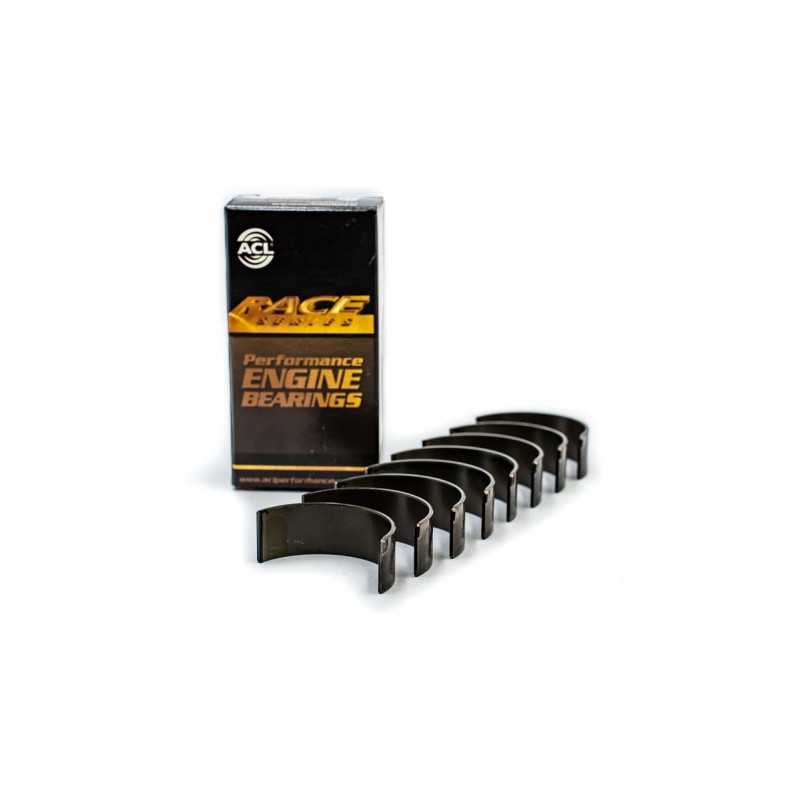

Renault 1.7 1.8 2.0 F4R F7R ACL Race Pleuellager Satz 4B7820H-STD

Teilenummer 4B7820H-STD
ACL Race Series Pleuellager Satz
Renault - 1.7 1.8 2.0 Benzin und 1.6 1.9 Diesel Motoren (F8M, F8Q Diesel, F1N, F2N, F2R, F3N, F3P, F3R, F4R, F7P, F7R)

79,00 €

Verfügbarkeit:2 Artikel

Information

ENGINE BEARINGS
	CON ROD BEARING SET

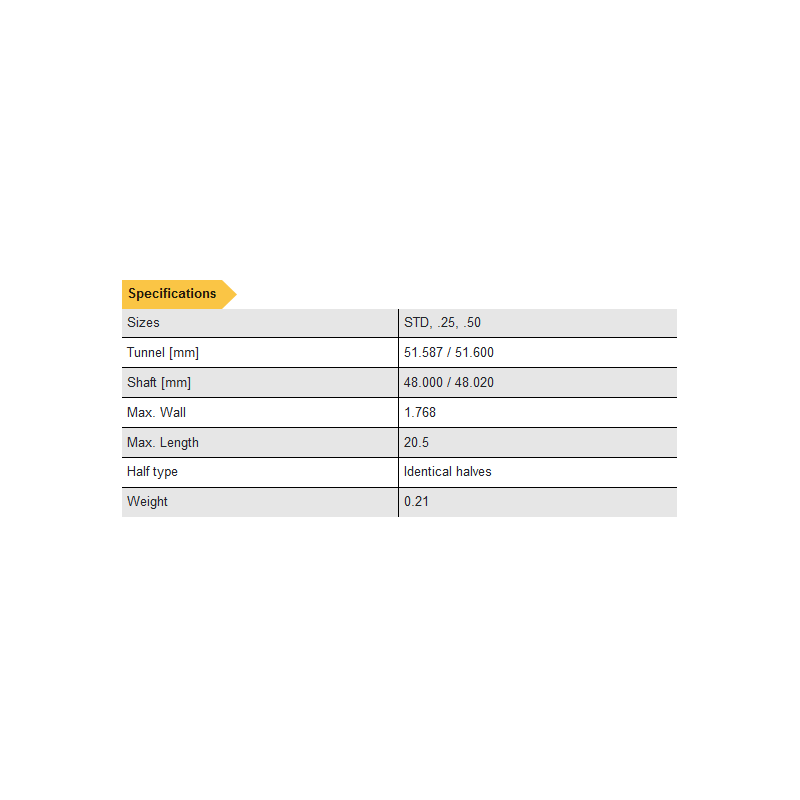

	Part#
	4B7820H	4B7820HX
Sizes	STD, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8898 in / 48.000 mm
Max Std Shaft Size	1.8905 in / 48.020 mm
Min Std Tunnel Size	2.0310 in / 51.587 mm
Max Std Tunnel Size	2.0315 in / 51.600 mm
Max Wall at Crown	0.0696 in / 1.768 mm	0.0691 in / 1.755 mm
Max Overall Length	0.807 in / 20.50 mm
Notes

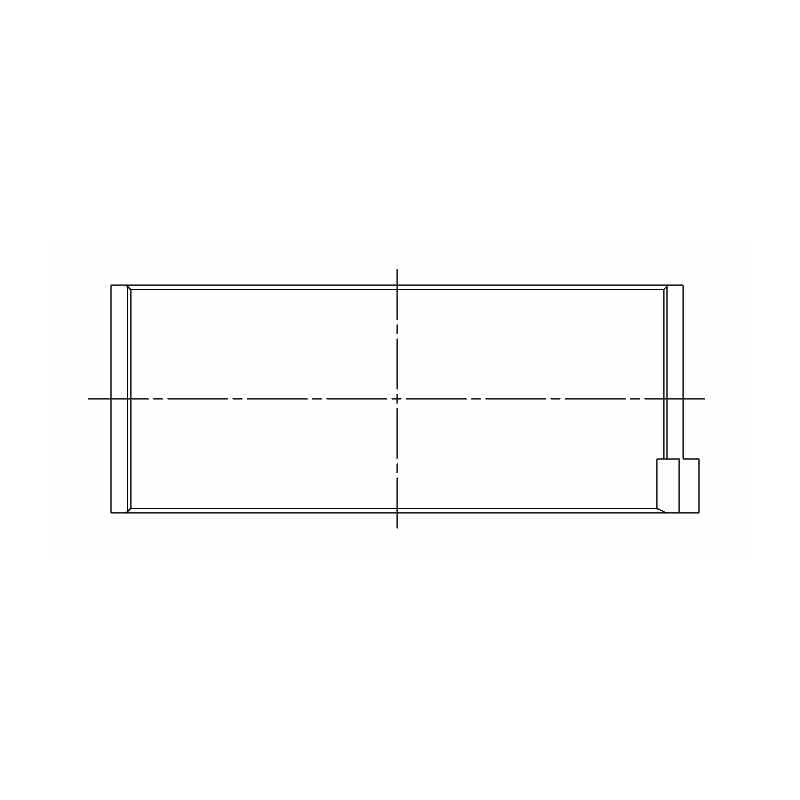

Diagram (Top View)

Engines Renault 4 cylinder 1.7 1.8 2.0 petrol and 1.6 1.9 diesel engines
(F8M and F8Q diesel, F1N, F2N, F2R, F3N, F3P, F3R, F7P, F7R)
