BMW M20 M50 M52 M54 S54 ACL Race Hauptlager Satz 7M1532HX-STD

BMW M3 E46 3.2 S54B32 ARP Zylinderkopf Stehbolzensatz 201-4303

ARP sind ein Hersteller von Verbindungselementen (Bolzen und Stehbolzen) im Motoren und Antriebsstränge, die von OEM-Ersatzteile zu Spezialhardware für den Rennsport gefunden. ARP ist weltweit führend in der Befestigungstechnik.

357,00 €

BMW M3 E46 3.2 S54B32 ARP Haupt Stehbolzensatz 201-5002

ARP sind ein Hersteller von Verbindungselementen (Bolzen und Stehbolzen) im Motoren und Antriebsstränge, die von OEM-Ersatzteile zu Spezialhardware für den Rennsport gefunden. ARP ist weltweit führend in der Befestigungstechnik.

234,00 €

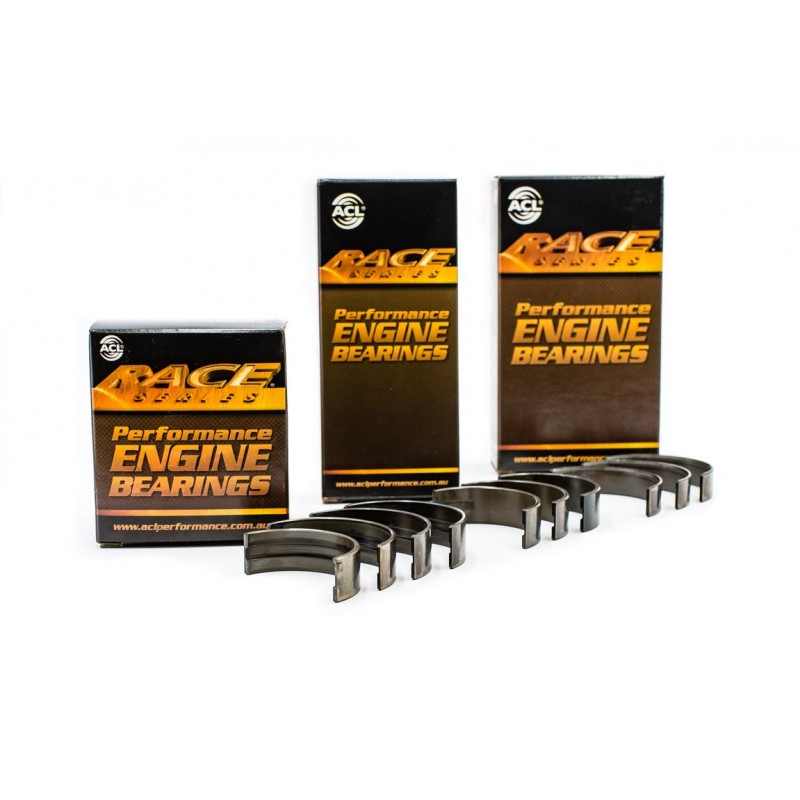

BMW M20 M50 M52 M54 S54 ACL Race Hauptlager Satz 7M1532H-STD

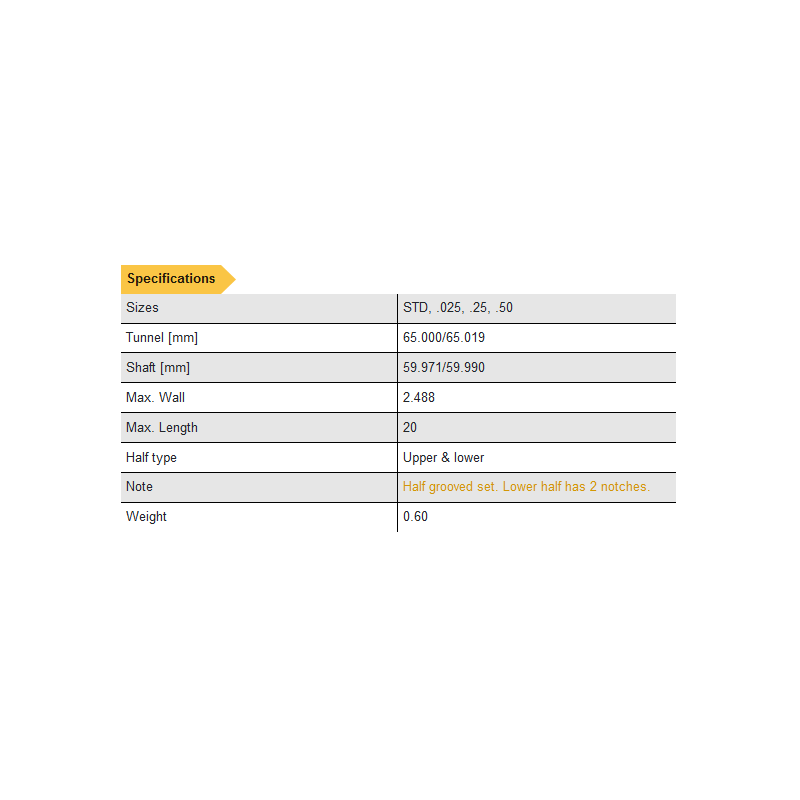

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	7M1532H	7M1532HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.3611in / 59.971mm
Max Std Shaft Size	2.3618in / 59.990mm
Min Std Tunnel Size	2.5591in / 65.000mm
Max Std Tunnel Size	2.5598in / 65.019mm
Max Wall at Crown	0.0980in / 2.490mm	0.0930in / 2.478mm
Max Overall Length	0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust
Notes

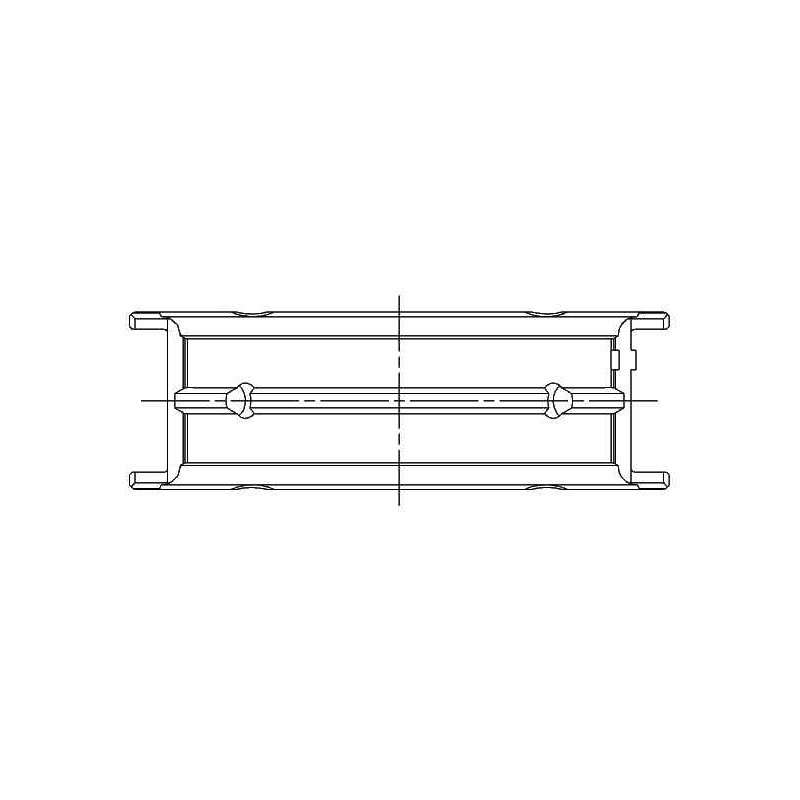

Diagram (Top View)

Engines BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

209,00 €

BMW M20 M50 M52 M54 S54 ACL Race Hauptlager Satz 7M1532H-0.25

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	7M1532H	7M1532HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.3611in / 59.971mm
Max Std Shaft Size	2.3618in / 59.990mm
Min Std Tunnel Size	2.5591in / 65.000mm
Max Std Tunnel Size	2.5598in / 65.019mm
Max Wall at Crown	0.0980in / 2.490mm	0.0930in / 2.478mm
Max Overall Length	0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust
Notes
Diagram (Top View)

Engines BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

209,00 €

BMW M20 M50 M52 M54 S54 ACL Race Hauptlager Satz 7M1532HX-STD

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	7M1532H	7M1532HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.3611in / 59.971mm
Max Std Shaft Size	2.3618in / 59.990mm
Min Std Tunnel Size	2.5591in / 65.000mm
Max Std Tunnel Size	2.5598in / 65.019mm
Max Wall at Crown	0.0980in / 2.490mm	0.0930in / 2.478mm
Max Overall Length	0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust
Notes
Diagram (Top View)

Engines BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

209,00 €

BMW M20 M50 M52 M54 S50 S54 King Racing Hauptlager Satz MB7039XPC-0.25...

XP	XP

F7016U-PR	F7039L-PR

XP	XP

M7016U-PR	M5578L-PR

Quantity

1

6

Crankshaft

59.990 / 59.972

Housing

65.001 / 65.019

Max Wall

2.494

Max Length

24.940

19.901

Engines: BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M50B27, M54B30, S50B30, S50B32, S52B32, S54B32)

235,00 €

BMW M3 E46 3.2 S54B32 Supertech Ventilfedersatz SPRK-2521-2BM-T1

Federn Daten:
Druck Ventilsitz - 82lbs @ 41.00mm
Druck geöffnet - 186lbs @ 10.00mm
Min. Federhöhe (im gepressten Zustand) - 25.50mm
Federrate - 10.00lbs/mm
Max Hub - 15.50mm
Äußere Feder Außendurchmesser - 26.40mm
Äußere Feder Innendurchmesser - 19.30mm
Innere Feder Außendurchmesser - 19.30mm
Innere Feder Innendurchmesser - 14.50mm

Satz enthält:
Doppelfedern - 24 Stk. SPR-2521-BM
Federtellern - 24 Stk. RET-BM2521-T1T
Sitze - 24 Stk. SEAT-BMS54

965,00 €

BMW 3.2 S54B32 Athena Racing Kopfdichtung 87.50x1.2mm 330037R

BMW 3.2 S54B32 Athena Cooper Ring Zylinderkopfdichtung 87.5x1.2mm 330037R

Athena Racing 330-Serie Cooper Ring Zylinderkopfdichtung.
Für spezifische Hochpferdestärken Motorleistungen erheblich durch den Einsatz Athena Cooper Ring Dichtungen verbessert werden, die mit INOX Stahlring geliefert werden. Diese Technologie bietet gegenüber herkömmlichen Feuerring Lösungen.
Cooper Rings sind Übermaß (auch passt für übergroße Bohrungen).
Teilenummer 330037R
Dichtungsdicke: 1.20mm
Zylinderdurchmesser: 87.50mm

Teilenummer beginnt 330
Athena Vorteile
Verstärktes Material	OE genehmigt Asbestfreie Verbund Rohstof
Edelstahlringen (AISI304)	Einzelne Edelstahlringe gewährleisten maximale Besiegelung um die Zylinderbohrungen, unter extremen Bedingungen, auch mit dem NOS-System und/oder Turbo-Aufladung, wenn die MLS Dichtung unfähig abgedichtet Brennkammer arbeitet. Zylinderkopf und Motorblock benötigt keine speziellen Behandlungen.
Silikon Beading	Silikon Beading wird auf kritische Bereiche angewendet zu verbessern Abdichten um alle Kühlwasser- und Ölkanäle.

299,00 €

BMW M20 M50 M52 M54 S50 S54 King Racing Hauptlager Satz MB7039XPC-STDX...

XP	XP

F7016U-PR	F7039L-PR

XP	XP

M7016U-PR	M5578L-PR

Quantity

1

6

Crankshaft

59.990 / 59.972

Housing

65.001 / 65.019

Max Wall

2.494

Max Length

24.940

19.901

Engines: BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

235,00 €

BMW BMEVN-1031S +1mm 1.8/2.5/2.8/3.0 auslassventil

BMW 3.2 S54B32 Supertech einlassventil BMIVN-1045S +1mm

Product detailed specification
Model number	BMIVN-1045S
Head diameter	36.00mm
Stem diameter	5.97mm
Length	117.50mm
Material	Black nitrited stainless steel
Fits for	BMW M3 E46 - 3.2 (S54B32)

31,00 €

BMW BMEVN-1040 standard S54B32 3.2 auslassventil

BMW 3.2 S54B32 Supertech Auslassventil BMEVN-1040 STD

Product detailed specification
Model number	BMEVN-1040
Head diameter	30.50mm
Stem diameter	5.95mm
Length	126.10mm
Material	Black nitrited stainless steel
Fits for	BMW M3 E46 - 3.2 (S54B32)

31,00 €

BMW BMEVI-1040S standard S54B32 3.2 auslassventil

BMW M3 E46 3.0 S54B32 Supertech Inconel Auslassventil BMEVI-1040S STD

Product detailed specification
Model number	BMEVI-1040S
Head diameter	30.50mm
Stem diameter	5.95mm
Length	119.10mm
Material	Black nitrited stainless steel
Fits for	BMW M3 E46 - 3.2 (S54B32)

42,00 €

BMW M3 E46 3.2 S54B32 Supertech auslassventil BMEVI-1045S +1mm

Product detailed specification
Model number	BMEVI-1045S
Head diameter	31.50mm
Stem diameter	5.95mm
Length	119.10mm
Material	Inconel
Fits for	BMW M3 E46 - 3.2 (S54B32)

42,00 €

BMW M3 E46 3.2 S54B32 King Racing Pleuellager Satz CR6877XPC-STD Beschichteten

Position

1,2,3,4,5,6

Pairs & PN

SX	SX

C6877-PRC	C6877-PRC

Quantity

6

Crankshaft

48.974 / 48.992

Housing

53.000 / 53.015

Max Wall

1.991

Max Length

15.900

199,00 €

BMW M3 E46 3.2 S54B32 JE PISTOMS SCHMIEDEKOLBEN 87.50mm CR 9.0:1

BMW M3 E46 3.2 S54B32 JE Pistons Schmiedekolben 87.5mm CR 9.0 297116

Product detailed specification
Bore size	87.50mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	9.0:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-30.00cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; assymetrical FSR series
Fits for	BMW M3 E46 - 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 11.5:1 87.00mm

BMW M3 E46 3.2 S54B32 JE Pistons Schmiedekolben CR 11.5 87mm 297117

Product detailed specification
Bore size	87.00mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	11.5:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-13.20cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; asymmetrical FSR series
Fits for	BMW M3 E46 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 E46 3.2 S54B32 Supertech Einlassventil BMIVN-1040S STD

Product detailed specification
Model number	BMIVN-1040S
Head diameter	35.00mm
Stem diameter	5.97mm
Length	117.50mm
Material	Black nitrited stainless steel
Fits for	BMW M3 E46 - 3.2 (S54B32)

31,00 €

BMW 3.2 S54B32 Supertech Einlassventil BMIVN-1040 STD

Product detailed specification
Model number	BMIVN-1040
Head diameter	35.00mm
Stem diameter	5.97mm
Length	117.50mm
Material	Black nitrited stainless steel
Fits for	BMW M3 E46 - 3.2 (S54B32)

31,00 €

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 12.5:1 87mm 297119

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 12.5 87mm 297119

Product detailed specification
Bore size	87.00mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	12.5:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-8.70cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; FSR series coated skirt
Fits for	BMW M3 E46 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 11.5 87.5mm 297118

Product detailed specification
Bore size	87.50mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	11.5:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-13.80cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; FSR beschichtete Kolbenhemd
Fits for	BMW M3 E46 - 3.2 S54B32

Dank der patentierten Perfect Skirt-Beschichtung von JE Pistons gehören Kolbenschlag, falscher Schlag und Kaltstart der Vergangenheit an.

Erstmals können 2618-Legierungskolben mit Kolben-zu-Wand-Abständen eingebaut werden, mit Kolben-zu-Wand-Abständen in der Nähe eines OEM-Kolbens!

1.349,00 €

BMW M3 E46 S54B32 ACL Race Pleuellager Satz 6B1569H-0.25

Hersteller: ACL Bearing Company
Modell: 6B1569H-0.25
BMW M3 E46 - 3.2 (S54B32)

	CON ROD BEARING SET
	Part#
	6B1569H	6B1569HX
Sizes	STD, .025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.9281in / 48.975mm
Max Std Shaft Size	1.9288in / 48.991mm
Min Std Tunnel Size	2.0866in / 53.000mm
Max Std Tunnel Size	2.0872in / 53.015mm
Max Wall at Crown	0.0785in / 1.993mm
Max Overall Length	0.630in / 16.00mm
Notes

199,00 €

BMW M3 E46 S54B32 ACL Race Pleuellager Satz 6B1569HX-STD

Hersteller: ACL Bearing Company
Modell: 6B1569HX-STD
BMW M3 E46 - 3.2 (S54B32)

	CON ROD BEARING SET
	Part#
	6B1569H	6B1569HX
Sizes	STD, .025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.9281in / 48.975mm
Max Std Shaft Size	1.9288in / 48.991mm
Min Std Tunnel Size	2.0866in / 53.000mm
Max Std Tunnel Size	2.0872in / 53.015mm
Max Wall at Crown	0.0785in / 1.993mm
Max Overall Length	0.630in / 16.00mm
Notes

199,00 €

BMW M3 E46 S54B32 ACL Race Pleuellager Satz 6B1569H-STD

Hersteller: ACL Bearing Company
Modell: 6B1569H-STD
BMW M3 E46 - 3.2 (S54B32)

	CON ROD BEARING SET
	Part#
	6B1569H	6B1569HX
Sizes	STD, .025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.9281in / 48.975mm
Max Std Shaft Size	1.9288in / 48.991mm
Min Std Tunnel Size	2.0866in / 53.000mm
Max Std Tunnel Size	2.0872in / 53.015mm
Max Wall at Crown	0.0785in / 1.993mm
Max Overall Length	0.630in / 16.00mm
Notes

199,00 €

BMW M3 E46 3.2 S54B32 24V FCP doppelte Rennsport Ventilfeder Satz

Ventilfedern Daten
Installierte Sitzdruck - 40kg (88lbs)
Last - 100kg@12mm (220lbs@12mm)
Max. Aufzug (Lift) - bis zu 13mm
Hergestellt aus Chrom-Silizium Stahl SAE9254-V
24 Stk. doppelte Federn
Passend für BMW M3 - 3.2 24V (S54B32)
Mit diesem Satz wird das Risiko des Ventilflatterns und moglichen Motorschadens minimiert.
Für Motoren mit Serien und Renn Nockenwellen und denen Drehzahlen von über 7500 RPM.
Kann man zusammen mit Standard Federtellern und Ventilsitze verwendet werden.

399,00 €

BMW M3 E46 3.2 S54B32 King Racing Pleuellager Satz CR6877XP-0.25

Position

Connecting rod:
1, 2, 3, 4, 5, 6

Pairs
&
Part Numbers

XP	XP

C6877-PR	C6877-PR

Quantity

6

Crankshaft Diameter

48.992 / 48.974mm

Housing Diameter

53.000 / 53.015mm

Max Wall Thickness

1.994mm

Max Length

16.002mm

Engines BMW 3.2 (S54B32)

159,00 €

BMW M3 E46 S54B32 Supertech Ventile, Ventilfeder und Ventilkappen Kit

Dies ist ein Satz von Supertech Ventilfedern, Titan Federtellern, Ventilen und Ventilkappen für den BMW S54B32 Motor. Mit diesem Kit kann Ihre Motor zuverlässig bis zu 9000 U/min. laufen und das Risiko eines Versagens des OEM-Ventilkappen oder Ventil Schwimmers wird eliminiert.
Aftermarket Ventilfedern bestehen aus hochwertigen Metalllegierungen und optimierten Federraten, damit Ihr Ventiltrieb bei hohen Drehzahlen mit Ihren Nockenwellen mithalten kann.
Egal, ob Sie Ihren Motor umbauen oder einen All-Out-Rennmotor bauen: wenn Sie Ihren Ventiltrieb durch Supertech Komponenten ersetzen, können Sie höher drehen und aggressiver an Ihren Nockenwellen arbeiten.

2.299,00 €

BMW M3 E46 3.2 S54 ARP Bolzen für original Pleuel M11 201-6103

ARP sind ein Hersteller von Verbindungselementen (Bolzen und Stehbolzen) im Motoren und Antriebsstränge, die von OEM-Ersatzteile zu Spezialhardware für den Rennsport gefunden. ARP ist weltweit führend in der Befestigungstechnik.

279,00 €

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 12.5 87.5mm 297120

Product detailed specification
Bore size	87.50mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	12.5:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-9.20cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; FSR skirt
Fits for	BMW M3 E46 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 E46 3.2 S54B32 Ajusa Zylinderkopf Dichtungssatz 52191700

Satz enthält:
1 Zylinderkopfdichtung (87.50x0.60mm)
1 Ventildeckeldichtung
6 Ansaugkrümmerdichtungen
6 Abgaskrümmerdichtungen
24 Ventildichtungen
und andere.

Passt für:
BMW M3 E46 - 3.2 (S54B32)

299,00 €

BMW M3 E46 3.2 S54B32 JE Pistons Schmiedekolben 87mm CR 9.0 297115

Product detailed specification
Bore size	87.00mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	9.0:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-29.30cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; assymetrical FSR series
Fits for	BMW M3 E46 - 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 E46 3.2 S54B32 King Racing Pleuellager Satz CR6877XPC-STDX Beschichteten

Position

Connecting rod:
1, 2, 3, 4, 5, 6

Pairs
&
Part Numbers

XP	XP

C6877-PR	C6877-PR

Quantity

6

Crankshaft Diameter

48.992 / 48.974mm

Housing Diameter

53.000 / 53.015mm

Max Wall Thickness

1.994mm

Max Length

16.002mm

Engines BMW 3.2 (S54B32)

199,00 €

BMW M3 E46 S54B32 Supertech Ventilführung GDE-BMW-S54-EI

10,00 €

BMW S54B32 Victor Reinz M11 Zylinderkopfbolzen Satz 14-32312-01

Teilenummer 14-32101-01
Victor Reinz Zylinderkopfbolzen Satz (M11)
BMW M52 M54

39,00 €

BMW M3 E46 3.2 S54B32 Wiseco Schmiedekolben 87.25mm CR 11.1:1 KE126M8725

Product detailed specification
Bore size	87.25mm
Stroke	91.00mm
Wiseco pistons compression ratio (CR)	11.1:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-14.00cm³
Compression height (CH)	32.00mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; Full round piston skirt
Fits for	BMW M3 E46 - 3.2 S54B32

1.229,00 €

BMW M20 M50 M52 M54 S50 S54 King Racing Hauptlager Satz MB7039XPC-STD...

XP	XP

F7016U-PR	F7039L-PR

XP	XP

M7016U-PR	M5578L-PR

Quantity

1

6

Crankshaft

59.990 / 59.972

Housing

65.001 / 65.019

Max Wall

2.494

Max Length

24.940

19.901

Engines: BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

235,00 €

Cometic BMW M3 E46 3.2 S54B32 MLS Zylinderkopf Dichtung 87.5x1mm C4505-040

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

249,00 €

Cometic BMW M3 E46 3.2 S54B32 MLS Zylinderkopf Dichtung 87.5x1.52mm C4505-060

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

289,00 €

Cometic BMW M3 E46 3.2 S54B32 MLS Zylinderkopf Dichtung 87.5x2.34mm C4505-092

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

299,00 €

BMW M3 E46 3.2 S54B32 King Racing Pleuellager Satz CR6877XPC-0.5 Beschichteten

Position

Connecting rod:
1, 2, 3, 4, 5, 6

Pairs
&
Part Numbers

XP	XP

C6877-PR	C6877-PR

Quantity

6

Crankshaft Diameter

48.992 / 48.974mm

Housing Diameter

53.000 / 53.015mm

Max Wall Thickness

1.994mm

Max Length

16.002mm

Engines BMW 3.2 (S54B32)

199,00 €

BMW M20 M50 M52 M54 S54 ACL Race Hauptlager Satz 7M1532HX-STD

Das könnte dir auch gefallen
