BMW M3 E46 S54B32 ACL Race Pleuellager Satz 6B1569H-STD

BMW M3 E46 3.2 S54B32 FCP H-schaft Stahlpleuel 139mm

BMW M3 E46 3.2 S54B32 FCP H-Schaft Stahlpleuel Kit 139mm

Detailierte Productinformation

Hersteller: FCP Engineering
Model: FCPRH1395321/S54
Profil: H-Schaft
C bis C: 139mm
Großer End Durchmesser: 53mm
Kleiner End Durchmesser: 21mm
Gemacht aus: Schmiedestahl 4340 EN24er
Quantität: 6 Stk., 12 Stk. 3/8" ARP2000 Pleuelschreuben
Pleuel gut für: 1000HP (6 Zylinder) und 9000RPM
BMW M3 E46 - 3.2 (S54B32)

639,00 €

BMW M3 E46 3.2 S54B32 ARP Haupt Stehbolzensatz 201-5002

ARP sind ein Hersteller von Verbindungselementen (Bolzen und Stehbolzen) im Motoren und Antriebsstränge, die von OEM-Ersatzteile zu Spezialhardware für den Rennsport gefunden. ARP ist weltweit führend in der Befestigungstechnik.

234,00 €

BMW M20 M50 M52 M54 S54 ACL Race Hauptlager Satz 7M1532H-STD

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	7M1532H	7M1532HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.3611in / 59.971mm
Max Std Shaft Size	2.3618in / 59.990mm
Min Std Tunnel Size	2.5591in / 65.000mm
Max Std Tunnel Size	2.5598in / 65.019mm
Max Wall at Crown	0.0980in / 2.490mm	0.0930in / 2.478mm
Max Overall Length	0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust
Notes
Diagram (Top View)

Engines BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

209,00 €

BMW M20 M50 M52 M54 S54 ACL Race Hauptlager Satz 7M1532H-0.25

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	7M1532H	7M1532HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.3611in / 59.971mm
Max Std Shaft Size	2.3618in / 59.990mm
Min Std Tunnel Size	2.5591in / 65.000mm
Max Std Tunnel Size	2.5598in / 65.019mm
Max Wall at Crown	0.0980in / 2.490mm	0.0930in / 2.478mm
Max Overall Length	0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust
Notes
Diagram (Top View)

Engines BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

209,00 €

BMW M20 M50 M52 M54 S54 ACL Race Hauptlager Satz 7M1532HX-STD

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	7M1532H	7M1532HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.3611in / 59.971mm
Max Std Shaft Size	2.3618in / 59.990mm
Min Std Tunnel Size	2.5591in / 65.000mm
Max Std Tunnel Size	2.5598in / 65.019mm
Max Wall at Crown	0.0980in / 2.490mm	0.0930in / 2.478mm
Max Overall Length	0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust
Notes
Diagram (Top View)

Engines BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

209,00 €

BMW M20 M50 M52 M54 S50 S54 King Racing Hauptlager Satz MB7039XPC-0.25...

XP	XP

F7016U-PR	F7039L-PR

XP	XP

M7016U-PR	M5578L-PR

Quantity

1

6

Crankshaft

59.990 / 59.972

Housing

65.001 / 65.019

Max Wall

2.494

Max Length

24.940

19.901

Engines: BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M50B27, M54B30, S50B30, S50B32, S52B32, S54B32)

235,00 €

BMW M20 M50 M52 M54 S50 S54 King Racing Hauptlager Satz MB7039XPC-STDX...

XP	XP

F7016U-PR	F7039L-PR

XP	XP

M7016U-PR	M5578L-PR

Quantity

1

6

Crankshaft

59.990 / 59.972

Housing

65.001 / 65.019

Max Wall

2.494

Max Length

24.940

19.901

Engines: BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

235,00 €

BMW M3 E46 3.2 S54B32 King Racing Pleuellager Satz CR6877XPC-STD Beschichteten

Position

1,2,3,4,5,6

Pairs & PN

SX	SX

C6877-PRC	C6877-PRC

Quantity

6

Crankshaft

48.974 / 48.992

Housing

53.000 / 53.015

Max Wall

1.991

Max Length

15.900

199,00 €

BMW M3 E46 3.2 S54B32 JE PISTOMS SCHMIEDEKOLBEN 87.50mm CR 9.0:1

BMW M3 E46 3.2 S54B32 JE Pistons Schmiedekolben 87.5mm CR 9.0 297116

Product detailed specification
Bore size	87.50mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	9.0:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-30.00cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; assymetrical FSR series
Fits for	BMW M3 E46 - 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 11.5:1 87.00mm

BMW M3 E46 3.2 S54B32 JE Pistons Schmiedekolben CR 11.5 87mm 297117

Product detailed specification
Bore size	87.00mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	11.5:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-13.20cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; asymmetrical FSR series
Fits for	BMW M3 E46 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 12.5:1 87mm 297119

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 12.5 87mm 297119

Product detailed specification
Bore size	87.00mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	12.5:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-8.70cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; FSR series coated skirt
Fits for	BMW M3 E46 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 11.5 87.5mm 297118

Product detailed specification
Bore size	87.50mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	11.5:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-13.80cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; FSR beschichtete Kolbenhemd
Fits for	BMW M3 E46 - 3.2 S54B32

Dank der patentierten Perfect Skirt-Beschichtung von JE Pistons gehören Kolbenschlag, falscher Schlag und Kaltstart der Vergangenheit an.

Erstmals können 2618-Legierungskolben mit Kolben-zu-Wand-Abständen eingebaut werden, mit Kolben-zu-Wand-Abständen in der Nähe eines OEM-Kolbens!

1.349,00 €

BMW M3 E46 S54B32 ACL Race Pleuellager Satz 6B1569H-0.25

Hersteller: ACL Bearing Company
Modell: 6B1569H-0.25
BMW M3 E46 - 3.2 (S54B32)

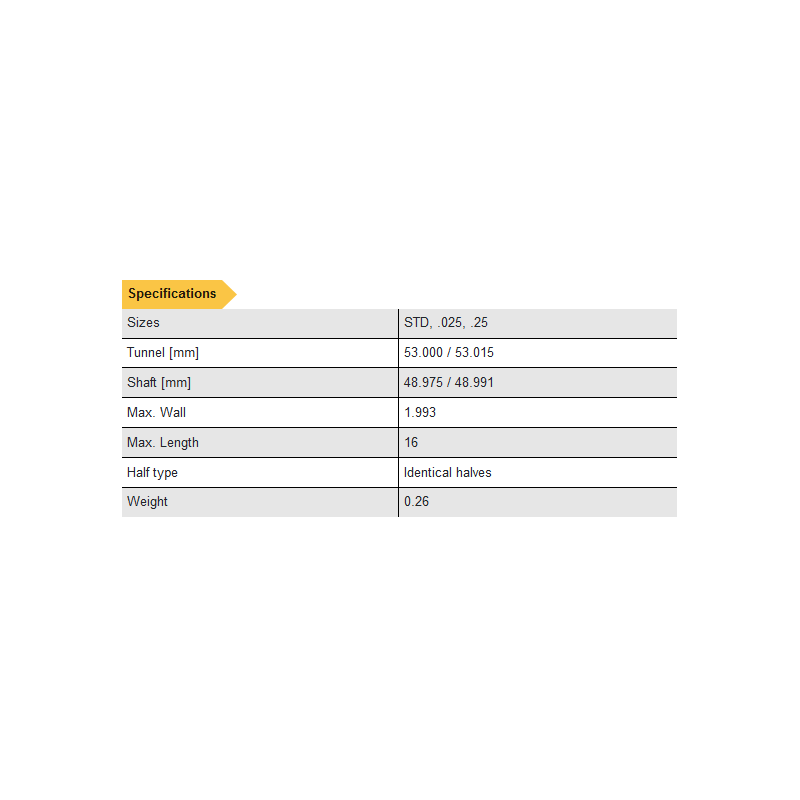

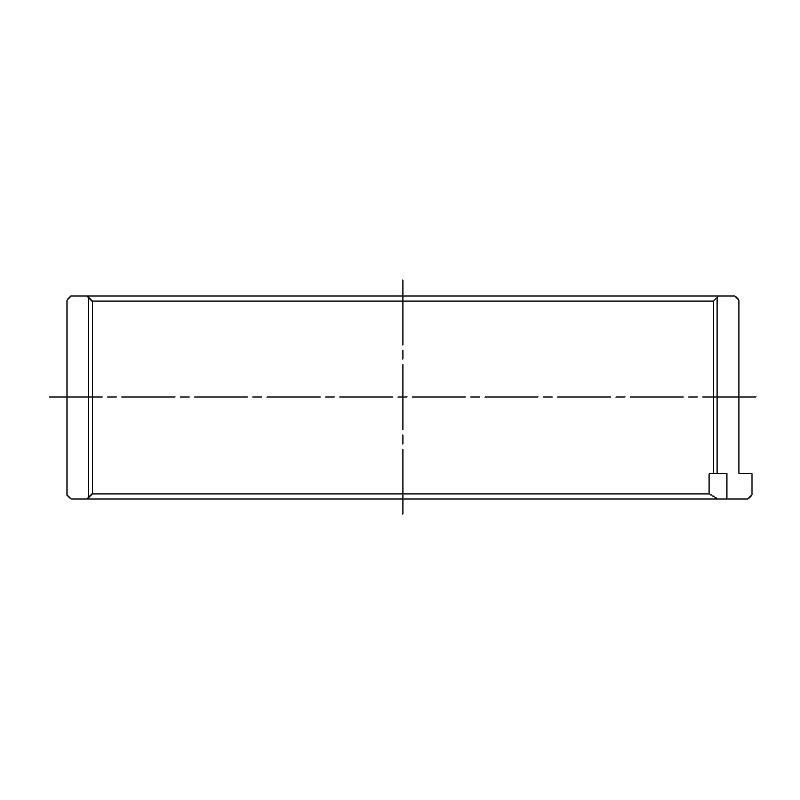

	CON ROD BEARING SET
	Part#
	6B1569H	6B1569HX
Sizes	STD, .025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.9281in / 48.975mm
Max Std Shaft Size	1.9288in / 48.991mm
Min Std Tunnel Size	2.0866in / 53.000mm
Max Std Tunnel Size	2.0872in / 53.015mm
Max Wall at Crown	0.0785in / 1.993mm
Max Overall Length	0.630in / 16.00mm
Notes

199,00 €

BMW M3 E46 S54B32 ACL Race Pleuellager Satz 6B1569HX-STD

Hersteller: ACL Bearing Company
Modell: 6B1569HX-STD
BMW M3 E46 - 3.2 (S54B32)

	CON ROD BEARING SET
	Part#
	6B1569H	6B1569HX
Sizes	STD, .025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.9281in / 48.975mm
Max Std Shaft Size	1.9288in / 48.991mm
Min Std Tunnel Size	2.0866in / 53.000mm
Max Std Tunnel Size	2.0872in / 53.015mm
Max Wall at Crown	0.0785in / 1.993mm
Max Overall Length	0.630in / 16.00mm
Notes

199,00 €

BMW M3 E46 S54B32 ACL Race Pleuellager Satz 6B1569H-STD

Hersteller: ACL Bearing Company
Modell: 6B1569H-STD
BMW M3 E46 - 3.2 (S54B32)

	CON ROD BEARING SET
	Part#
	6B1569H	6B1569HX
Sizes	STD, .025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.9281in / 48.975mm
Max Std Shaft Size	1.9288in / 48.991mm
Min Std Tunnel Size	2.0866in / 53.000mm
Max Std Tunnel Size	2.0872in / 53.015mm
Max Wall at Crown	0.0785in / 1.993mm
Max Overall Length	0.630in / 16.00mm
Notes

199,00 €

BMW M3 E46 3.2 S54B32 King Racing Pleuellager Satz CR6877XP-0.25

Position

Connecting rod:
1, 2, 3, 4, 5, 6

Pairs
&
Part Numbers

XP	XP

C6877-PR	C6877-PR

Quantity

6

Crankshaft Diameter

48.992 / 48.974mm

Housing Diameter

53.000 / 53.015mm

Max Wall Thickness

1.994mm

Max Length

16.002mm

Engines BMW 3.2 (S54B32)

185,00 €

BMW M3 3.2 S54B32 JE Pistons Schmiedekolben CR 12.5 87.5mm 297120

Product detailed specification
Bore size	87.50mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	12.5:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-9.20cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; FSR skirt
Fits for	BMW M3 E46 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 E46 3.2 S54B32 JE Pistons Schmiedekolben 87mm CR 9.0 297115

Product detailed specification
Bore size	87.00mm
Stroke	91.00mm
JE Pistons compression ratio (CR)	9.0:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-29.30cm³
Compression height (CH)	32.30mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; assymetrical FSR series
Fits for	BMW M3 E46 - 3.2 S54B32

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

1.349,00 €

BMW M3 E46 3.2 S54B32 King Racing Pleuellager Satz CR6877XPC-STDX Beschichteten

Position

Connecting rod:
1, 2, 3, 4, 5, 6

Pairs
&
Part Numbers

XP	XP

C6877-PR	C6877-PR

Quantity

6

Crankshaft Diameter

48.992 / 48.974mm

Housing Diameter

53.000 / 53.015mm

Max Wall Thickness

1.994mm

Max Length

16.002mm

Engines BMW 3.2 (S54B32)

199,00 €

BMW M3 E46 3.2 S54B32 Wiseco Schmiedekolben 87.25mm CR 11.1:1 KE126M8725

Product detailed specification
Bore size	87.25mm
Stroke	91.00mm
Wiseco pistons compression ratio (CR)	11.1:1
OEM compression ratio (CR)	11.3:1
Dome volume (CC)	-14.00cm³
Compression height (CH)	32.00mm
Pin diameter	21mm
Features	Accepts Turbo and Nitrous; Full round piston skirt
Fits for	BMW M3 E46 - 3.2 S54B32

1.229,00 €

BMW M20 M50 M52 M54 S50 S54 King Racing Hauptlager Satz MB7039XPC-STD...

XP	XP

F7016U-PR	F7039L-PR

XP	XP

M7016U-PR	M5578L-PR

Quantity

1

6

Crankshaft

59.990 / 59.972

Housing

65.001 / 65.019

Max Wall

2.494

Max Length

24.940

19.901

Engines: BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (nur für Variante mit zwei Lagerschlössern), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

235,00 €

BMW M3 S54B32 Xtreme Performance 230 mm Keramik-Doppelscheibenkupplung...

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

Torque capacity 1800Nm
Kit contains everything you need for a successful installation + accessories
Push type billet alloy cover Low pedal effort
4140 Chromoly pressure & intermediate plates
Chromoly adapter ring
Low inertia
Serviceable components
SFI certified design

	Flat Diaphragm	Rolled Diaphragm
Clamping Force	1300kg	1300kg
Torque Rating	1800Nm	1800Nm
Bearing Contact Diameter	65mm	FLAT BEARING
Bearing Load (@ 48mm)	180kg	150kg
Release Travel Required	7mm	7mm
Assembly Mass (without flywheel)	8.30kg	8.30kg
Disc Set Static Mass	2.25kg	2.25kg
Friction Thickness New	8mm (0.315")	8mm (0.315")
Friction Thickness Worn	7.5mm (0.295")	7.5mm (0.295")
