| ENGINE BEARINGS | ||
 |

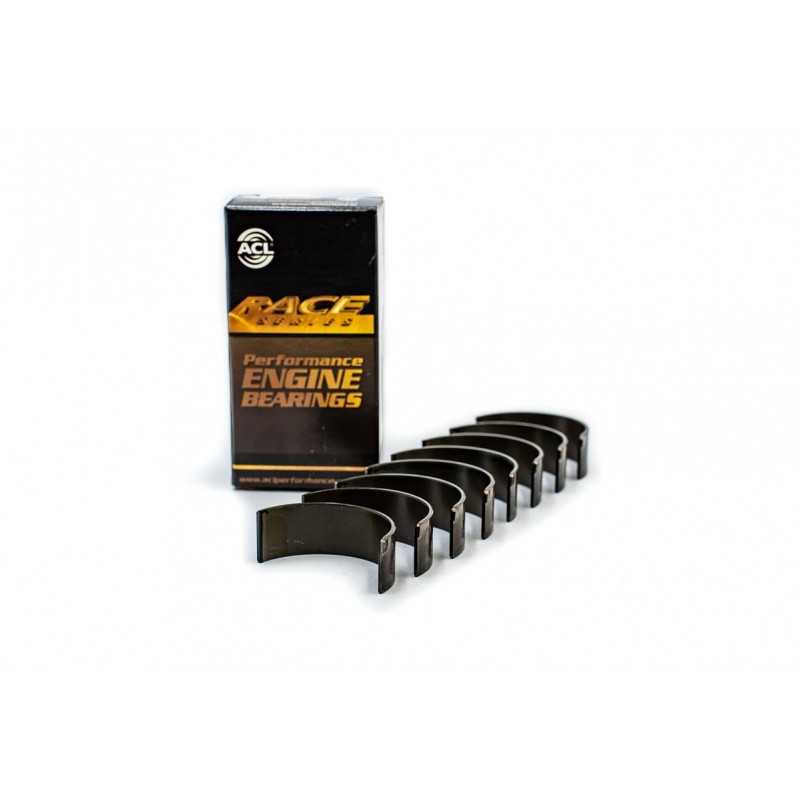

CON ROD BEARING SET |
|
| Part# | ||
| 4B2166H |
4B2166HX |
|

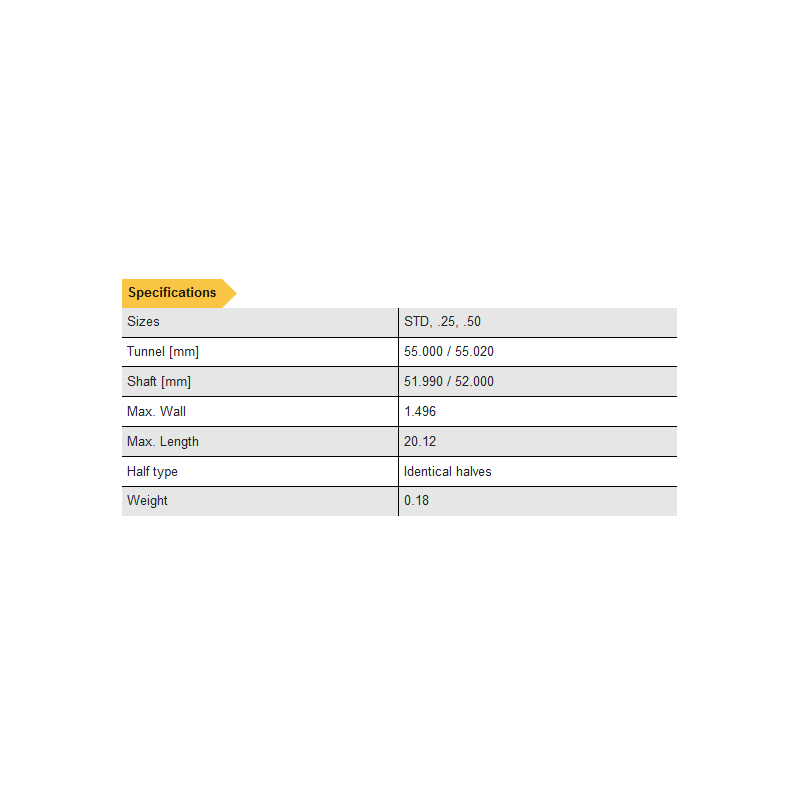

| Sizes | STD, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
2.0468 in / 51.990 mm |
|
| Max Std Shaft Size | 2.0472 in / 52.000 mm | |
| Min Std Tunnel Size | 2.1654 in / 55.000 mm | |
| Max Std Tunnel Size | 2.1661 in / 55.020 mm | |
| Max Wall at Crown | 0.0589 in / 1.496 mm | 0.0584 in / 1.483 mm |
| Max Overall Length |
0.792 in / 20.12 mm |
|
| Notes | ||
|

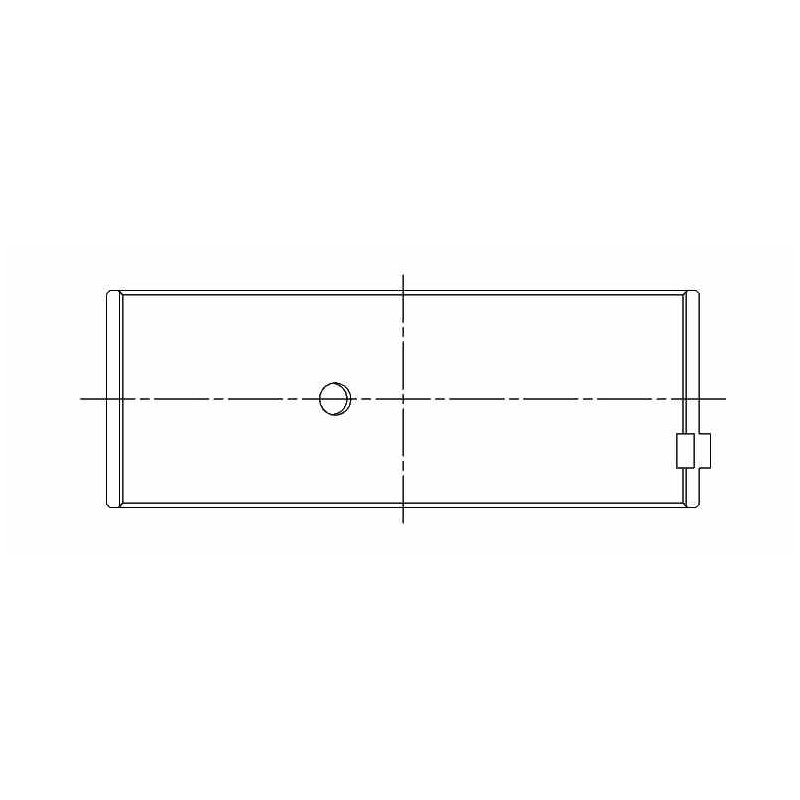

Diagram |
 |
|
