Prekės kodas 5M2167H-STD

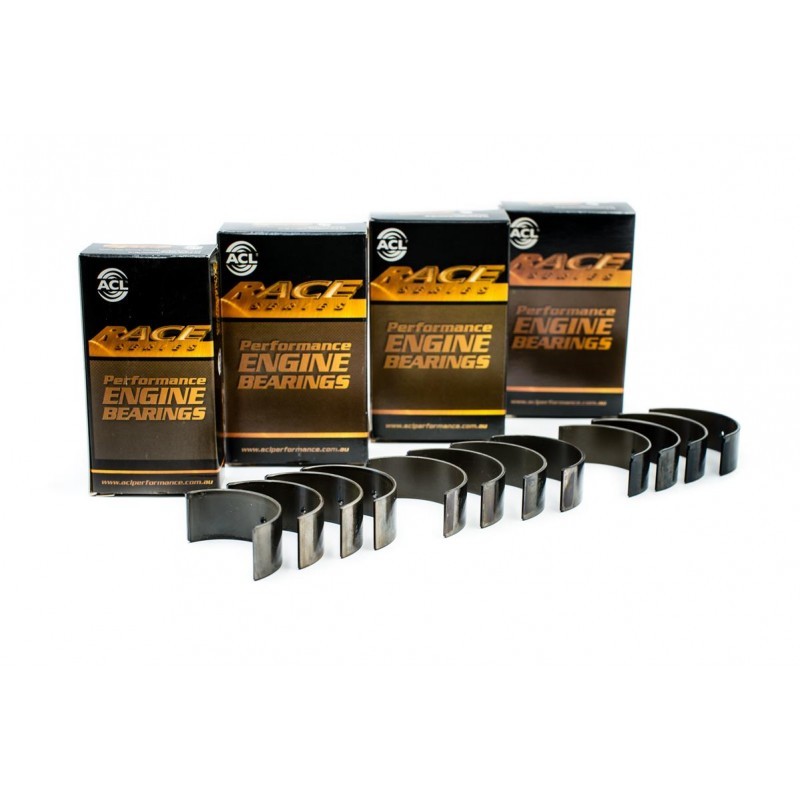

ACL Race Series pagrindiniai indėklai
Ford Sierra, Escort Cosworth - 2.0 16V (YB, N5)

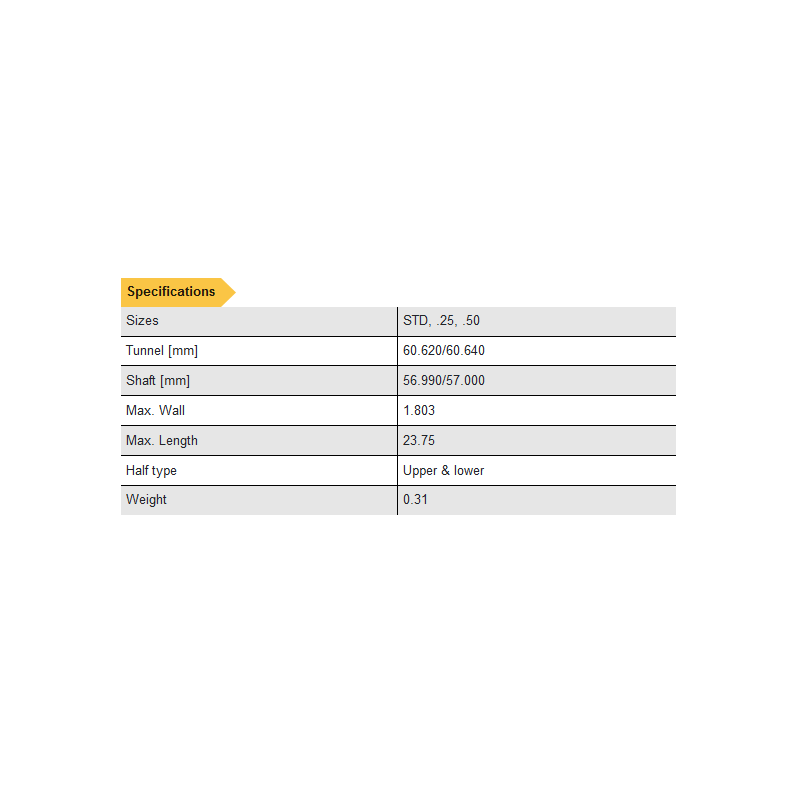

| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M2167H |
5M2167HX |
|
| Sizes | STD, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.2437 in / 56.990 mm |
|
| Max Std Shaft Size | 2.2441 in / 57.000mm | |
| Min Std Tunnel Size | 2.3866 in / 60.620 mm | |
| Max Std Tunnel Size | 2.3874 in / 60.640 mm | |
| Max Wall at Crown | 0.0710 in / 1.803 mm |
0.0705 in / 1.790 mm |
| Max Overall Length | 0.935 in / 23.75 mm | |
| Notes | ||
|

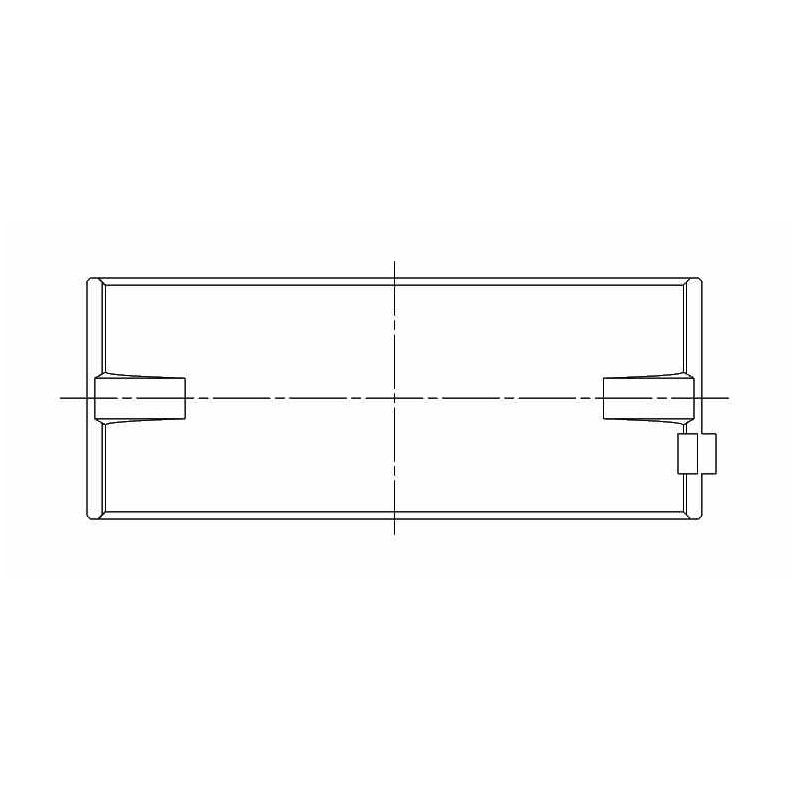

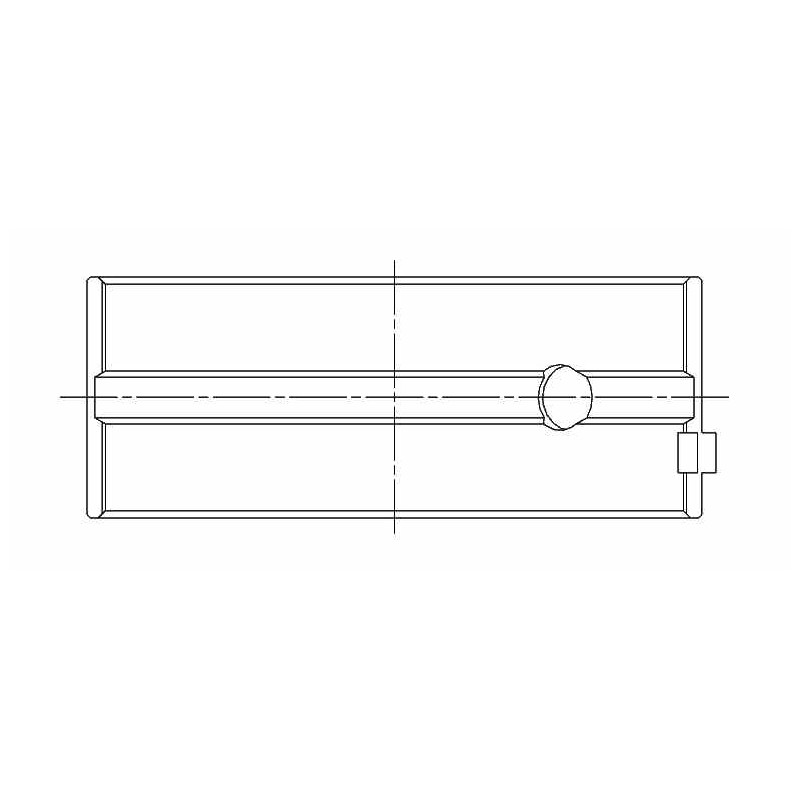

Diagram (Top View) |
 |
|
