Part number FCPRHA1444920-5

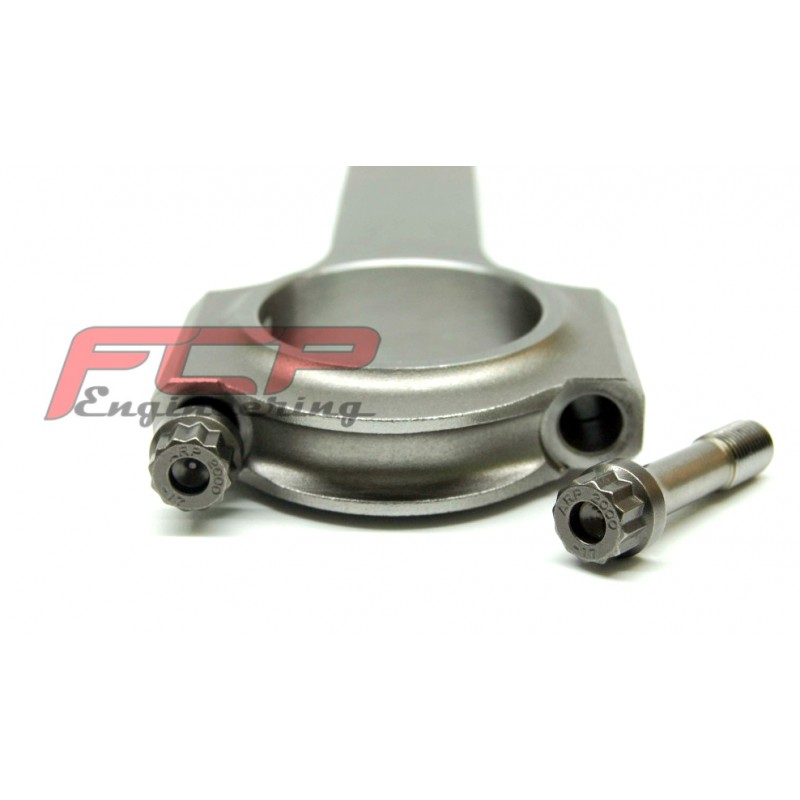

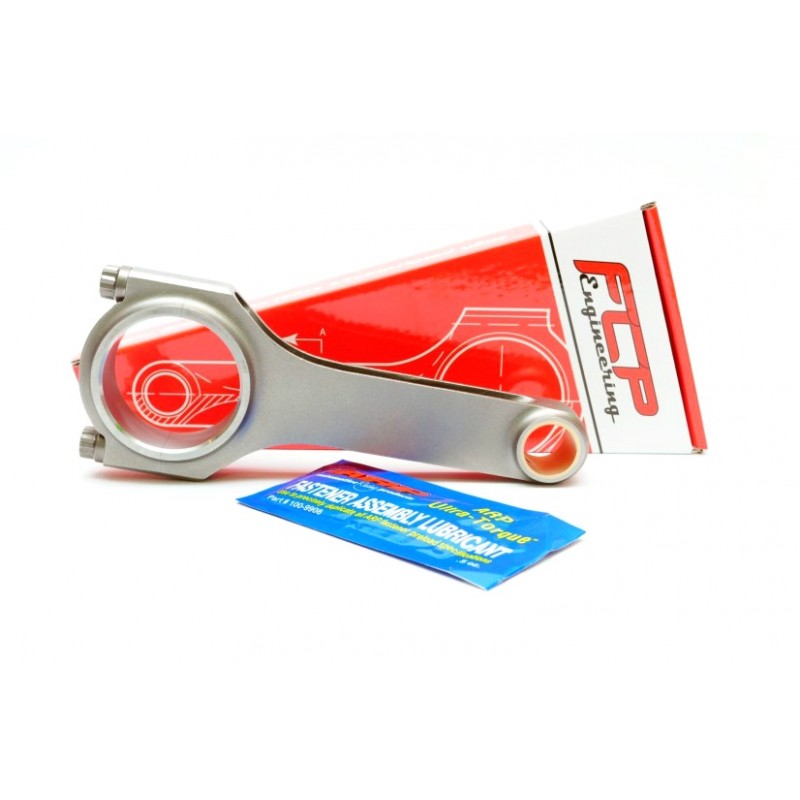

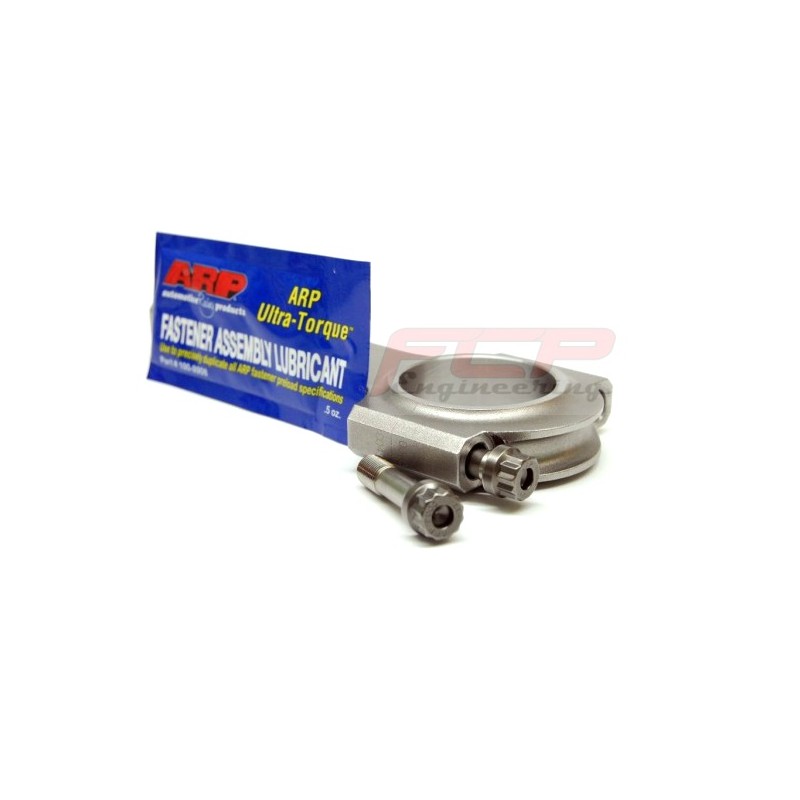

FCP Engineering H-beam steel connecting rods 144mm
Must be used with 2.2 10V, 2.3 10V N/A 46mm journal crankshaft!
Audi 90, Coupe - 2.3 20V (7A)
200, S2, RS2, S4, S6 - 2.2 20V Turbo (3B, ABY, ADU, AAN)
Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHA1444920-5
Profile: H-beam
C to C: 144mm
Big end diameter: 49.00mm
Pin diameter: 20mm
Quantity: 5 pcs., 10 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 700HP (5 cylinder)
Advertised RPM rating: 9000RPM
Audi 90, Coupe - 2.3 20V (7A)
200, S2, RS2, S4, S6 - 2.2 20V Turbo (3B, ABY, ADU, AAN)
Upper |
Lower |
Quantity |
Position |
Crankshaft |
Housing |
Max Length |
Max Wall |
|---|---|---|---|---|---|---|---|
AM  |
5 | 45.96 / 45.94 | 49.01 / 49.00 | 19.0 | 1.502 |
Part number: FCPPA815085/5
Manufacturer: FCP Engineering
Forged high performance pistons for various applications in nearly all engine types for racing and street use.
Made of 4032-T6, piston skirt is molibden coated.
Each set of pistons also includes rings and HD series pins.
Bore size: 81.50mm
Compression ratio (CR): 8.5:1
Compression height: 33.00 mm
Pin diameter: 20mm
Stroke: 86.40mm
Audi 200, S2, RS2, S4, S6 - 2.2 2.5 20V Turbo
Set includes:
1 crankcase gasket
1 crankshaft seal rear
1 crankshaft seal front
1 oil pump gasket
1 coolant pump gasket
etc.
