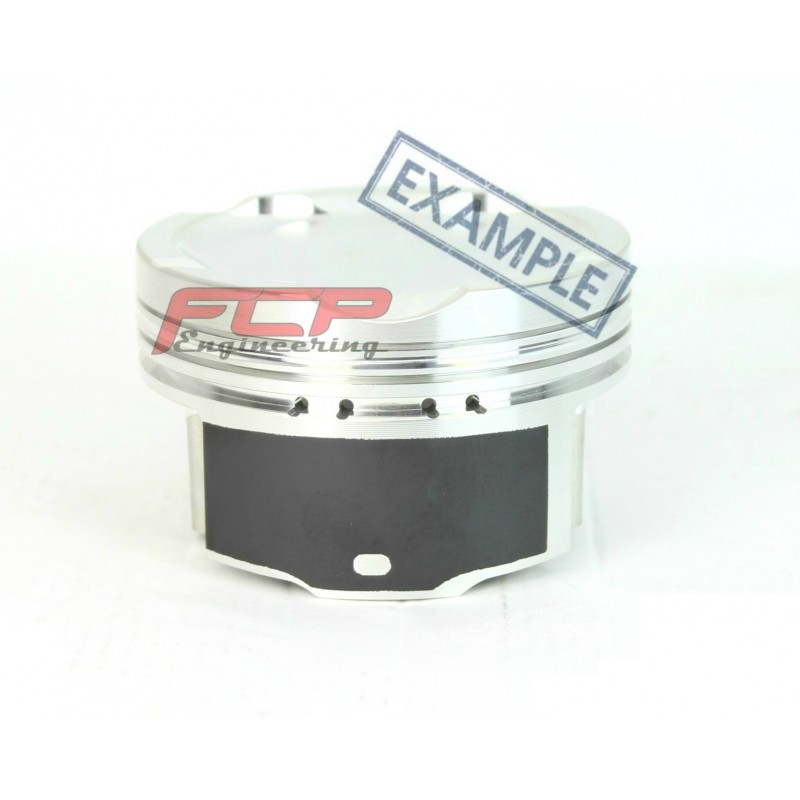

Audi TTRS 2.5 20V TFSI JE Pistons kit CR 9.5 83.50mm 337968

Audi TTRS 2.5 20V TFSI JE Pistons kit CR 9.5 83.50mm 337968

Part number 337968
JE Piston forged piston kit (5 pcs.) 83.50mm CR 9.5:1 with Perfect skirt coating
Audi TTRS - 2.5 20V Turbo (CEPA, CEPB)

€1,099.00

Availibilty:1 items

Information

Product detailed specification
Bore size	83.50mm
Stroke	92.80mm
JE Pistons compression ratio (CR)	9.5:1
OEM compression ratio (CR)	10.0:1
Dome volume (CC)	-8.80cm³
Compression height (CH)	29.60mm
Pin diameter	22mm
Features	Accepts Turbo and Nitrous; FSR Series coated skirt
Fits for	Audi TTRS 2.5 20V TFSI

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

Audi/VW CR4104XP 1.6 1.8 2.0 connecting rod bearings

Audi 2.2T 2.3 20V 3B AAN 7A King Racing connecting rod bearings CR505XP-STD

XP	XP

C4104-PR	C4104-PR

Quantity

Crankshaft

47.777 / 47.757

Housing

50.599 / 50.620

Max Wall

1.402

Max Length

18.971

Engines Audi 5 cylinder engines
2.2T, 2.3 20V (3B, AAN, ADU, ABY, 7A)

€99.00

Audi TT RS 2.5 20V TFSI ARP cylinder head stud kit 204-CEPA

ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.

€347.00

Audi TTRS RS3 2.5 20V TFSI FCP H-beam steel connecting rods 144mm/22mm for...

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHA14450622-5
Profile: H-beam
C to C: 144mm
Big end diameter: 50.6mm
Pin diameter: 22mm
Quantity: 5 pcs., 10 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 700HP (5 cylinder)
Advertised RPM rating: 9000RPM

€539.00

Audi TTRS 2.5 20V TFSI JE Pistons kit CR 9.5 83.50mm 337968
