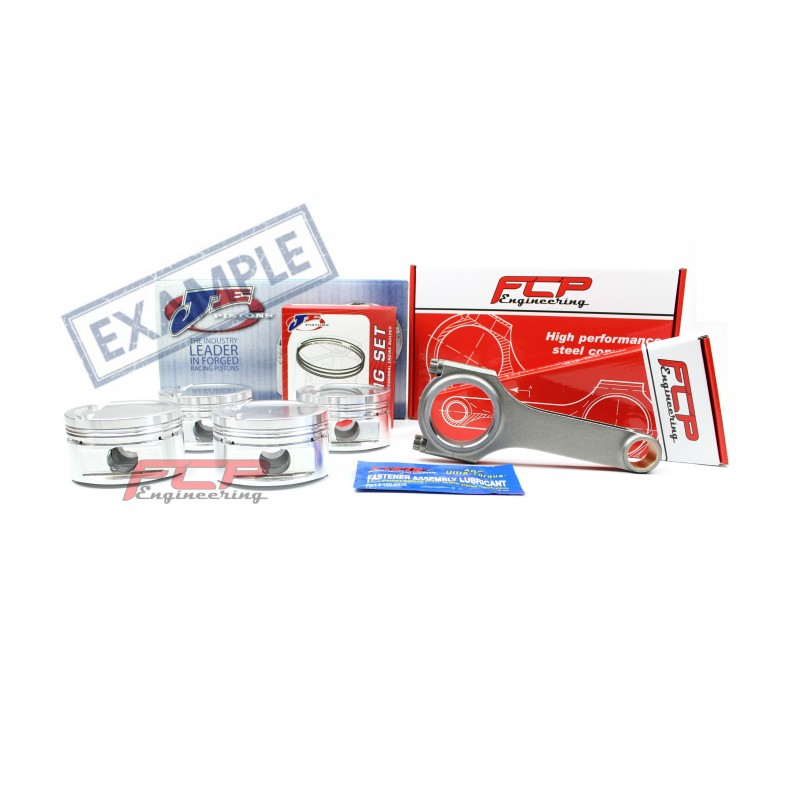

Connecting rods data:
Manufacturer: FCP Engineering
Model: FCPRHA15523-8
Profile: H-beam
C to C: 155mm
Pin diameter: 23mm
Quantity: 8 pcs., 16 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 1000HP (8 cylinder)
Advertised RPM rating: 9000RPM
Pistons data:
Manufacturer: JE Pistons
Bore size: 86.00mm
Compression ratio (CR): original
Pin diameter: 23mm
Dome volume: -0.8cc
CH: 30mm
Suitable for:
Audi RS6 C8 - 4.0 V8 TFSI
Lamborghini Urus 4.0 V8
Porsche Panamera Turbo 4.0 V8
