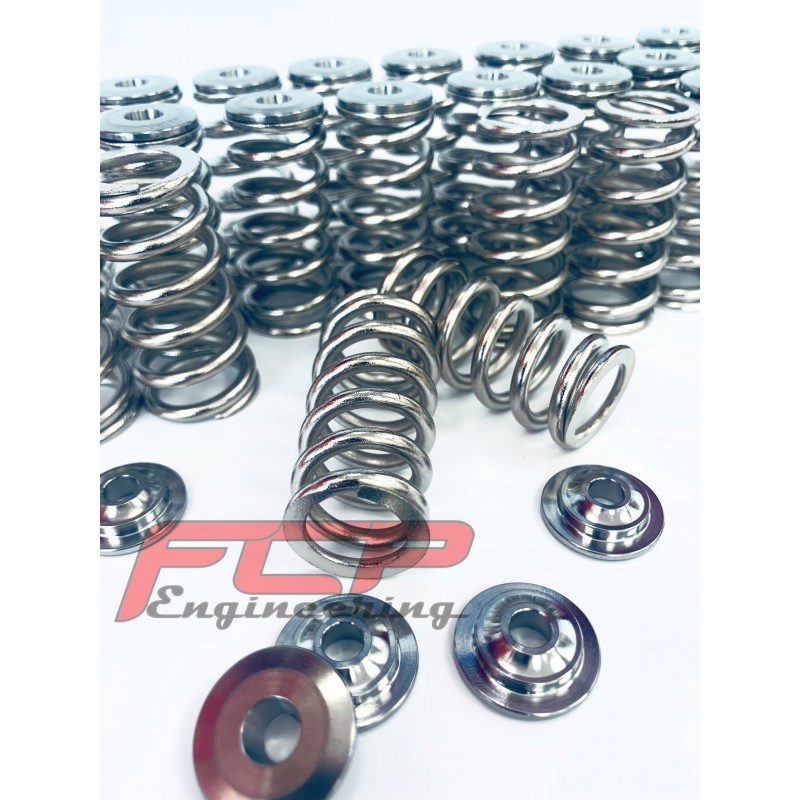

BMW 2.0 16V B48B20 FCP racing conical spring and retainer kit

Part number FCPVSTRBB48/16
FCP Engineering conical valve spring and titanium retainer kit
BMW - 2.0 16V Turbo (B48B20)

€539.00

Availibilty:2 items

Information

Valve springs data
Installed seat pressure - 34kg (75lbs)
Load - 63kg@10mm (140lbs@10mm)
Max lift - up to 12mm
Made from chrome-silicon steel SAE9254-V
BMW - 2.0 16V Turbo B48B20
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7500 RPM.
Kit includes:
16 pcs. conical valve springs
8 pcs. titanium retainers 5mm
8 pcs. titanium retainers 6mm

BMW 2.0 Turbo B48B20 FCP H-beam steel connecting rods 148mm

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHB14853622-4
Profile: H-beam
C to C: 148mm
Big end diameter: 53.6mm
Pin diameter: 22mm
Quantity: 4 pcs., 8 pcs. ARP2000 5/16" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 700HP (4 cylinder)
Advertised RPM rating: 9000RPM
BMW - 2.0 Turbo (B48B20) F30 320i, F30 330e, F20 120i, G30 520i, G30 530e, G01 X3 Xdrive20i, G20 320i

€439.00

BMW / Toyota B38 / B48 / B58 Supertech intake valve TIVN-1058 / MCIVN-1400S STD

Product detailed specification
Model number	TIVN-1058/MCIVN-1400S
Head diameter	30.10mm
Stem diameter	4.96mm
Length	99.50mm
Material	Black nitrided stainless steel
Fits for	BMW / Toyota - Supercharged B38 / B48 / B58

€34.00

BMW / Toyota B38 / B48 / B58 Supertech exhaust valve TEVI-1058-HS /...

Product detailed specification
Model number	TEVI-1058-HS/MCEVI-1400S-HS
Head diameter	30.10mm
Stem diameter	5.95mm
Length	100.10mm
Material	Sodium filled Inconel/Nimonic alloy
Fits for	BMW / Toyota - Supercharged B38 / B48 / B58

€69.00

BMW / Toyota B38 / B48 / B58 Supertech 6mm exhaust valve seal VSI-BM60-E

Supertech exhaust valve seals feature a special hi-temperature compound for improved durability.

€3.00

BMW / Mini 2.0 B48B20 / B48A20 JE Pistons kit CR 10.5 82mm 384914 / 371718

Product detailed specification
Bore size	82.00mm
Stroke	94.60mm
JE Pistons compression ratio (CR)	10.5:1
OEM compression ratio (CR)	10.2:1
Dome volume (CC)	-11.10cm³
Compression height (CH)	33.25mm
Pin diameter	22mm
Features	Accepts Turbo and Nitrous
Fits for	BMW / Mini - 2.0 Turbo (B48B20, B48A20)

€949.00

BMW / Toyota B38 / B48 / B58 Supertech 5mm intake valve seal VSI-BM50-I

€3.00

BMW / Mini 2.0 B48 Supertech valve spring kit SPRK-B48B

Seat pressure - 77lbs @ 40.10mm
Open (lift) pressure - 180lbs @ 10mm
Spring coil bind - 27.00mm
Rate - 10.30lbs/mm
Max lift - 12.20mm
Outer spring outer diameter: 26.50mm
Outer spring inner diameter: 18.70mm
Inner spring outer diameter: 21.60mm
Inner spring inner diameter: 13.80mm

Set includes:
Dual springs: 16 pcs. SPR-FE20BE
Titanium retainers: 8 pcs. RET-BMB48/TE and 8 pcs. RET-BMB48/TI

€689.00

BMW / Mini 2.0 B48B20 ACL Race Series connecting rod bearings 4B1510H-STD

€139.00

BMW / Mini 2.0 B48B20 ACL Race Series connecting rod bearings 4B1510H-0.25

€139.00

BMW / Mini 2.0 B48B20 ACL Race Series connecting rod bearings 4B1510H-0.025

€139.00
