Peugeot 2.0 8V 16V ACL Race Series connecting rod bearings 4B7700H-STD
Part number 4B7700H-STD

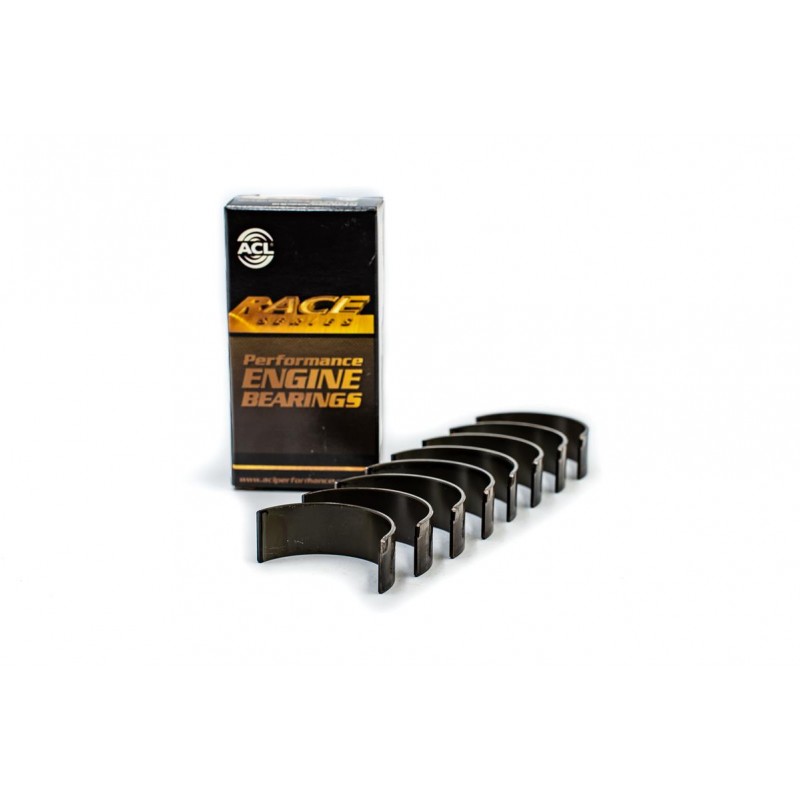

ACL Race Series connecting rod bearings
Peugeot:
1.9 XU92C, XU9S (SOHC 8 valves)
2.0 Liter XU102C, XU10J2, XU10J2TE, XU10M (SOHC 8 valves)
2.0 Liter XU10J4, XU10J4RS, XU10J4TE (DOHC 16 valves)
€89.00
Availibilty:0 items
Information

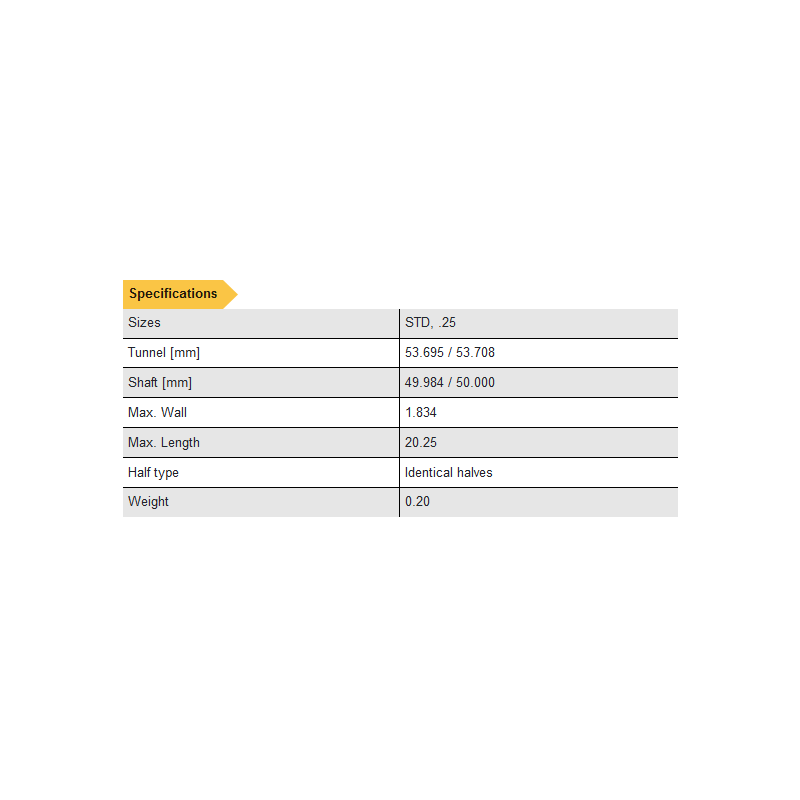

| ENGINE BEARINGS |
 |
CON ROD BEARING SET
|
| Part# |
4B7700H
|
|
| Sizes |
STD, .25 |
|
| Oil Clearance |
Standard |
|
| Half Type |
Identical Halves |
| Material |
Tri-metal Hardened steel backs
|
| Min Std Shaft Size |
1.9679 in / 49.984 mm
|
| Max Std Shaft Size |
1.9685 in / 50.000 mm |
| Min Std Tunnel Size |
2.1140 in / 53.695 mm |
| Max Std Tunnel Size |
2.1145 in / 53.708 mm |
| Max Wall at Crown |
0.0722 in / 1.834 mm |
|
| Max Overall Length |
0.797 in / 20.25 mm
|
|

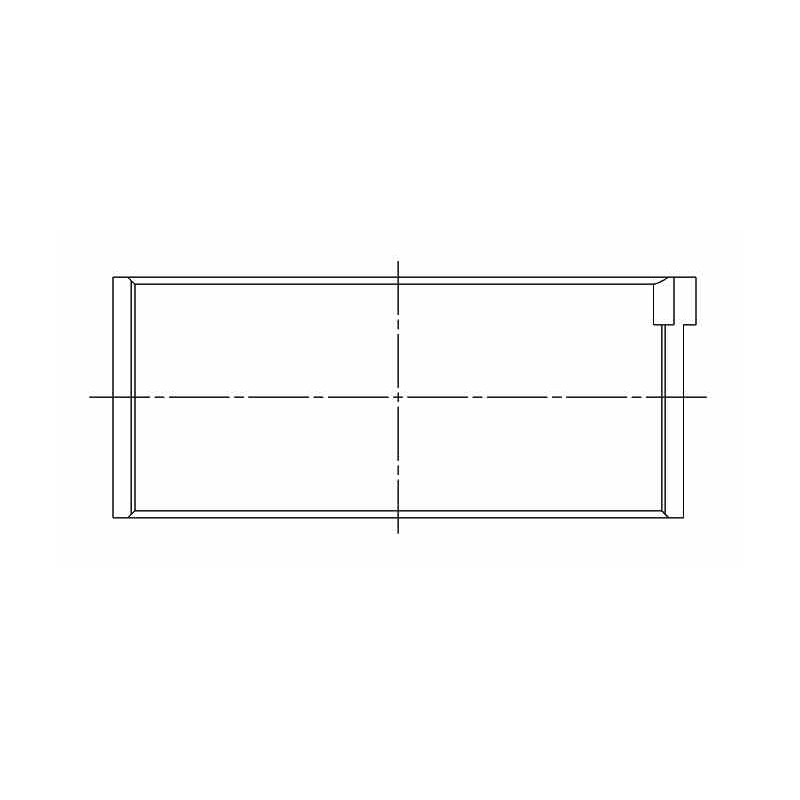

Diagram
(Top View)
|
|
Engines: Peugeot 4 cylinder 1.9 Liter XU92C, XU9S (SOHC 8 valves) 2.0 Liter XU102C, XU10J2, XU10J2TE, XU10M (SOHC 8 valves) 2.0 Liter XU10J4, XU10J4RS, XU10J4TE (DOHC 16 valves)
