Cometic BMW 2.5 2.8 3.0 M54 MLS cylinder head gasket 85x1.8mm C4352-070

BMW 2.5 2.8 3.0 M52B25 M52B28 M54B25 M54B30 87.60mm bore

BMW 2.5 2.8 3.0 M52 M54 Athena Cooper Ring cylinder head gasket 87.6x1.5mm...

Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
Part number: 330023R
Gasket thickness: 1.50mm
Bore size: 87.60mm

Part number starting with 330
Athena advantages
Reinforced material	Asbestos free composite raw material OE approved
Stainless steel ring (AISI304)	Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required
Silicon beading	Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages

€299.00

BMW BMEVI-1030S Standard 1.8/2.5/2.8/3.0 exhaust valves

BMW M42 M50 M52 M54, S42/S50/S52 USA Supertech exhaust valve BMEVI-1030S STD

Product detailed specification
Model number	BMEVI-1030S
Head diameter	30.50mm
Stem diameter	5.96mm
Length	105.65mm
Material	Inconel
Fits for	BMW - 1.8 2.5 2.8 3.0 (S42,M42,M50,S50,M52,S52,M54)

€42.00

BMW 2.5 2.8 3.0 M54 Athena Cooper Ring cylinder head gasket 86x1.5mm 330022R

Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).

Part number starting with 330
Athena advantages
Reinforced material	Asbestos free composite raw material OE approved
Stainless steel ring (AISI304)	Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required
Silicon beading	Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages

€299.00

BMW S50 S52 (USA) M50 M52 M54 Supertech valve springs set

BMW S50 S52 (USA) M50 M52 M54 Supertech valve spring set SPRK-H1005D-BM

Spring data:

Seat pressure - 94lbs @ 35.70mm
Open (lift) pressure - 209lbs @ 10mm
Spring coil bind - 20.70mm
Rate - 11.50lbs/mm
Max lift - 15.00mm
Outer spring outer diameter: 29.65mm
Outer spring inner diameter: 21.85mm
Inner spring outer diameter: 20.50mm
Inner spring inner diameter: 15.50mm

Set includes:

Dual springs: 24 pcs. SPR-H1005D-BM
Titanium retainers: 24 pcs. RET-AU5VE-T1
Seats: 24 pcs. SEAT-BM60

€965.00

BMW M54B30 ARP cylinder head stud kit 201-M54

ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.

€364.00

BMW M52 M54 Victor Reinz M10 cylinder head bolt kit 14-32101-01

Part number 14-32101-01
Victor Reinz cylinder head bolt kit (M10, Aluminum engine block)
BMW M52 M54

€35.00

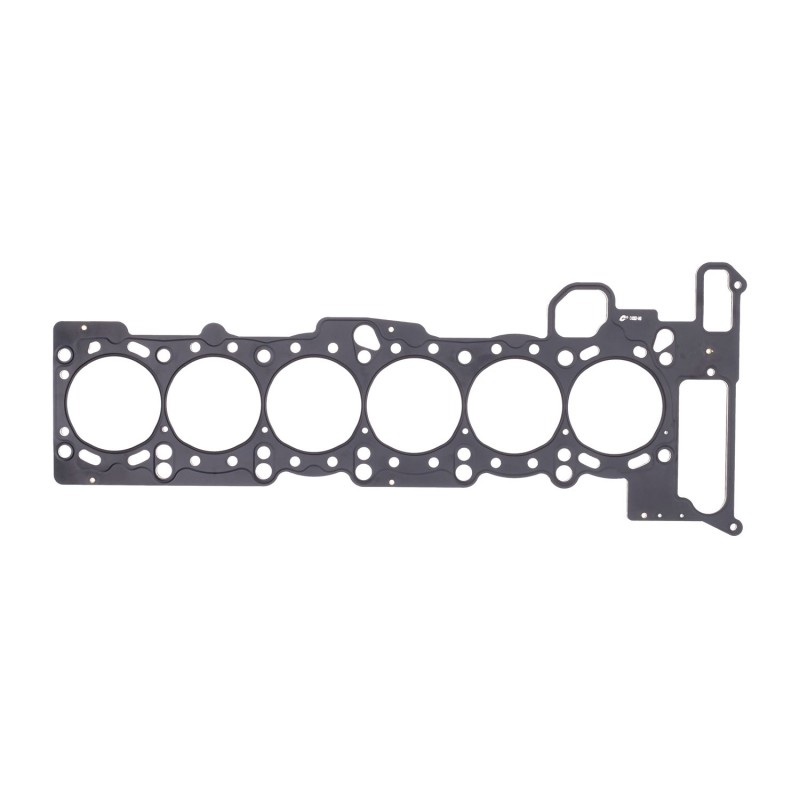

Cometic BMW 2.5 2.8 3.0 M54 MLS cylinder head gasket 85x2.5mm C4352-098

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

€325.00

Cometic BMW 2.5 2.8 3.0 M54 MLS cylinder head gasket 85x1.3mm C4352-051

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

€239.00

Cometic BMW 2.5 2.8 3.0 M54 MLS cylinder head gasket 85x2mm C4352-080

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

€325.00

Cometic BMW 2.5 2.8 3.0 M54 MLS cylinder head gasket 85x1.8mm C4352-070
