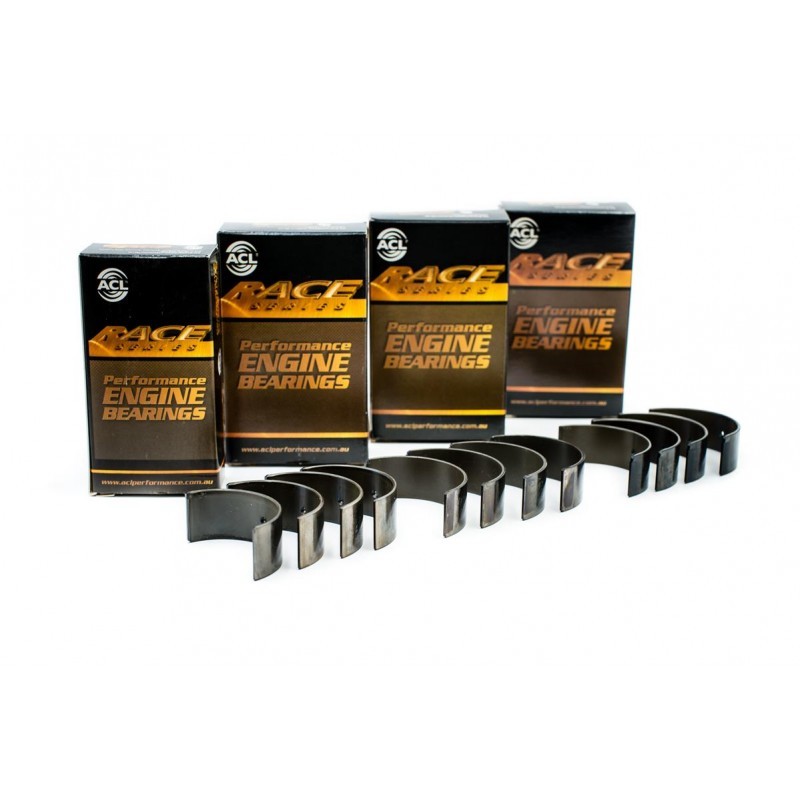

Mini Cooper S R56 1.6 Prince N12 N14 N16 N18 ACL Race Series main bearings 5M7788H-STD

Part number 5M7788H-STD
ACL Race Series main bearings
Mini Cooper S MKII, R56 - 1.6 Prince (N12, N13, N14, N16, N18)
Peugeot, Citroen - 1.6 Prince (EP6, EP6C, EP6DT, EP6DTS)

€175.00

Availibilty:3 items

Mini Cooper S MK2 R56 1.6 N12 N14 N16 N18 ARP cylinder head stud kit 201-4304

ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.

€311.00

Mini Cooper S (MKII / R56) 1.6 16V N12 N14 N18 FCP H-beam connecting rods...

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHMI138534820
Profile: H-beam
C to C: 138.53mm
Big end diameter: 48mm
Pin diameter: 20mm
Quantity: 4 pcs., 8 pcs. ARP2000 5/16" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 600HP (4 cylinder)
Advertised RPM rating: 9000RPM
Fits for "Prince" engine:
Citroen, Peugeot, Mini Cooper S (MKII / R56) - 1.6 16V Turbo (N12B16A, N14B16A, N18B16A/B/C)

€439.00

Mini Cooper S MKII 1.6 16V N12 N14 Wiseco pistons CR 10.1 77mm KE259M77

Product detailed specification
Bore size	77.00mm
Stroke	85.80mm
Wiseco compression ratio (CR)	10.1:1
OEM compression ratio (CR)	11.0:1/10.5:1
Dome volume (CC)	+1cm³
Compression height (CH)	28.50mm
Pin diameter	20mm
Features	Round piston skirt
Fits for	Mini Cooper S MKII - 1.6 16V (N12B16A, N14B16A)

Wiseco ArmorGlide skirt coating is a dry film lubricant applied to the piston skirt. This coating helps reduce friction, improving performance, and will also help quiet the piston in the cylinder bore. This coating is permanently applied, and is not a break in coating, it is on the piston for the life of the part.

€829.00

Mini Cooper S 1.6 Prince N12 N14 N16 N18 ACL Race connecting rod bearings...

€119.00

Mini Cooper R56 Prince engine Supertech valve spring set SPRK-MC56BE

Springs data:

Seat pressure - 70lbs @ 33.6mm
Open (lift) pressure - 163lbs @ 10mm
Spring coil bind - 22.20mm
Rate - 9.70lbs/mm
Max lift - 11.40mm
Outer diameter: 23.50mm/16.50mm
Inner diameter: 19.30mm/12.30mm

Set includes:
Beehive springs: 16 pcs. SPR-MC56BE
Titanium retainers: 16 pcs. RET-MC56/T1

€630.00

Mini Cooper S R56 1.6 Prince N12 N14 N16 N18 ACL thrust washers 1T7788-STD

€15.00

Mini Cooper S R56 1.6 Prince N12 N14 N16 N18 ACL Race Series main bearings 5M7788H-STD
