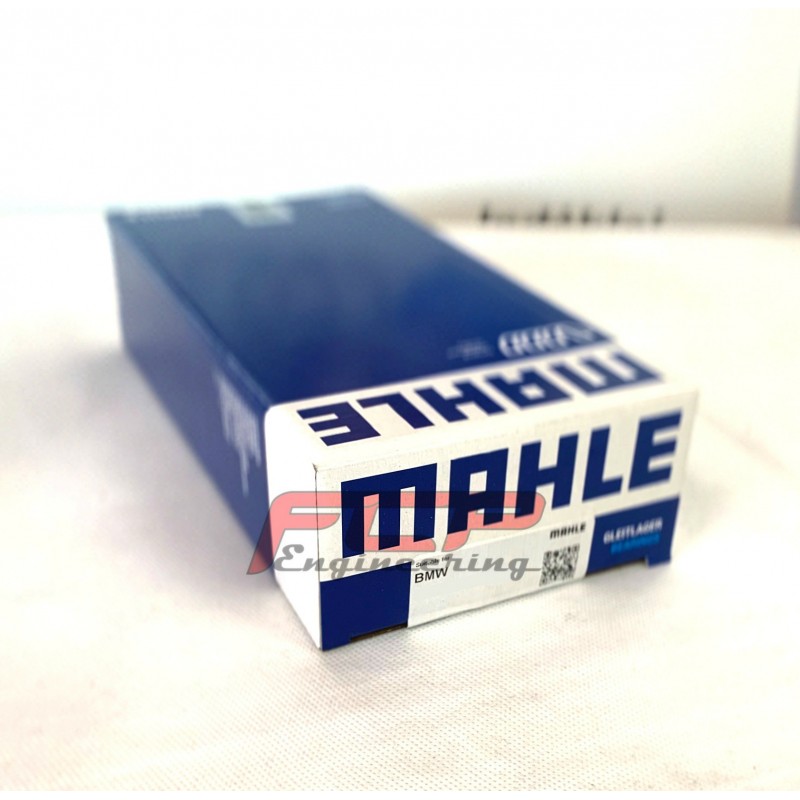

BMW 6 cylinder 2.3 2.5 3.0 N52 N53 N54 N55 S55 Mahle main bearings

Mahle Original main bearing kit.
Fits for BMW 2.3 2.5 3.0 engines N52, N53, N54, N55, S55.
1 (E81, E82, E87, E88, F20, F21)
2 (F22, F23, F87)
3 (E90, E91, E92, F30, F31, F80)
4 (F32, F33, F36, F82, F83)
5 (E60, F07, F10)
6 (E63, E64, F06, F12, F13)
7 (E65, E66, E67, F01, F02, F03, F04)
X1 (E84)
X3 (E83, F25)
X4 (F26)
X5 (E70, F15, F85)
X6 (E71, E72, F16, F86)
Z4 (E86, E85, E89)

€99.00

Availibilty:0 items

Notify me when available

Information

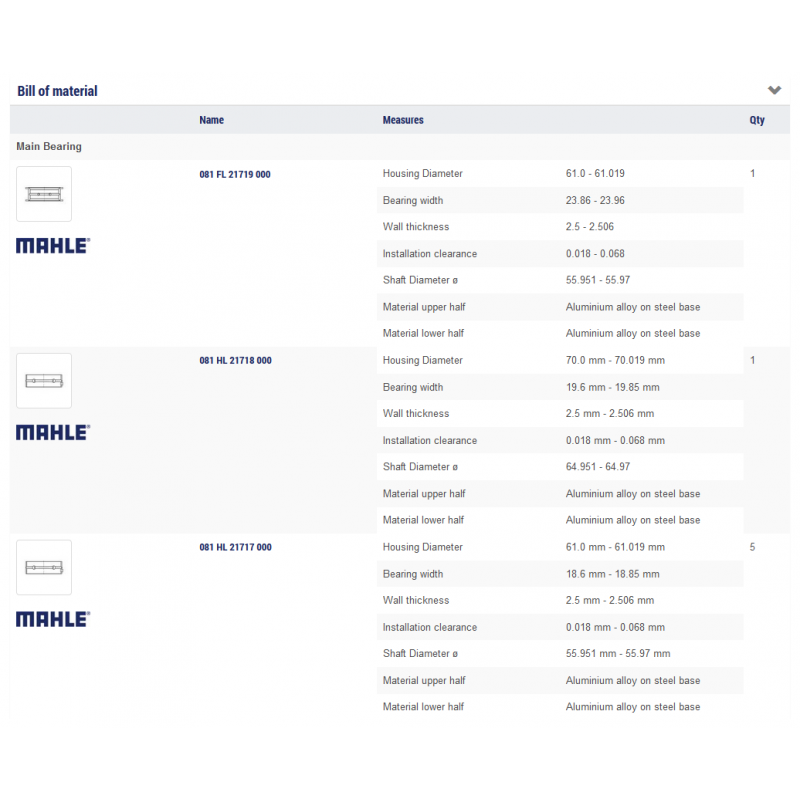

For bearing clearance from [mm]: 0,018
To bearing clearance [mm]: 0,068
For housing diameter from [mm]: 61,000
To housing diameter [mm]: 61,019
Width from [mm]: 23,86
Width to [mm]: 23,96
For wall thickness from [mm]: 2,500
To wall thickness [mm]: 2,506
For shaft diameter from [mm]: 55,951
To shaft diameter [mm]: 55,970

BMW 3.0 N54B30 / N55B30 / S55B30 Supertech conical spring kit SPRK-FE20N54-BE

Spring data:
Seat pressure - 75lbs @ 36.50mm
Open (lift) pressure - 155lbs @ 10.00mm
Spring coil bind - 23.20mm
Max lift - 12mm
Rate - 8 lbs./mm
Wide end spring outer diameter - 24.40mm
Wide end spring inner diameter - 17.60mm
Narrow end spring outer diameter - 21.00mm
Narrow end spring inner diameter - 14.30mm

Kit includes:
Single springs - 24 pcs. SPR-FE20N54-BE
Rretainers - 12 pcs. RET-BMN54-TI (5mm)
Retainers - 12 pcs. RET-BMN54-TE (6mm)

€1,149.00

BMW 3.0 N54B30 N55B30 S55B30 ACL Race connecting rod bearings 6B1584H-STD

€209.00

BMW 3.0 N54B30 N55B30 S55B30 ACL Race connecting rod bearings 6B1584HX-STD

€209.00

BMW 3.0 N54B30 N55B30 S55B30 ACL Race connecting rod bearings 6B1584H-0.25

€209.00

BMW 135i 335i N55B30 S55B30 FCP H-beam steel connecting rods 144.3mm for oem...

Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHB144353622T
Profile: H-beam
C to C: 144.3mm
Big end diameter: 53.6mm
Pin diameter: 22mm (Tapered small end)
Quantity: 6 pcs., 12 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 1000HP (6 cylinder)
Advertised RPM rating: 9000RPM
BMW 135i E82/E88, M135i F20, M235i F22/F23, 335i E90/E91/E92/E93, 335i F30/F31, 435i F32/F33/F36, 535i F10/F11, 640i F12/F13, 740i F01, X1 E84, X3 F25, X4 F26, X5 E70, X5 F15, X6 E71, X6 F16, 335 GT F34, 535 GT F07
Fits OEM pistons

€639.00

BMW 135i 335i N55B30 S55B30 FCP H-beam steel connecting rods 144.3mm for...

Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHB144353622
Profile: H-beam
C to C: 144.3mm
Big end diameter: 53.6mm
Pin diameter: 22mm
Quantity: 6 pcs., 12 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 1000HP (6 cylinder)
Advertised RPM rating: 9000RPM
BMW 135i E82/E88, M135i F20, M235i F22/F23, 335i E90/E91/E92/E93, 335i F30/F31, 435i F32/F33/F36, 535i F10/F11, 640i F12/F13, 740i F01, X1 E84, X3 F25, X4 F26, X5 E70, X5 F15, X6 E71, X6 F16, 335 GT F34, 535 GT F07
Fits aftermarket pistons

€639.00

BMW 6 cylinder 2.3 2.5 3.0 N52 N53 N54 N55 S55 Mahle main bearings
