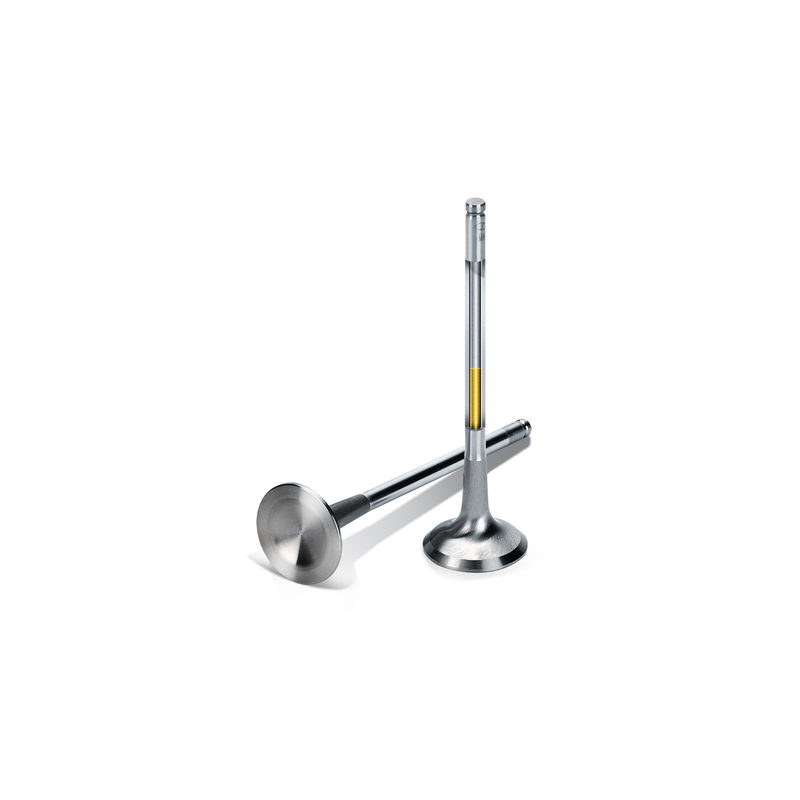

Part number BMEVI-1055S-HS (STD) Supertech sodium filled exhaust valve BMW E90, E91, E92, E93, E82, E88, E89, X6, Z4, F01 - 3.0 (N55B30, S55B30) Must be used with single groove keeper KPR-6S-7
Spring data: Seat pressure - 75lbs @ 36.50mm Open (lift) pressure - 155lbs @ 10.00mm Spring coil bind - 23.20mm Max lift - 12mm Rate - 8 lbs./mm Wide end spring outer diameter - 24.40mm Wide end spring inner diameter - 17.60mm Narrow end spring outer diameter - 21.00mm Narrow end spring inner diameter - 14.30mm
Ferrea Competition Plus Valves have built a reputation as the industry's most reliable extreme duty valve. To manufacture the valves we use special aerospace quality alloys, including the EV8-Z18, which provides high tensile strength. An exclusive two-step slow forging process ensures proper grain flow and virtually eliminates any damage to thematerial structure. The valves are then heat-treated and stress-relieved over a 48-hour period, which is the crucial base of our molecular integrity. These valves feature avionics-quality hard chrome along with a specially applied hard tip.
The Super Alloy Engine valves represent the highest level of sophistication in valve technology. These valves are designed to handle the extreme heat requirements and punishment of today’s Nitro Fuels, Supercharged, Turbocharged, Nitrous Oxide, and Marine race motors.
COMETIC MLX (Multi-Layer Stopper) gaskets utilize an integrated stopper layer for combustion chamber sealing and improved clamp load around the cylinder without increasing bore distortion. MLX technology can be found in some head gaskets and are made from the same materials as our MLS Head Gaskets. No sealants or re-torque required.
