BMW M3 E30 S14B20 ACL Race connecting rod bearings 4B1489HX-STD

Part number 4B1489HX-STD (+0.001" extra clearance)
ACL Race Series connecting rod bearings
BMW M3 E30 - 2.0 (S14B20)
Please check the measurements before placing order as you may need 4B1568HX bearings

€109.00

Availibilty:1 items

BMW M3 E30 S14B20 S14B203 S14B25 ACL Race connecting rod bearings 4B1568HX

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1568H	4B1568HX
Sizes	STD, .025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8888in / 47.975mm
Max Std Shaft Size	1.8894in / 47.9911mm
Min Std Tunnel Size	2.0472in / 52.000mm
Max Std Tunnel Size	2.0478in / 52.015mm
Max Wall at Crown	0.0785in / 1.993mm	0.0780in / 1.980mm
Max Overall Length	0.787in / 20.00mm
Notes	..

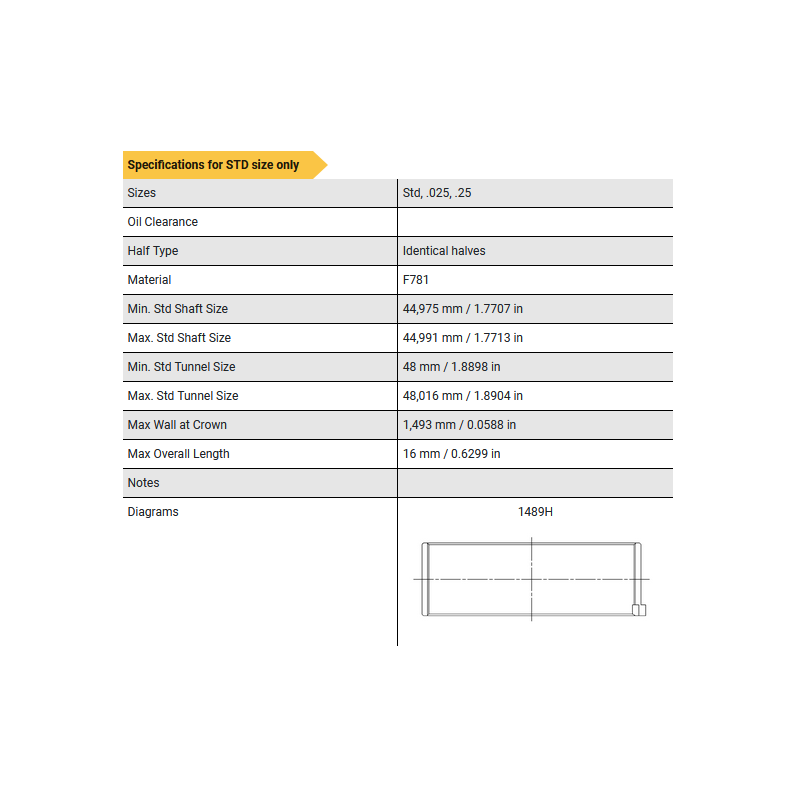

Diagram (Top View)

Engines BMW 2.0 2.3 2.5 (S14B20, S14B23, S14B25)
